HEADLAMP HOUSING

DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

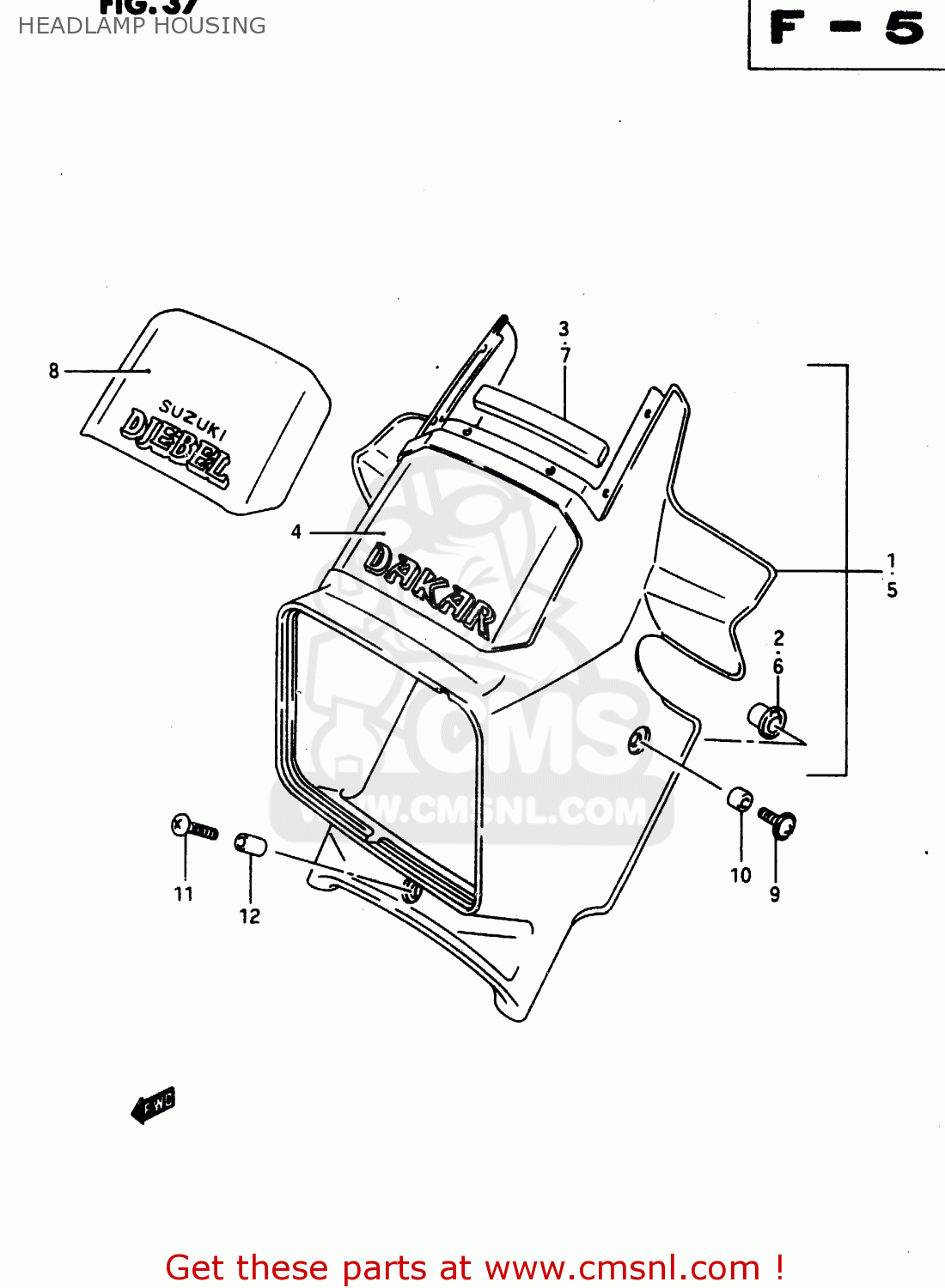

Headlamp housing diagram DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

HEADLAMP HOUSING DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)
HEADLAMP HOUSING DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)
HEADLAMP HOUSING DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1
5180015A6019X
ref: 1
COVER, HEADLAMP (WHITE)
€ 121.00
1
5180015A6014L
ref: 1
COVER, HEADLAMP (WHITE)
€ 121.00
2
5182115A0030H
ref: 2
BUSHING,HEADLAMP COVER,SIDE
5182115A0030H
€ 4.50
2
5182115A0014L
ref: 2
BUSH, SIDE (WHITE)
5182115A0014L
€ 4.50
3
5182715A00
ref: 3
CUSHION,HEADLAMP COVER
5182715A00
€ 8.00
4
6872514A303UE
ref: 4
FOR 19X
TAPE
€ 21.00
4
6872514A303UD
ref: 4
FOR 14L
TAPE
€ 21.00
5
5180015A5019X
ref: 5
E4, E34, E53
COVER, HEADLAMP (WHITE)
€ 121.00
5
5180015A5014L
ref: 5
E4, E34, E53
COVER, HEADLAMP (WHITE)
€ 121.00
6
5182115A0030H
ref: 6
E4, E34, E53
BUSHING,HEADLAMP COVER,SIDE
5182115A0030H
€ 4.50
6
5182115A0014L
ref: 6
E4, E34, E53
BUSH, SIDE (WHITE)
5182115A0014L
€ 4.50
7
5182715A00
ref: 7
E4, E34, E53
CUSHION,HEADLAMP COVER
5182715A00
€ 8.00
8
6872514A203UE
ref: 8
E4, E34, E53, FOR 19
TAPE
6872514A203UE
€ 22.50
8
6872514A203UD
ref: 8
E4, E34, E53, FOR 14
TAPE
€ 26.50
9
0913606061
ref: 9
SCREW(6X16)
0913606061
€ 3.00
10
0918006152
ref: 10
SPACER
0918006152
€ 3.00
11
0214206405
ref: 11
SCREW, LOWER
€ 2.00
12
0918006170
ref: 12
SPACER (6.1X9X31.5)
0918006170
€ 4.00
