CYLINDER

DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

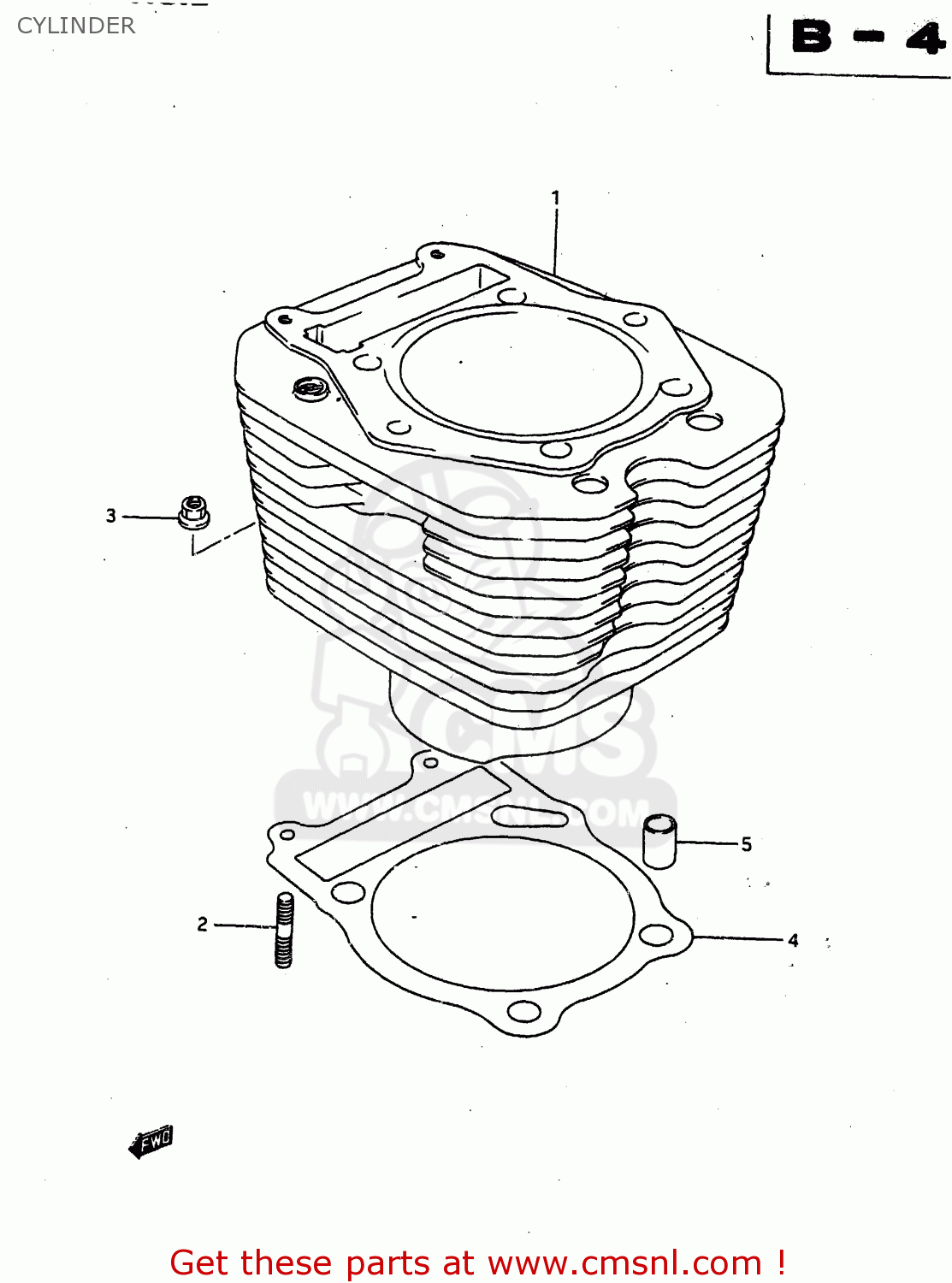

Cylinder diagram DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

CYLINDER DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

CYLINDER DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

prices are in EUR

ref

part #

description

quantity

1

1121012D100E0
ref: 1

CYLINDER

€ 606.50

2

0142106205
ref: 2

STUD BOLT L:20

€ 2.50

3

0831616064
ref: 3

NUT 6MM

€ 2.50

4

1124114A02H17
ref: 4

GASKET,CYLINDER (NAS)

€ 27.00

5

0920613001
ref: 5

PIN

€ 2.50
