HEADLAMP

DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

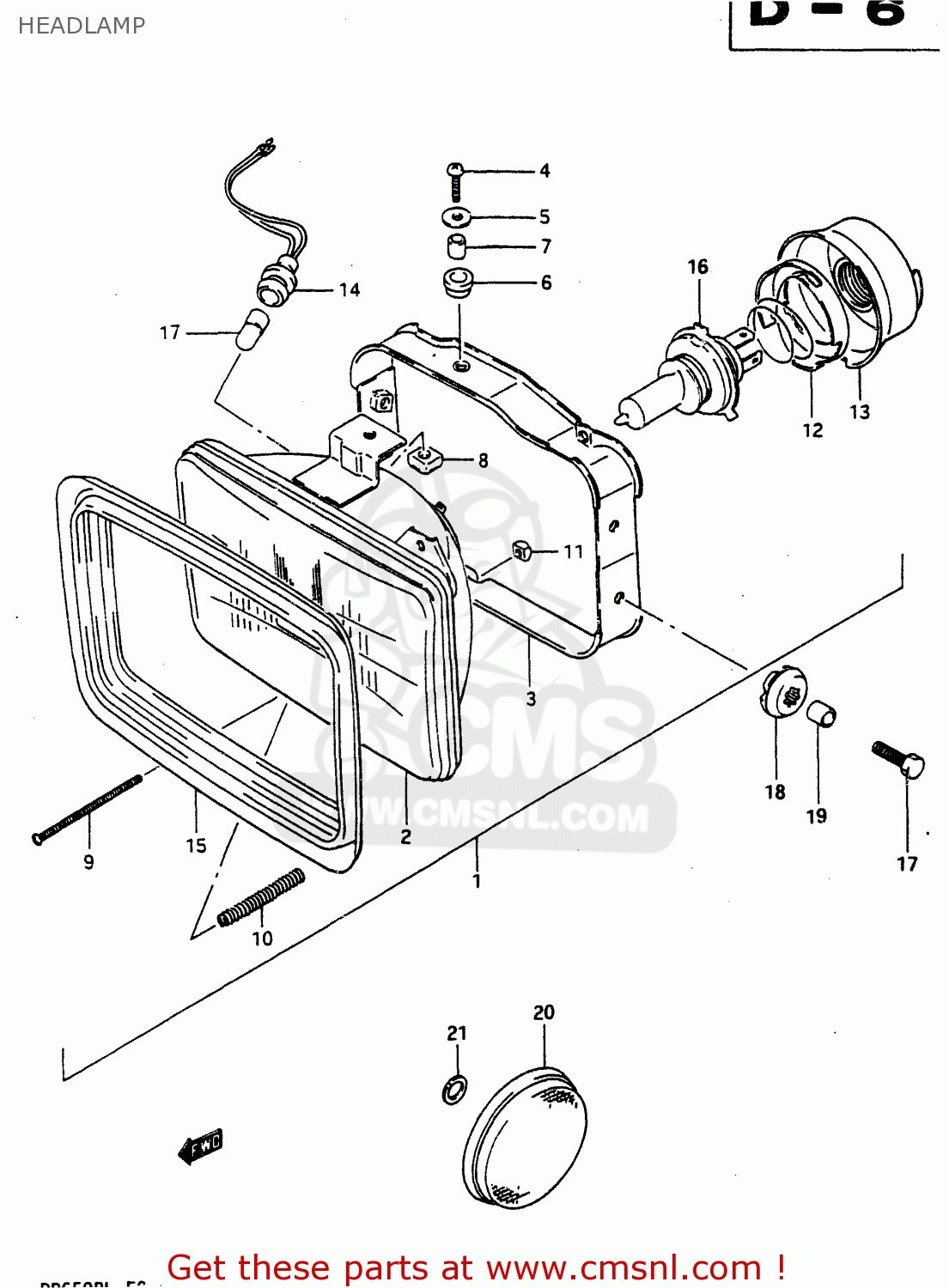

Headlamp diagram DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

HEADLAMP DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)
HEADLAMP DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)
HEADLAMP DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1
3510014C00999
ref: 1
HEADLAMP ASSY
€ 176.50
1
3510014C50999
ref: 1
E4, E15, E16, E17, E
HEADLAMP ASSY
€ 175.50
1
3510014C30999
ref: 1
E24
HEADLAMP ASSEMBLY
€ 180.50
2
3512114C00
ref: 2
UNIT
€ 102.00
2
3512114C50
ref: 2
E4, E15, E16, E17, E
UNIT
3512114C50
€ 102.00
2
3512114C30
ref: 2
E24
LAMP UNIT
€ 90.00
3
3514114A00
ref: 3
HOUSING
3514114A00
€ 31.00
4
3513845230
ref: 4
WASHER
3513845230
€ 2.00
5
3513945230
ref: 5
CUSHION
3513945230
€ 1.50
6
3513314A00
ref: 6
SPACER
3513314A00
€ 3.50
7
3513545900
ref: 7
NUT
3513545900
€ 2.50
8
3515149200
ref: 8
SCREW,HEADLAMP ADJUST
3515149200
€ 4.00
9
3515449200
ref: 9
SPRING
3515449200
€ 3.50
10
3513545600
ref: 10
NUT
3513545600
€ 3.00
11
3513601A00
ref: 11
HOLDER,BULB
3513601A00
€ 6.00
12
3517301440
ref: 12
COVER,SOCKET
3517301440
€ 10.00
13
3611845900
ref: 13
SOCKET,PARKING
3611845900
€ 13.00
14
3512914C00
ref: 14
SHADE
3512914C00
€ 20.00
15
0947112060
ref: 15
BULB(12V60/55W,H4)
0947112060
€ 8.00
15
0947112061
ref: 15
E4, EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
16
0947112001
ref: 16
E2
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
16
0947112063
ref: 16
E4, E15, E16, E17, E
BULB(12V4W)
0947112063
€ 6.00
17
0911606011
ref: 17
BOLT 6X20
€ 2.00
18
0932009009
ref: 18
CUSHION
0932009009
€ 5.00
19
0918006114
ref: 19
SPACER (6.1X9X10)
0918006114
€ 3.00
20
3595014A00
ref: 20
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
21
0832121057
ref: 21
E39
LOCK WASHER
0832121057
€ 2.00
