STAND - REAR BRAKE

DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

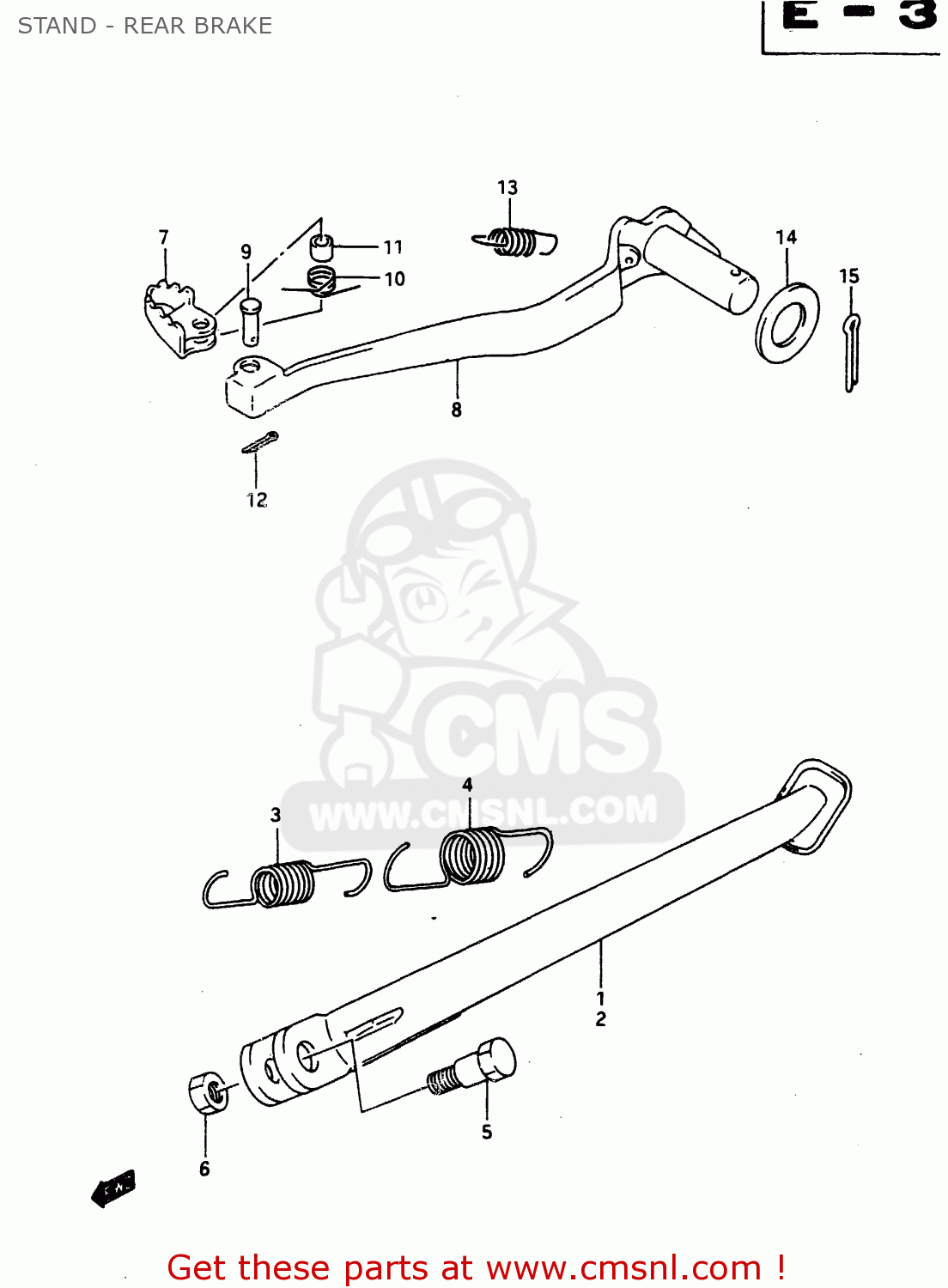

Stand - rear brake diagram DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

prices are in EUR

ref

part #

description

quantity

4231014A2129F
ref: 1

STAND, PROP (BROWN)

€ 662.50

4231014A2134S
ref: 2

STAND, PROP (BLUE)

€ 662.50

0944314030
ref: 3

SPRING

€ 6.00

0944322003
ref: 4

SPRING

€ 7.00

0911110047
ref: 5

BOLT(10X30)

€ 4.50

0831022107
ref: 6

NUT

€ 2.50

4311014130
ref: 7

PEDAL,BRAKE

€ 6.00

4312014C00
ref: 8

ARM COMP,BRAKE PEDAL

€ 51.50

0920006038
ref: 9

PIN

€ 2.00

0944411004
ref: 10

SPRING

€ 3.00

0918006137
ref: 11

SPACER(9.2X9X6.5)

€ 2.50

0411120158
ref: 12

PIN

€ 1.50

0944310033
ref: 13

SPRING

€ 3.50

0916017021
ref: 14

WASHER (17.6X34X2)

€ 2.00

0411130308
ref: 15

COTTER PIN

€ 1.50
