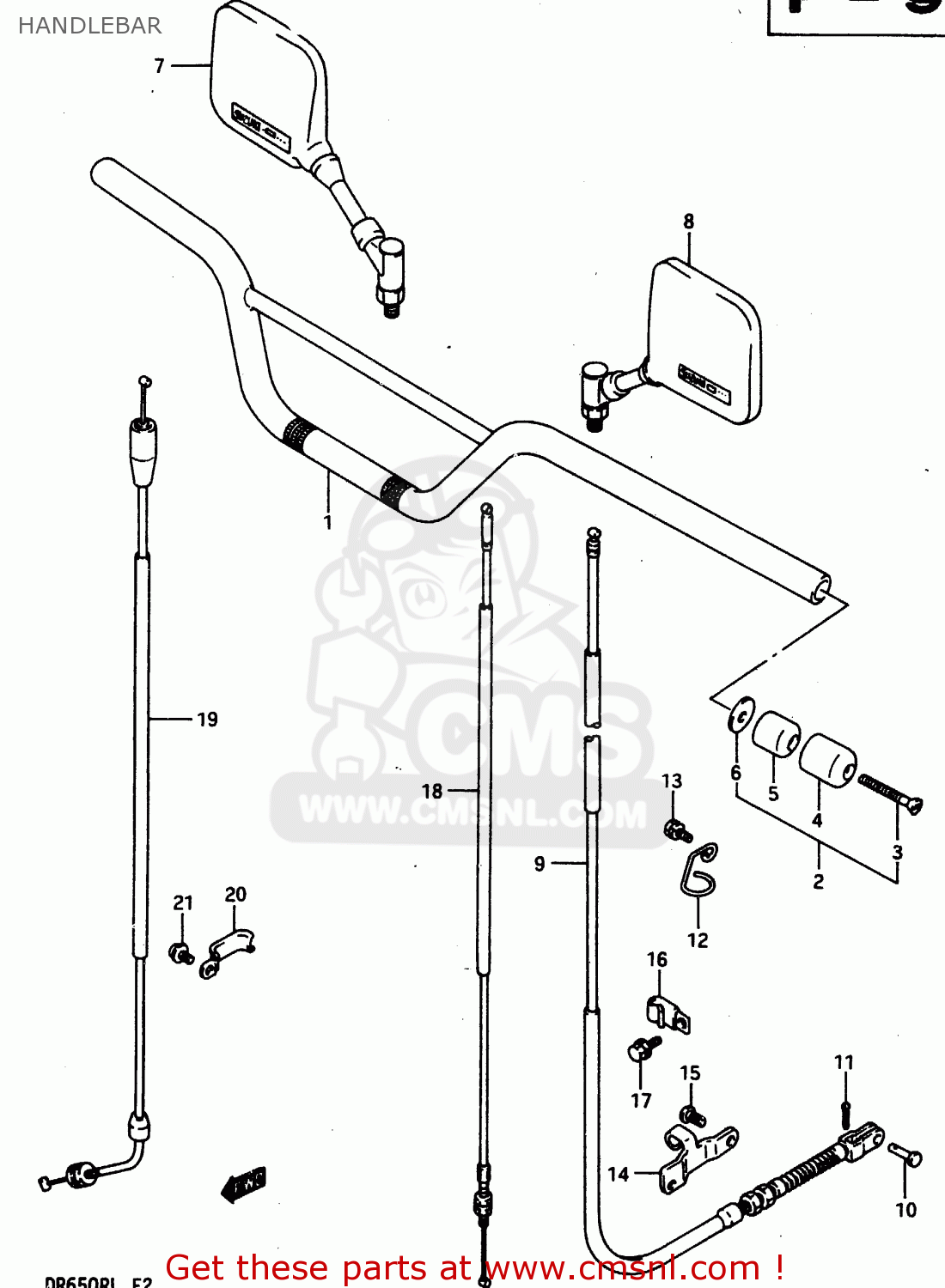

HANDLEBAR

ref

part #

description

quantity

1

5611012D00291
ref: 1

HANDLEBAR(BLACK)

€ 96.00

2

5620025810
ref: 2

BALANCER SET,HANDLEBAR

€ 87.00

3

0213206455
ref: 3

SCREW

€ 2.00

4

5627404700
ref: 4

CAP,BALANCER

€ 96.00

5

5627149410
ref: 5

BALANCER,HANDLEBAR

€ 14.50

6

5627534400
ref: 6

SPACER,BALANCER

€ 2.50

7

5650012D00
ref: 7

MIRROR ASSEMBLY,REAR VIEW

€ 101.50

7

5650012D10
ref: 7
E16, E24

MIRROR ASSY, REAR VIEW RH

€ 101.50

8

5660012D00
ref: 8

MIRROR ASSEMBLY,REAR VIEW

€ 102.50

8

5660012D10
ref: 8
E16, E24

MIRROR ASSY, REAR VIEW LH

€ 58.00

9

5820014A00
ref: 9

CABLE ASSY,CLUTCH

€ 36.00

10

0920006004
ref: 10

PIN(L:13)

€ 1.50

11

0411120158
ref: 11

PIN

€ 1.50

12

5862117200
ref: 12

GUIDE

€ 5.50

13

0113406125
ref: 13

BOLT ,6X12

€ 1.50

14

5863437410
ref: 14

STOPPER,CLUTCH CABLE

€ 4.50

15

0211206125
ref: 15

SCREW

€ 1.50

16

0940309301
ref: 16

CLAMP

€ 8.50

17

0111406125
ref: 17

BOLT

€ 2.50

18

5890014A00
ref: 18

CABLE ASSY,DECOMP

€ 23.00

19

5830012D00
ref: 19

CABLE ASSY,THROTTLE

€ 35.00

20

0940307309
ref: 20

CLAMP

€ 2.00

21

0215206125
ref: 21

SCREW

€ 1.50

all assemblies
