COWLING FITTING SET

DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

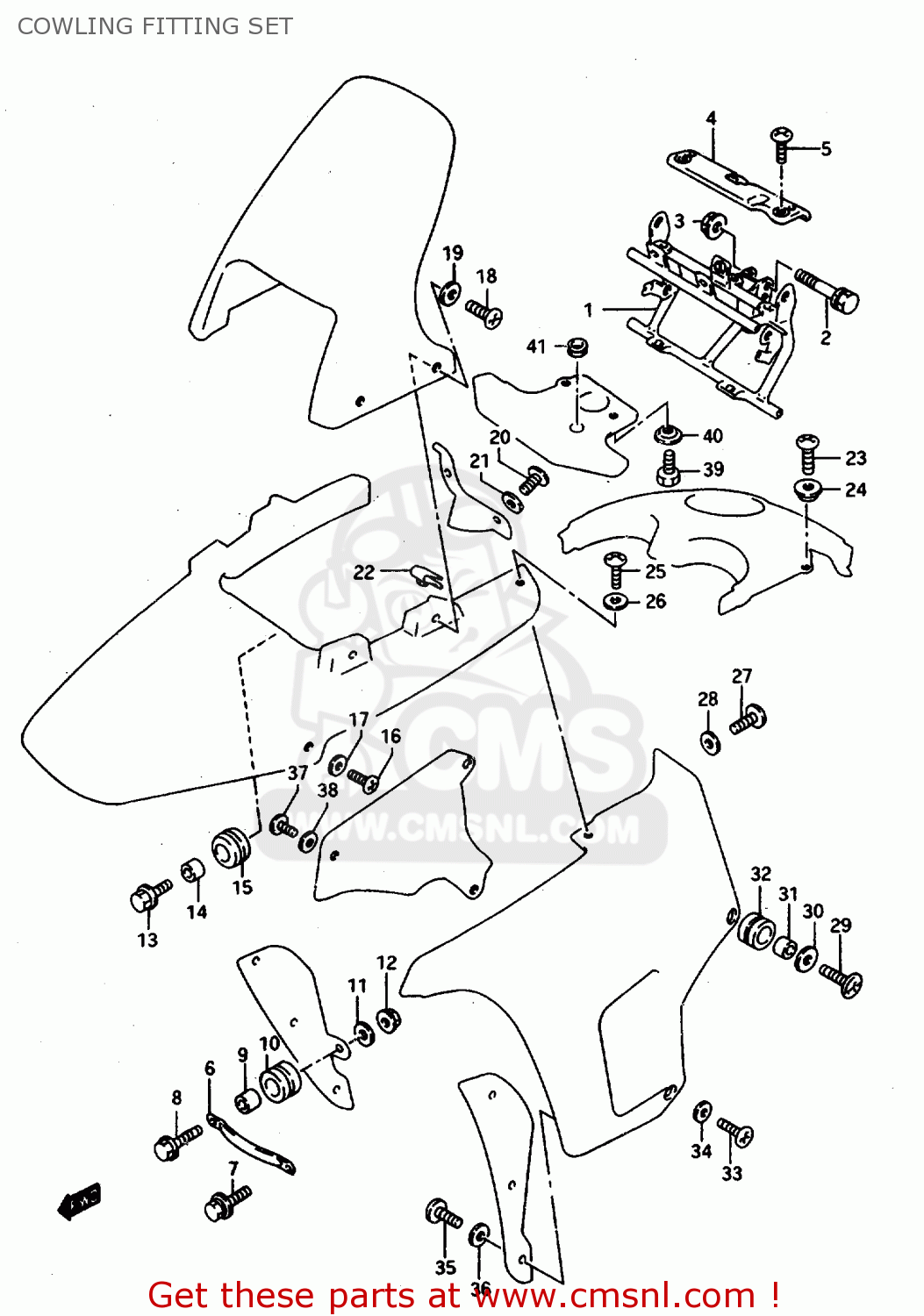

Cowling fitting set diagram DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

COWLING FITTING SET DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)
COWLING FITTING SET DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)
COWLING FITTING SET DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)
prices are in EUR
ref
part #
description
quantity
1
9451031D00
ref: 1
BRACE,COWLING
€ 184.00
2
0157008453
ref: 2
BOLT
0157008453
€ 3.00
3
0831320083
ref: 3
NUT
€ 2.50
4
9459331D01
ref: 4
COVER,COWLING BRACE
9459331D01
€ 19.00
5
0214206123
ref: 5
SCREW 6X12
0214206123
€ 2.00
6
9454131D00
ref: 6
BRACE,COWLING SIDE
€ 16.00
7
0158006163
ref: 7
BOLT
0158006163
€ 2.50
8
0155006203
ref: 8
BOLT
0155006203
€ 2.50
9
0918006038
ref: 9
SPACER(6.1X9X7.5)
0918006038
€ 2.00
10
0932008021
ref: 10
CUSHION
0932008021
€ 4.00
11
0916006088
ref: 11
WASHER(6.5X20X1.6)
0916006088
€ 2.00
12
0831931065
ref: 12
NUT
0831931065
€ 2.50
13
0911606093
ref: 13
BOLT(6X25)
0911606093
€ 2.00
14
0918006307
ref: 14
SPACER(6.5X9X10)
0918006307
€ 3.00
15
0932008047
ref: 15
CUSHION
0932008047
€ 4.00
16
0913905044
ref: 16
SCREW(5X16)
0913905044
€ 5.00
17
0916107009
ref: 17
WASHER(7X13X0.6)
0916107009
€ 3.00
18
0913905022
ref: 18
SCREW
0913905022
€ 2.50
19
0916105010
ref: 19
WASHER(5.2X11X1)
0916105010
€ 2.00
20
0913905021
ref: 20
SCREW(5X12)
0913905021
€ 2.00
21
0916005037
ref: 21
WASHER(5.5X16X1.2)
0916005037
€ 1.50
22
9448432B00
ref: 22
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
23
0913905021
ref: 23
SCREW(5X12)
0913905021
€ 2.00
24
0916105017
ref: 24
WASHER(5.2X14X1.5)
0916105017
€ 3.00
25
0913905044
ref: 25
SCREW(5X16)
0913905044
€ 5.00
26
0916107009
ref: 26
WASHER(7X13X0.6)
0916107009
€ 3.00
27
0913905044
ref: 27
SCREW(5X16)
0913905044
€ 5.00
28
0916007015
ref: 28
WASHER
€ 2.50
29
0913906050
ref: 29
SCREW(6X20)
0913906050
€ 5.00
30
0916006056
ref: 30
WASHER(6.5X18X1)
0916006056
€ 2.00
31
0918006307
ref: 31
SPACER(6.5X9X10)
0918006307
€ 3.00
32
0932009016
ref: 32
CUSHION
0932009016
€ 2.50
33
0913905025
ref: 33
SCREW(5X14)
0913905025
€ 2.00
34
0916105017
ref: 34
WASHER(5.2X14X1.5)
0916105017
€ 3.00
35
0214205103
ref: 35
SCREW
0214205103
€ 2.50
36
0916005037
ref: 36
WASHER(5.5X16X1.2)
0916005037
€ 1.50
37
0214205103
ref: 37
SCREW
0214205103
€ 2.50
38
0916005037
ref: 38
WASHER(5.5X16X1.2)
0916005037
€ 1.50
39
0150006163
ref: 39
BOLT
0150006163
€ 2.00
40
0916906071
ref: 40
WASHER
0916906071
€ 2.50
41
0930816006
ref: 41
GROMMET
0930816006
€ 3.00
