RIGHT HANDLE LEVER

DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

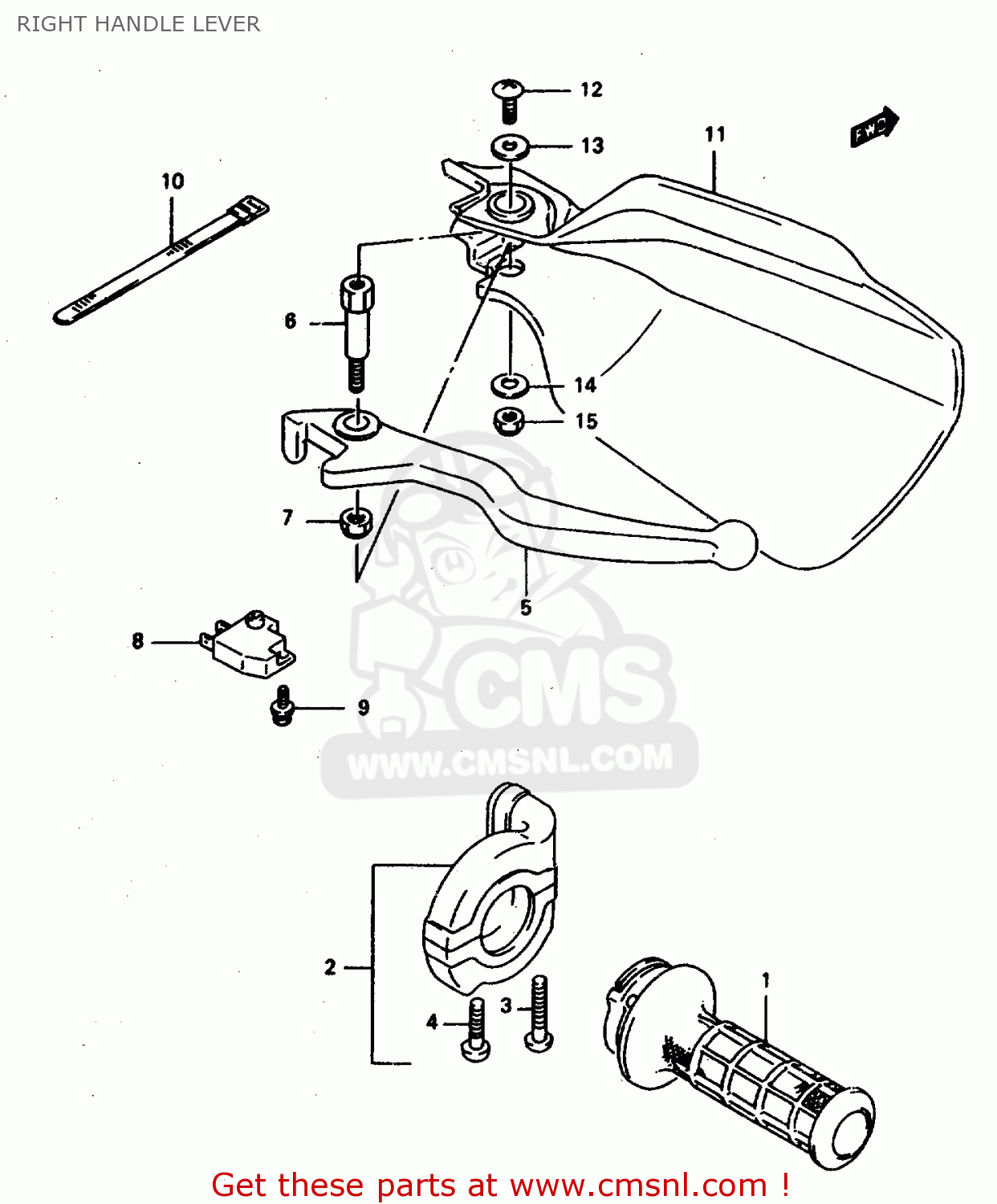

Right handle lever diagram DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

prices are in EUR

ref

part #

description

quantity

5711012D11
ref: 1

GRIP,THROTTLE

€ 25.50

5710014D00
ref: 2

CASE ASSY,THROTTLE

€ 24.00

0912505066
ref: 3

SCREW(5X25)

€ 2.00

0211205203
ref: 4

SCREW

€ 2.50

5742113001
ref: 5

LEVER,BRAKE

€ 18.00

5743105D00
ref: 6

BOLT,BRAKE LEVER PIVOT

€ 9.00

0831921065
ref: 7

NUT

€ 2.50

5746017C00
ref: 8

SWITCH ASSEMBLY,STOP

€ 32.50

5746517C00
ref: 9

SCREW

€ 1.50

0940712402
ref: 10

CLAMP(L:120)

€ 3.00

5734105D00019
ref: 11

COVER,KNUCKLE,RIGHT

€ 21.00

0214205107
ref: 12

SCREW

€ 2.50

0916005017
ref: 13

WASHER (5.5X16X1.2)

€ 2.50

0916006042
ref: 14

WASHER (6.5X17X1.6)

€ 2.00

0831921068
ref: 15

NUT 6MM

€ 2.00
