SPORT CARRIER

DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

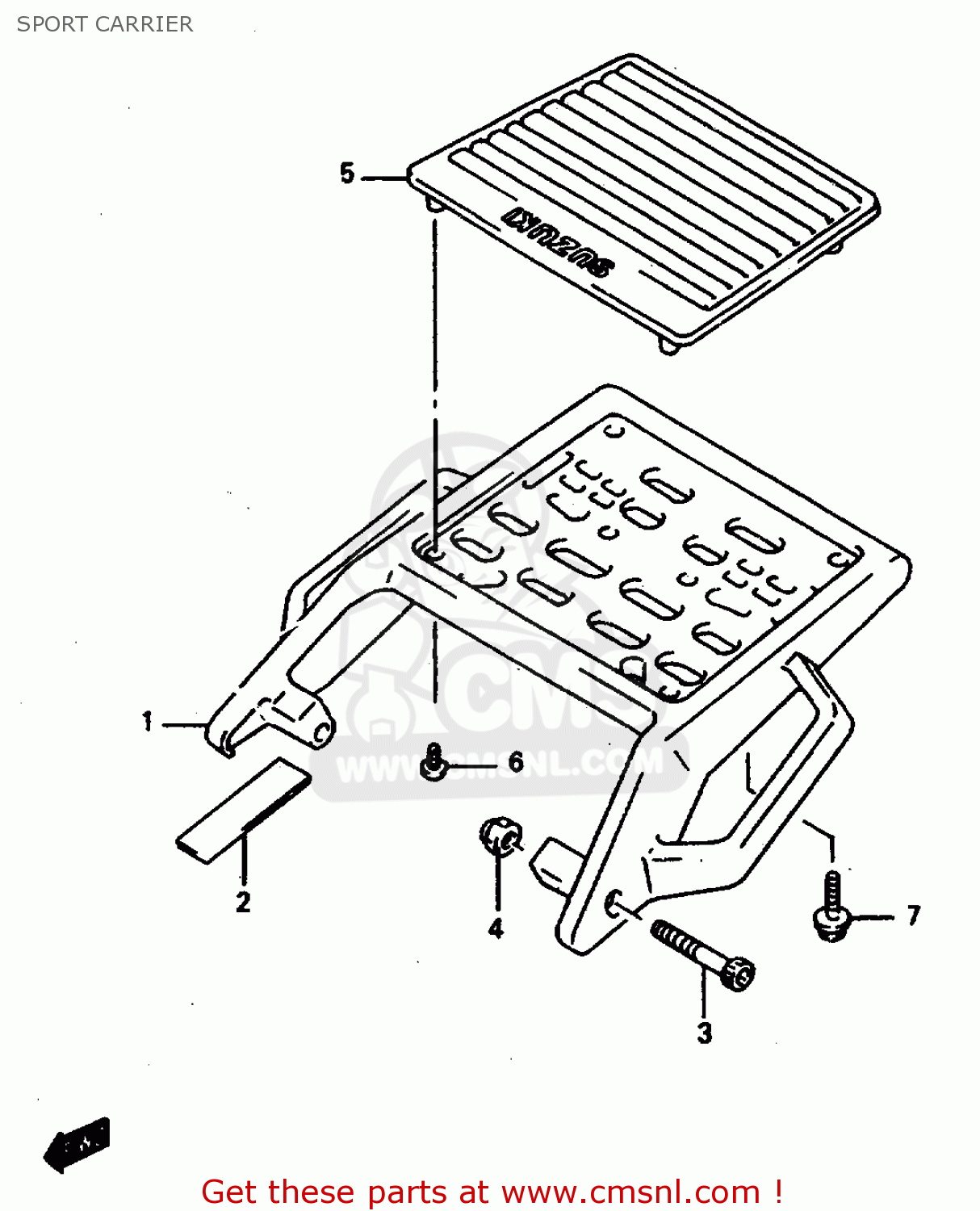

Sport carrier diagram DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

SPORT CARRIER DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

SPORT CARRIER DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

prices are in EUR

ref

part #

description

quantity

1

4631031D1113L
ref: 1

CARRIER,SPORT

€ 198.00

2

4631231D11
ref: 2

CUSHION,FR

€ 3.50

3

0713008557
ref: 3

BOLT

€ 3.50

4

0831931087
ref: 4

NUT

€ 2.50

5

4632131D10
ref: 5

MAT,SP.CARRIER

€ 25.00

6

0913605034
ref: 6

SCREW(5X16)

€ 2.00

7

0155006253
ref: 7

BOLT

€ 2.50
