REAR FENDER

DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

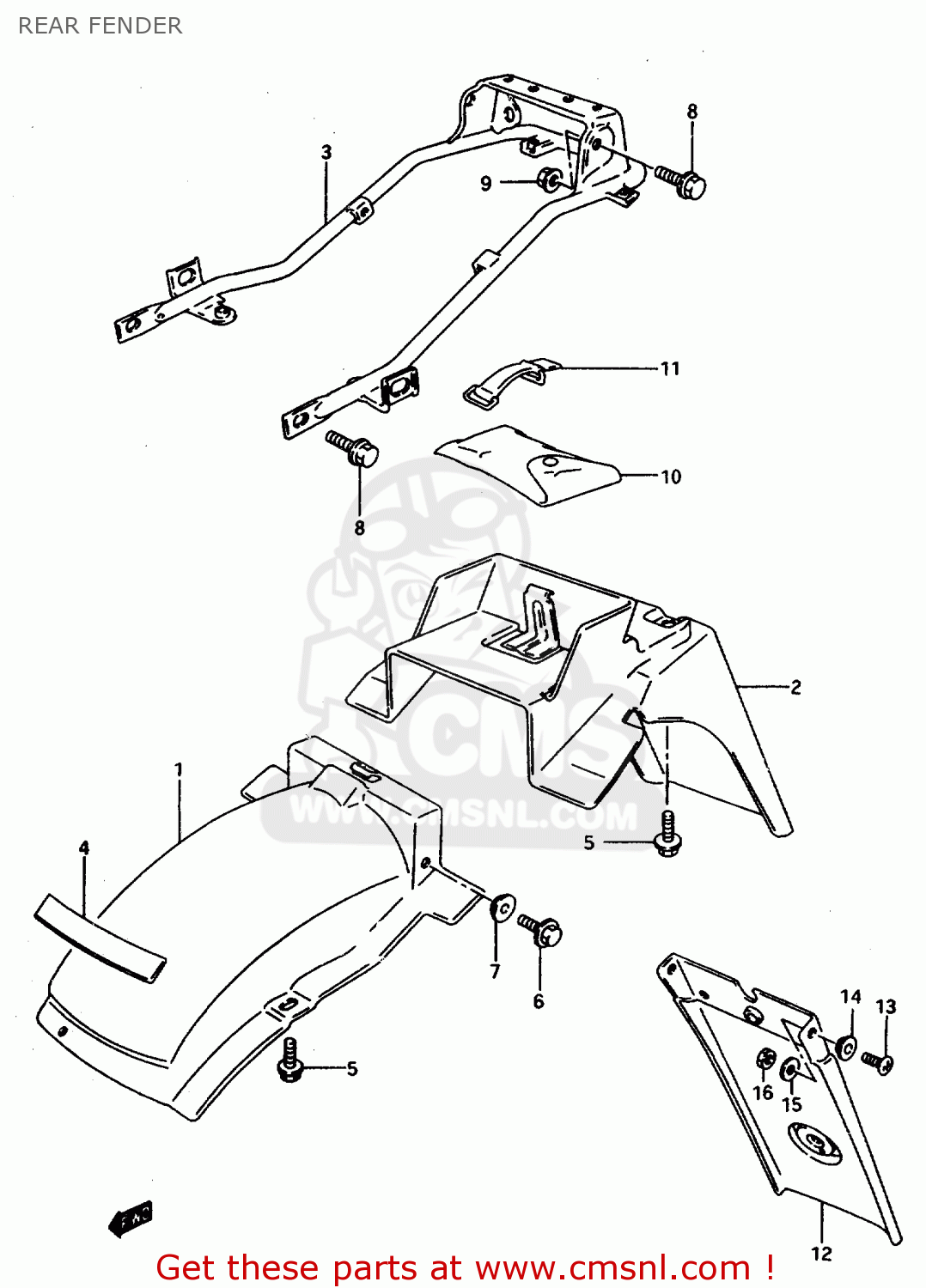

Rear fender diagram DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

prices are in EUR

ref

part #

description

quantity

6311231D00
ref: 1

BODY, REAR FENDER FRONT

€ 51.50

2-1

6311031D00
ref: 2-1

BODY,RR FENDER RR

€ 56.00

2-2

6311031D20
ref: 2-2
E22

BODY,RR FENDER RR

€ 50.00

6312031D00
ref: 3

REINFORCEMENT, REAR FENDER

€ 142.50

6319231D01
ref: 4

CUSHION, REAR FENDER

€ 6.50

0911806067
ref: 5

BOLT

€ 1.50

0911606006
ref: 6

BOLT(6X16)

€ 2.00

0916906041
ref: 7

WASHER

€ 2.00

0155008203
ref: 8

BOLT

€ 3.00

0831931087
ref: 9

NUT

€ 2.50

0980021023
ref: 10

TOOL ASSY

€ 55.00

0946200072
ref: 11

BAND

€ 3.50

6333144B21
ref: 12
E22

MUDGUARD,RR FENDER

€ 22.00

0214206163
ref: 13
E22

SCREW

€ 2.50

0916906055
ref: 14
E22

WASHER

€ 2.00

0916006092
ref: 15
E22

WASHER

€ 2.50

0831000063
ref: 16
E22

NUT 6MM

€ 2.00
