HANDLE SWITCH

DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

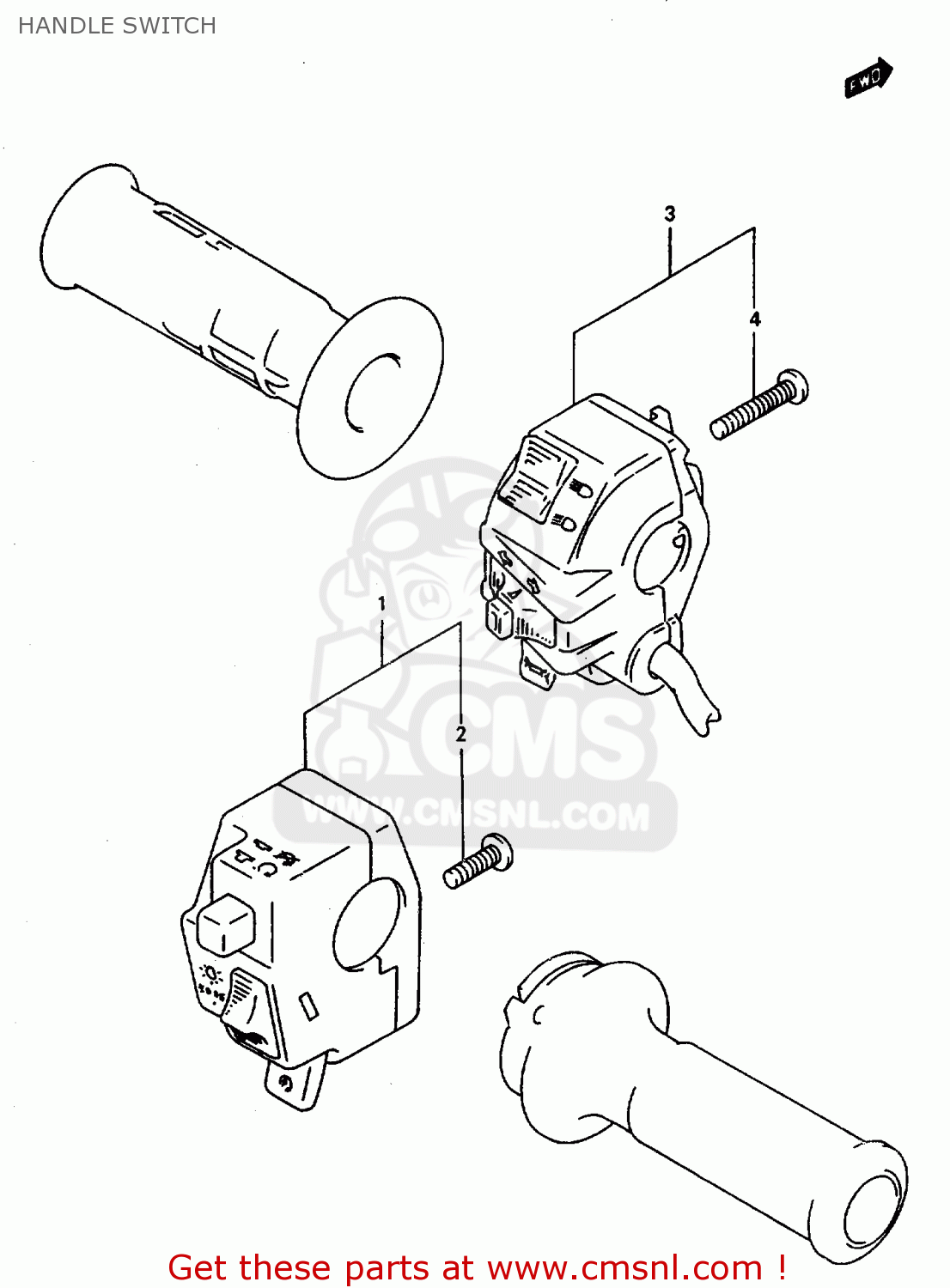

Handle switch diagram DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

HANDLE SWITCH DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

HANDLE SWITCH DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

prices are in EUR

ref

part #

description

quantity

1

3720031D30
ref: 1

SWITCH ASSY,HANDLE,R

€ 111.00

2

0211205253
ref: 2

SCREW

€ 1.50

3

3740031D30
ref: 3

SWITCH ASSY,HANDLE,L

€ 131.00

4

0211205305
ref: 4

SCREW

€ 1.50
