GEAR SHIFTING

DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

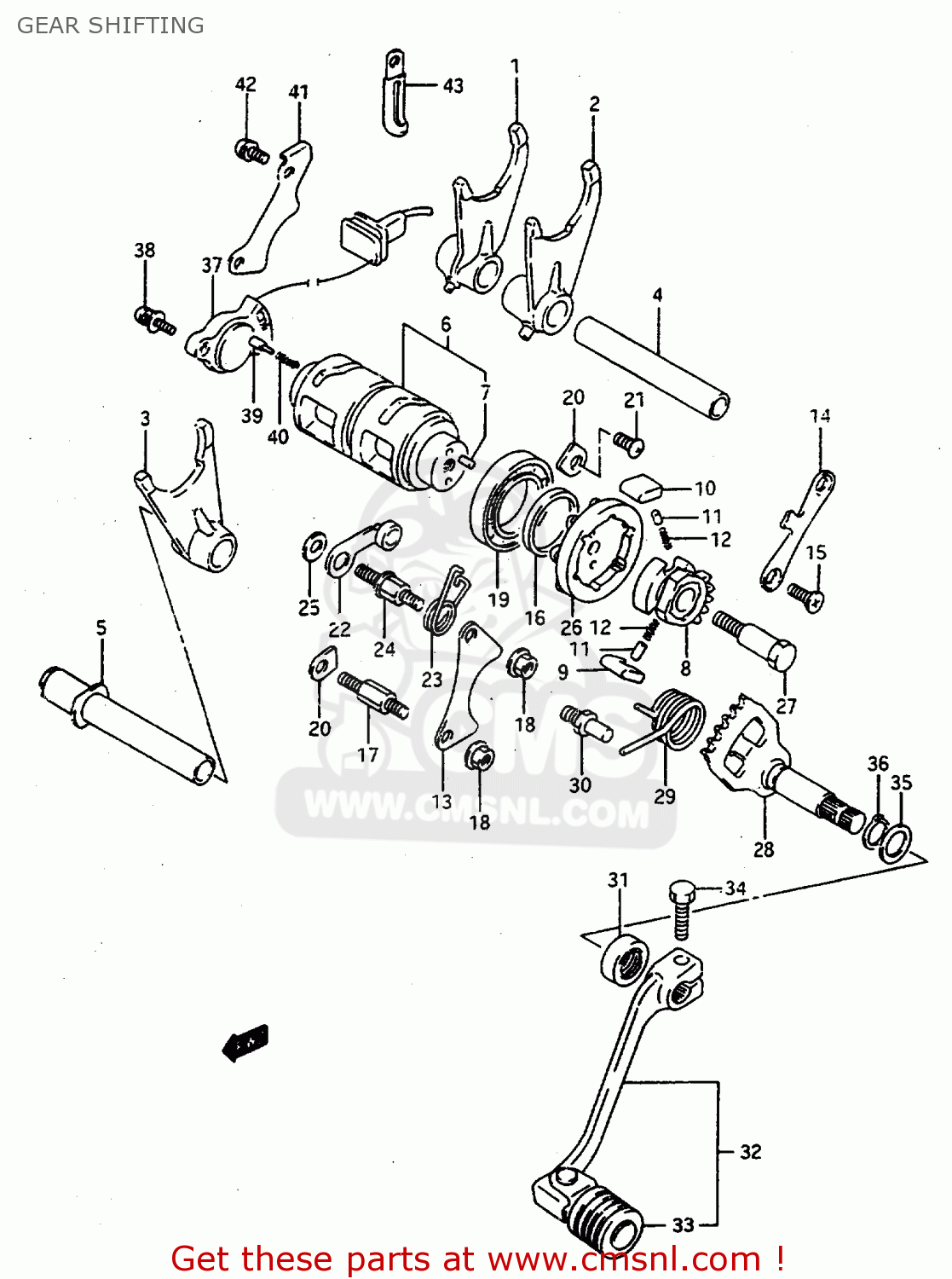

Gear shifting diagram DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

GEAR SHIFTING DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)
GEAR SHIFTING DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)
GEAR SHIFTING DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)
prices are in EUR
ref
part #
description
quantity
1
2521144B00
ref: 1
FORK,GEAR SHIFT NO.1
2521144B00
€ 94.00
2
2522144B00
ref: 2
FORK,GEAR SHIFT NO.2
2522144B00
€ 86.00
3
2523144B00
ref: 3
FORK, GEAR SHIFTING NO.3
€ 55.50
4
2541144B00
ref: 4
SHAFT,GEAR SHIFT FORK NO.1
2541144B00
€ 19.50
5
2542144B01
ref: 5
SHAFT,GEAR SHIFT FORK NO.2
€ 43.50
6
2531044B00
ref: 6
CAM,GEAR SHIFT
2531044B00
€ 144.00
7
0422104089
ref: 7
PIN
0422104089
€ 1.50
8
2532231302
ref: 8
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
9
2532334201
ref: 9
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
10
2532434201
ref: 10
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
11
0926105003
ref: 11
PIN(5X8)
0926105003
€ 1.50
12
0944004003
ref: 12
SPRING
0944004003
€ 1.50
13
2533138A00
ref: 13
LIFTER,GEAR SHIFT POLE
2533138A00
€ 4.50
14
2534138A00
ref: 14
GUIDE,GEAR SHIFT CAM
2534138A00
€ 6.00
15
0212206123
ref: 15
SCREW
0212206123
€ 3.00
16
0916025059
ref: 16
WASHER(25X32X3)
0916025059
€ 5.00
17
2533238A00
ref: 17
BOSS,SHIFT PAWL LIFTER
€ 3.50
18
0831610063
ref: 18
NUT
0831610063
€ 2.50
19
0926225006
ref: 19
BEARING(25X47X8)
0926225006
€ 24.00
20
2474121A00
ref: 20
RETAINER
2474121A00
€ 2.00
21
0211206123
ref: 21
SCREW
0211206123
€ 1.50
22
2535024B00
ref: 22
STOPPER,GEAR SHIFT CAM
2535024B00
€ 8.00
23
0944817021
ref: 23
SPRING
0944817021
€ 5.00
24
2535612C00
ref: 24
SUPPORT,CAM STOPPER ARM
2535612C00
€ 9.50
25
0821106141
ref: 25
WASHER
0821106141
€ 2.50
26
2538038A02
ref: 26
PLATE,GEAR SHIFT CAM
2538038A02
€ 15.00
27
2531238A00
ref: 27
PIN,SHIFT CAM DRIVEN GEAR
2531238A00
€ 4.00
28
2551044B00
ref: 28
SHAFT,GEAR SHIFT
2551044B00
€ 61.00
29
0944426013
ref: 29
SPRING
0944426013
€ 3.50
30
2567136A00
ref: 30
STOPPER,GEAR SHIFT ARM
2567136A00
€ 3.00
31
0928512002
ref: 31
OIL SEAL
0928512002
€ 7.00
32
2560031D00
ref: 32
LEVER ASSY,GEAR SHIFT
2560031D00
€ 102.00
33
2565203D00
ref: 33
RUBBER,GEAR SHIFT PEDAL
2565203D00
€ 3.50
34
0150006203
ref: 34
BOLT
0150006203
€ 2.00
35
0821212201
ref: 35
WASHER
0821212201
€ 1.50
36
0833131126
ref: 36
CIRCLIP,12 MM
0833131126
€ 2.00
37
3772044B00
ref: 37
BASE ASSY,NEUTRAL SW TERMINAL
3772044B00
€ 72.50
38
0211275163
ref: 38
SCREW
0211275163
€ 2.50
39
0920905011
ref: 39
PIN(5X15.5)
0920905011
€ 2.00
40
0944004010
ref: 40
SPRING
0944004010
€ 1.50
41
3772144B00
ref: 41
CLAMP, LEAD WIRE
€ 3.00
42
0211236103
ref: 42
SCREW
€ 1.50
43
0940406429
ref: 43
CLAMP(L:45)
€ 2.50
