FRONT FENDER

DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

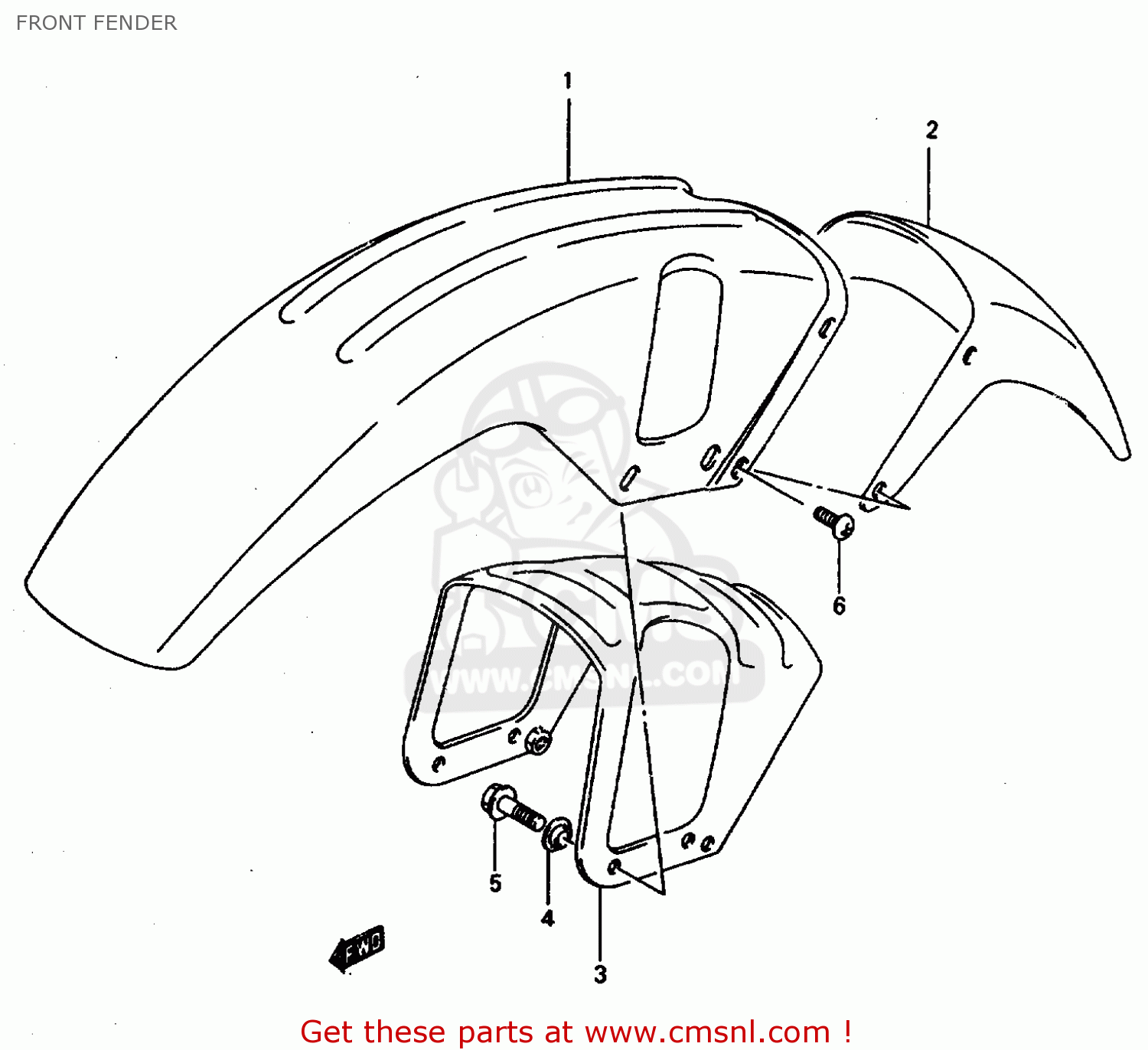

Front fender diagram DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

FRONT FENDER DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

FRONT FENDER DR800S 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

prices are in EUR

ref

part #

description

quantity

1

5311031D3033J
ref: 1

FENDER,FR NO,1

€ 166.50

2

5331144B20291
ref: 2

FENDER,FR NO,2

€ 27.00

3

5321044B00
ref: 3

BRACE, FENDER

€ 33.00

4

0916906041
ref: 4

WASHER

€ 2.00

5

0155006203
ref: 5

BOLT

€ 2.50

6

0214205123
ref: 6

SCREW 5X12

€ 1.50
