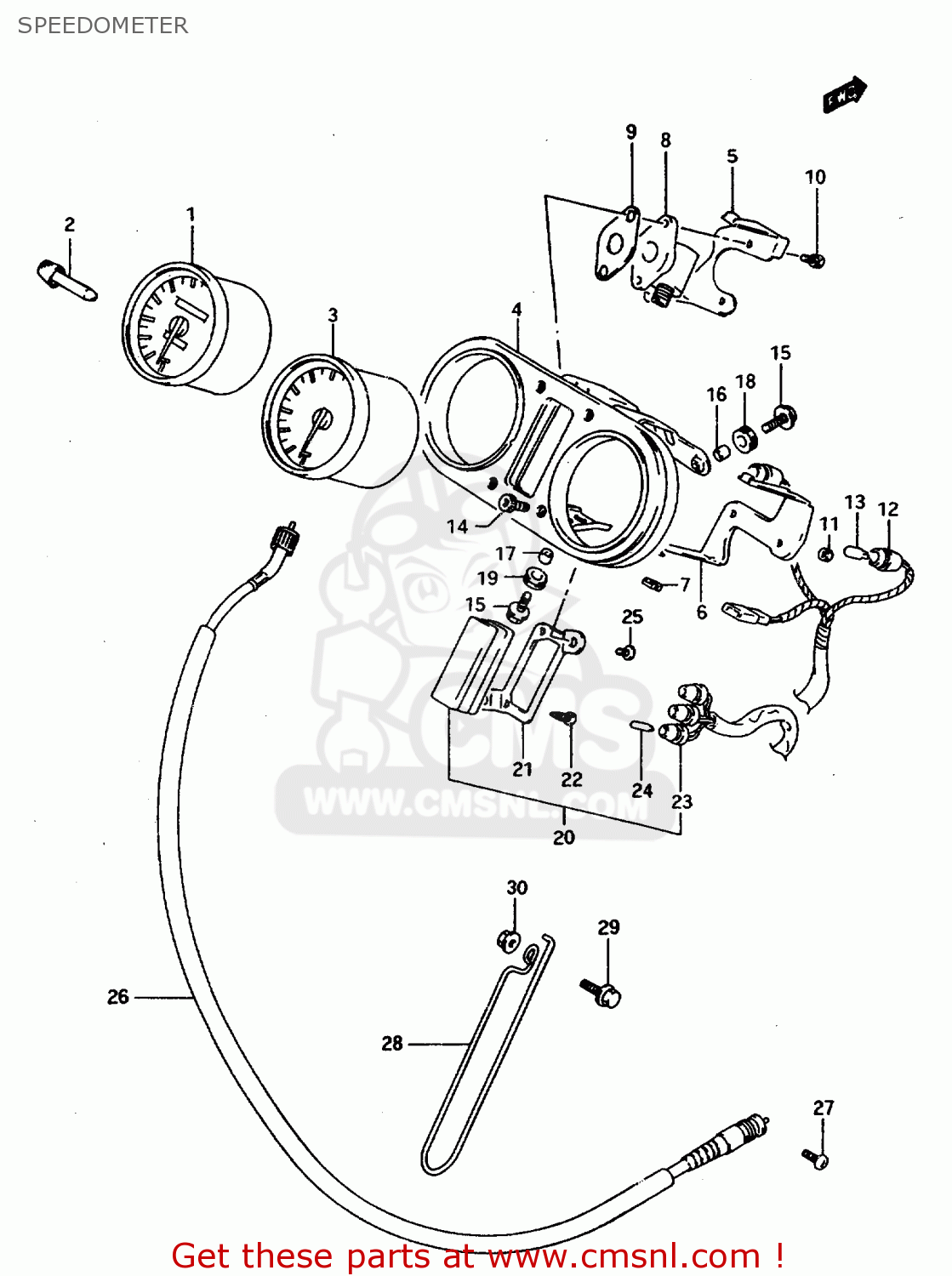

SPEEDOMETER

ref

part #

description

quantity

1

3411031D00
ref: 1

SPEEDOMETER(KILO)

€ 419.50

2

3412449400
ref: 2

KNOB,TRIP

€ 4.50

3

3421031D00
ref: 3

TACHOMETER

€ 430.50

4

3495031D00
ref: 4

PANEL, METER

€ 80.50

5

3411131D00
ref: 5

BRACKET,SPEEDOMETER

€ 43.00

6

3421131D00
ref: 6

BRACKET, TACHOMETER

€ 36.50

7

3419632C00
ref: 7

DAMPER

€ 4.50

8

3413148B10
ref: 8

GEAR BOX

€ 150.00

9

3413217C00
ref: 9

GASKET,METER GEAR BOX (NAS)

€ 5.50

10

0211234123
ref: 10

SCREW

€ 2.00

11

0831000043
ref: 11

NUT

€ 2.00

12

3417031D00
ref: 12

SOCKET

€ 22.00

13

0947112103
ref: 13

BULB(12V3W,T6.5)

€ 2.50

14

3419931D00
ref: 14

BOLT

€ 8.50

15

0911606143
ref: 15

BOLT 6X20

€ 2.00

16

0918006264
ref: 16

SPACER(6.5X9X10.5)

€ 2.00

17

0918006248
ref: 17

SPACER(6.1X8X9.5)

€ 2.50

18

0932008047
ref: 18

CUSHION

€ 4.00

19

0932009026
ref: 19

CUSHION

€ 4.00

20

3638031D00
ref: 20

BOX ASSY, PILOT LAMP

€ 91.00

21

3638331D00
ref: 21

BRACKET,PILOT BOX

€ 13.00

22

0321104103
ref: 22

SCREW, OUTER

€ 2.00

23

3639431D00
ref: 23

SOCKET

€ 24.00

24

0947112118
ref: 24

BULB(13.5V,2W,A7427)

€ 2.00

25

0211234063
ref: 25

SCREW

€ 1.50

26

3491031D01
ref: 26

CABLE ASSY,SPEEDOMETER

€ 79.50

27

0211205163
ref: 27

SCREW

€ 2.00

28

3493814D30
ref: 28

GUIDE,METER CABLE NO.2

€ 8.00

29

0911606167
ref: 29

BOLT(6X20)

€ 2.00

30

0831610063
ref: 30

NUT

€ 2.50
