AIR CLEANER

GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

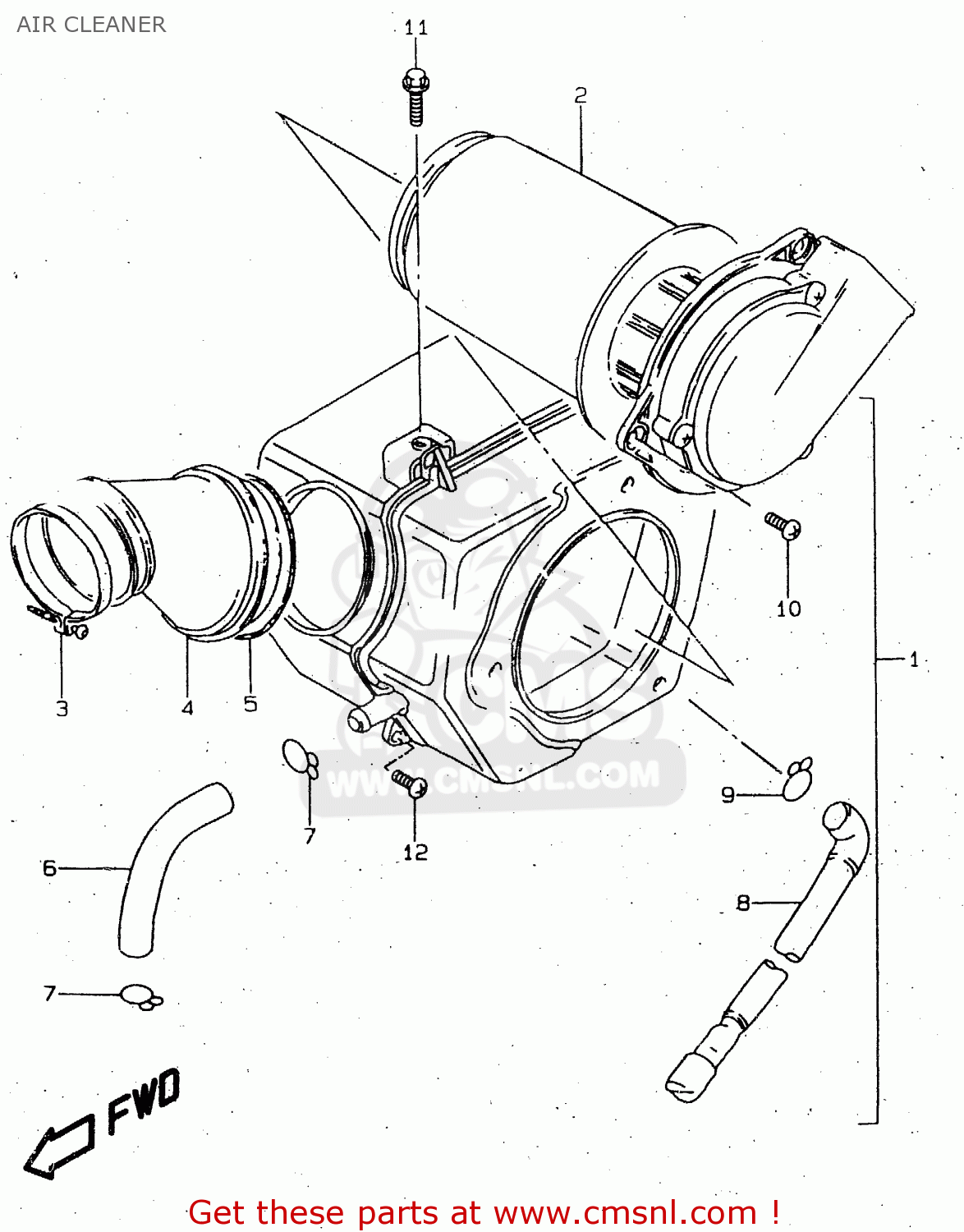

Air cleaner diagram GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

AIR CLEANER GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

AIR CLEANER GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

prices are in EUR

ref

part #

description

quantity

1

1370005302
ref: 1

CLEANER ASSY,AIR

€ 119.00

1

1370005380
ref: 1
E18,E22

CLEANER ASSY,AIR

€ 126.00

2

1378038301
ref: 2

FILTER

€ 21.50

3

0940256208
ref: 3

CLAMP

€ 3.50

4

1388105300
ref: 4

TUBE,OUTLET

€ 21.00

5

1382638300
ref: 5

CLAMP,AIR CLEANER SIDE

€ 3.00

6

1385305300
ref: 6

TUBE,BREATHER

€ 13.00

6

1385005380
ref: 6
E18,E22

TUBE,BREATHER

€ 13.00

7

0940114401
ref: 7

CLIP

€ 2.00

8

1387021308
ref: 8

TUBE,DRAIN

€ 16.50

9

0940113409
ref: 9

CLIP

€ 2.50

10

0214205127
ref: 10

SCREW

€ 1.50

11

0158006163
ref: 11

BOLT

€ 2.50

12

0214206163
ref: 12
MODEL V

SCREW

€ 2.50

12

0158006163
ref: 12
MODEL W/X

BOLT

€ 2.50
