ELECTRICAL

GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

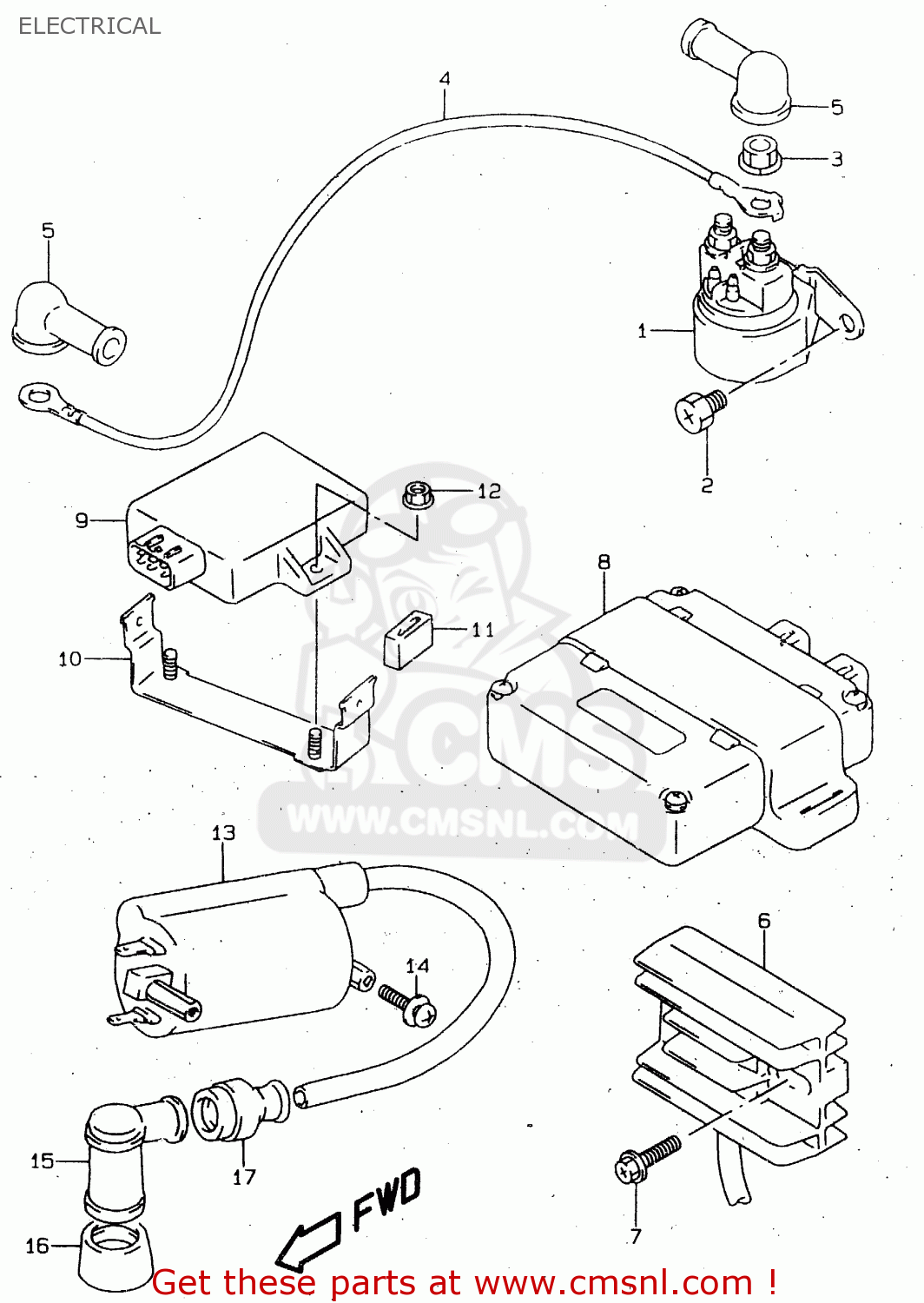

Electrical diagram GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

prices are in EUR

ref

part #

description

quantity

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 89.00

0912806004
ref: 2
MODEL V/W

SCREW(6X10)

€ 1.50

0912806044
ref: 2
MODEL X

SCREW(6X10)

€ 1.50

0836135068
ref: 3

NUT

€ 2.00

3385005301
ref: 4

WIRE,STARTER MOTOR

€ 16.50

3186131500
ref: 5

CAP,TERMINAL

€ 3.00

3280029B00
ref: 6

RECTIFIER ASSY

€ 266.50

0912806057
ref: 7

BOLT(6X20)

€ 2.00

3290005300
ref: 8

IGNITOR UNIT

€ 435.00

3290005330
ref: 9
E4

IGNITOR ASSY

€ 0.00

3290005340
ref: 9
E22

IGNITOR ASSY

€ 0.00

32931053A0
ref: 10
E4,E22

BRACKET,IGNITOR

€ 0.00

3298005300
ref: 11
E4,E22

CUSHION,IGNITOR

€ 8.00

0831610063
ref: 12
E4,E22

NUT

€ 2.50

3341005350
ref: 13

COIL ASSY,IGNITION

€ 128.00

0214205103
ref: 14

SCREW

€ 2.50

3351022010
ref: 15

CAP ASSY,SPARK PLUG

€ 16.50

3354124510
ref: 16

SEAL,SPARK PLUG CAP

€ 7.00

3354238B00
ref: 17

SEAL,HIGH TENSION CORD

€ 4.50
