Buy Suzuki GN Parts Online


STEERING STEM

GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

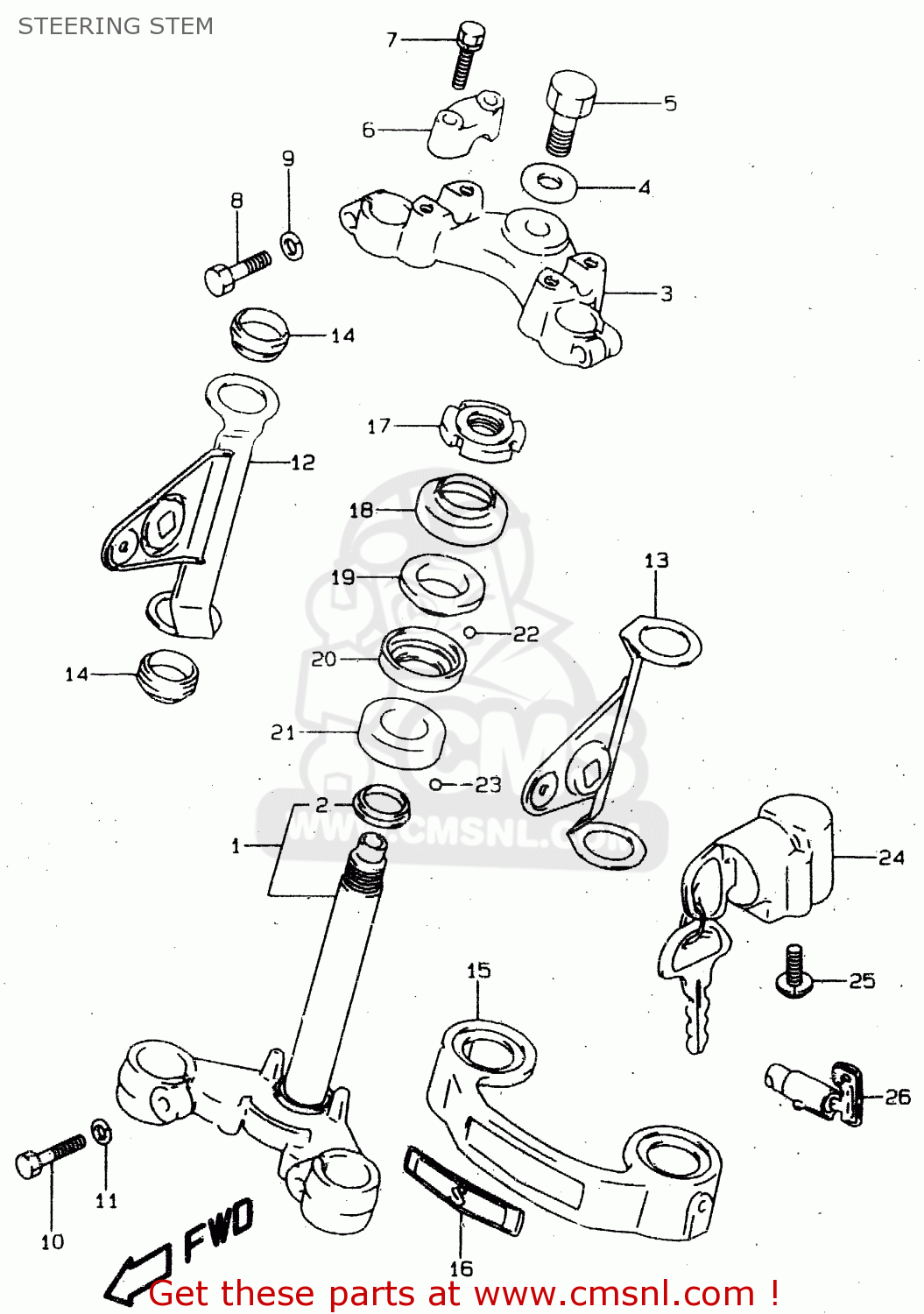

Steering stem diagram GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

STEERING STEM GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)
STEERING STEM GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)
STEERING STEM GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)
prices are in EUR
ref
part #
description
quantity
1
5141011311
ref: 1
STEM,STEERING
5141011311
€ 157.50
1
51410053B0
ref: 1
E18,E22
STEM,STEERING
51410053B0
€ 142.00
2
5162133001
ref: 2
RACE,STEERING OUTER LWR
5162133001
€ 10.00
3
5131111300291
ref: 3
HEAD,STEERING STEM(BLACK)
5131111300291
€ 128.00
4
5135622012
ref: 4
WASHER,STEM HEAD(10.5X30X3.2)
5135622012
€ 4.00
5
5135129400
ref: 5
BOLT,FR FORK(10X33)
5135129400
€ 25.00
6
5621129320291
ref: 6
HOLDER,HANDLE(BLACK)
5621129320291
€ 12.00
7
0125408357
ref: 7
BOLT
0125408357
€ 3.50
8
0150010407
ref: 8
BOLT
0150010407
€ 3.00
9
0832101107
ref: 9
WASHER,LOCK
0832101107
€ 2.00
10
5145128012
ref: 10
BOLT,FR FORK LWR(12X33)
5145128012
€ 11.50
11
0832101127
ref: 11
WASHER,LOCK
0832101127
€ 2.50
12
5153005300
ref: 12
BRACKET,HEADLAMP,R
€ 42.00
13
5154005300
ref: 13
BRACKET,HEADLAMP,L
5154005300
€ 42.00
14
5155311300
ref: 14
CUSHION,HEADLAMP BRACKET
5155311300
€ 3.50
15
5187105301
ref: 15
COVER,FR FORK
5187105301
€ 28.50
16
6821138300
ref: 16
EMBLEM,FR FORK COVER
6821138300
€ 13.50
17
5163128000
ref: 17
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
18
5164325001
ref: 18
DUST SEAL,STEERING UPR
5164325001
€ 4.50
19
5162128000
ref: 19
RACE,STEERING OUTER UPR
5162128000
€ 7.00
20
5161120002
ref: 20
RACE,STEERING INNER UPR
5161120002
€ 5.50
21
5161133002
ref: 21
LACE,STEERING INNER LWR
5161133002
€ 7.00
22
0611106003
ref: 22
BALL
0611106003
€ 1.50
23
0611108003
ref: 23
BALL
0611108003
€ 1.50
24
5191025311
ref: 24
E1,E2,E4,E21,E30,E71
LOCK ASSY,STEERING
5191025311
€ 22.50
25
0211235123
ref: 25
E1,E2,E4,E21,E30,E71
SCREW
0211235123
€ 1.50
26
5190030901
ref: 26
E18
LOCK ASSY,STEERING(NEIMAN)
5190030901
€ 168.50
26
5190030901
ref: 26
E22, PURCHASE LOCALL
LOCK ASSY,STEERING(NEIMAN)
5190030901
€ 168.50
