REAR COMBINATION LAMP (E2,E4,E21)

GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

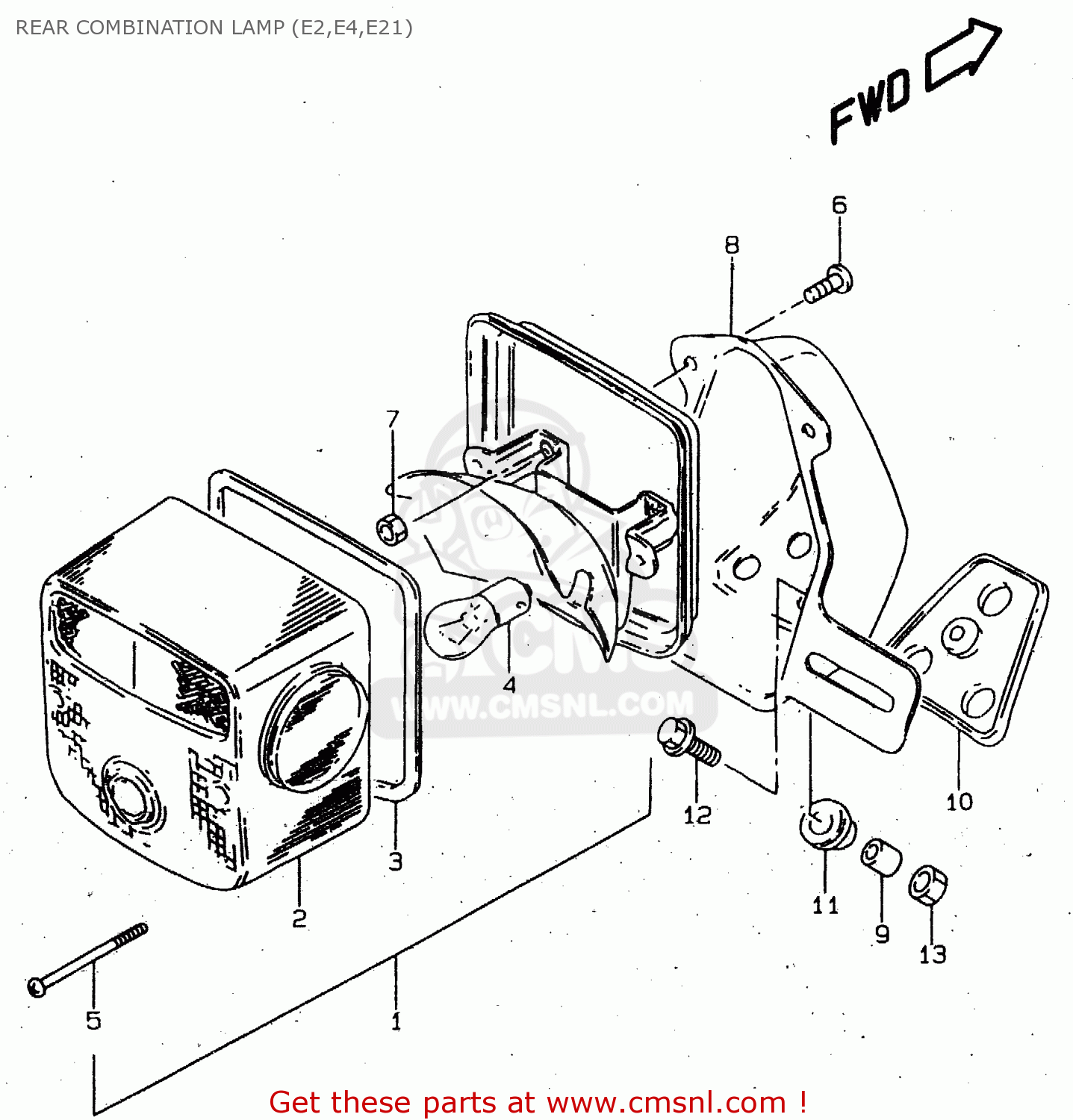

Rear combination lamp (e2,e4,e21) diagram GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

prices are in EUR

ref

part #

description

quantity

3572038350
ref: 1

LAMP UNIT,RR COMBNATION

€ 138.00

3571238350
ref: 2

LENS

€ 66.00

3571330510
ref: 3

GASKET (NAS)

€ 6.00

0947112083
ref: 4

BULB(12V21/5W)

€ 6.00

0912504002
ref: 5

SCREW (4X55)

€ 1.50

0211206127
ref: 6

SCREW

€ 2.00

0831000067
ref: 7

NUT

€ 2.50

3573038310
ref: 8

BRACKET UNIT,TAIL LAMP

€ 57.50

3576626470
ref: 9

SPACER

€ 2.00

3576526470
ref: 10

CUSHION

€ 10.00

3576426470
ref: 11

CUSHION

€ 2.50

0911606167
ref: 12

BOLT(6X20)

€ 2.00

0831000063
ref: 13

NUT 6MM

€ 2.00
