REAR COMBINATION (GN125E E1,E30)

GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

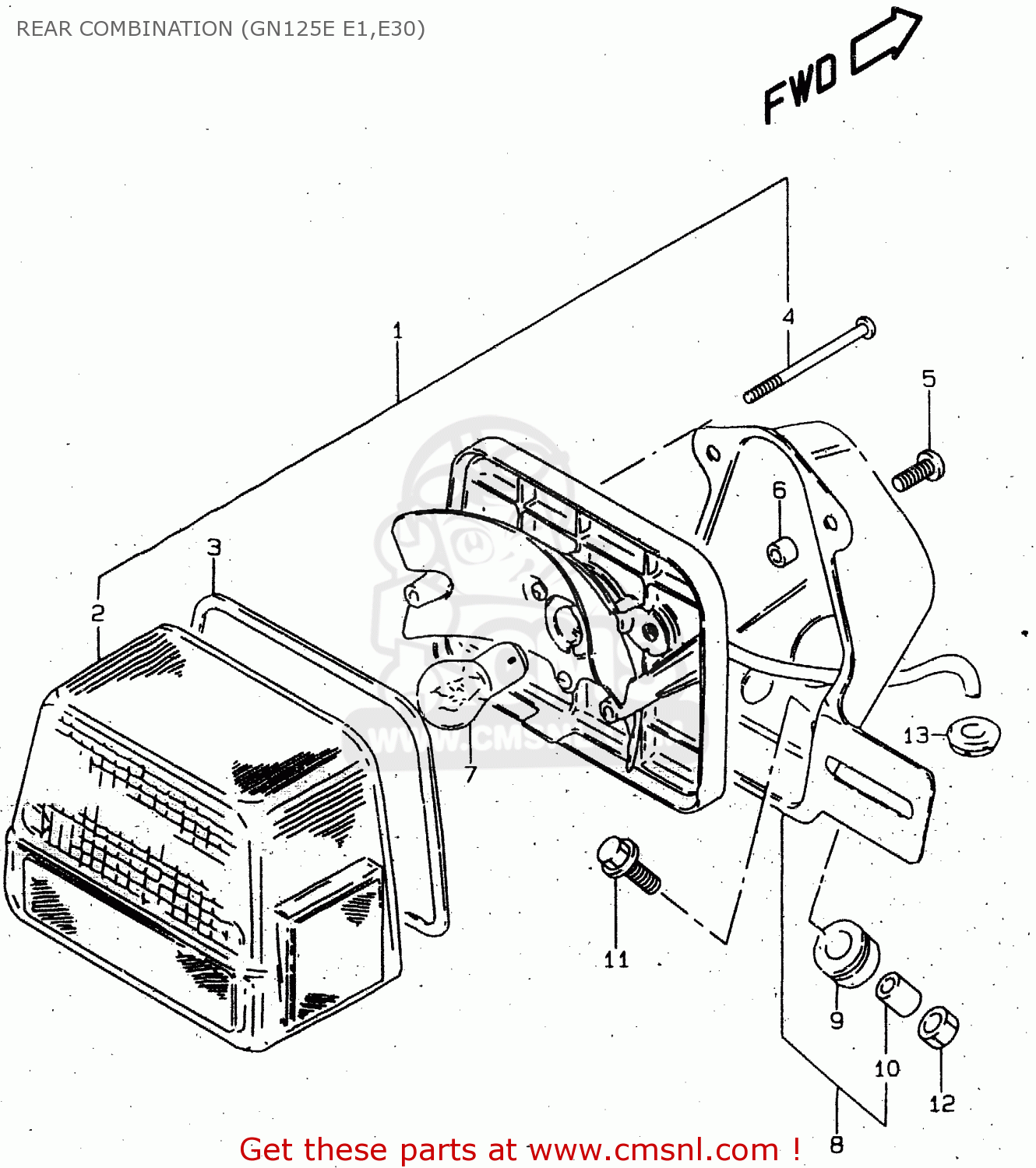

Rear combination (gn125e e1,e30) diagram GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

prices are in EUR

ref

part #

description

quantity

3572038330999
ref: 1

LAMP UNIT,RR COMBNATION

€ 88.00

3571249130
ref: 2

LENS

€ 49.00

3571349130
ref: 3

GASKET (NAS)

€ 5.50

3572344130
ref: 4

SCREW

€ 1.50

0211205167
ref: 5

SCREW

€ 2.50

3576639210
ref: 6

SPACER

€ 0.00

0947112035
ref: 7

BULB(12V23W)

€ 5.50

3573049130
ref: 8

BRACKET UNIT,TAIL LAMP

€ 0.00

3576522210
ref: 9

CUSHION

€ 4.00

3576637120
ref: 10

SPACER

€ 2.50

0911606093
ref: 11

BOLT(6X25)

€ 2.00

0831000063
ref: 12

NUT 6MM

€ 2.00

0930809004
ref: 13

GROMMET

€ 0.00
