OIL PUMP

GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

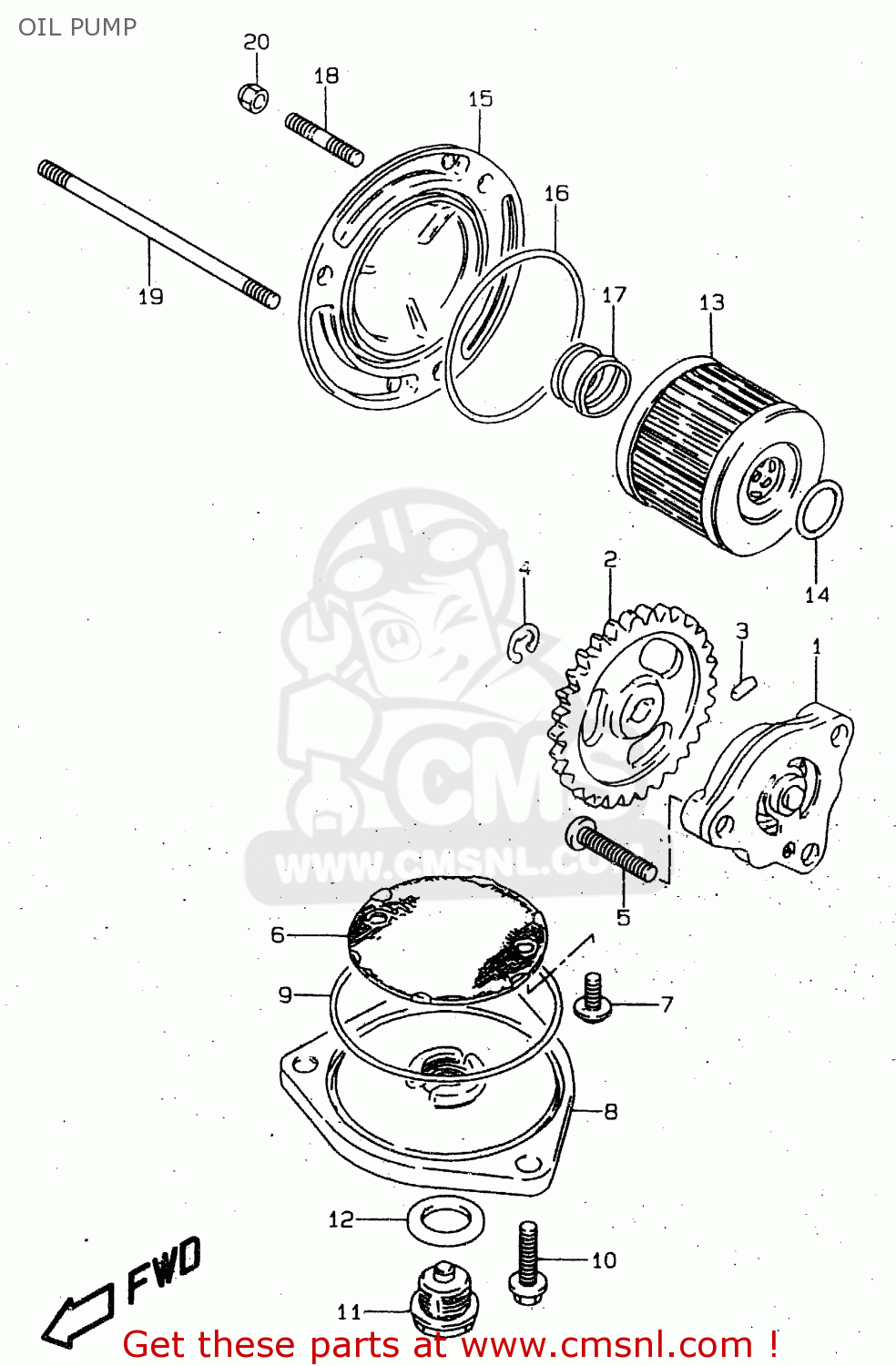

Oil pump diagram GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

OIL PUMP GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)
OIL PUMP GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)
OIL PUMP GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)
prices are in EUR
ref
part #
description
quantity
1
1640005201
ref: 1
PUMP ASSY,ENGINE OIL
1640005201
€ 93.00
2
1633105200
ref: 2
GEAR,ENG OIL PUMP DRIVEN(NT:30
€ 21.00
3
0926102008
ref: 3
PIN(2.5X11.8)
0926102008
€ 1.50
4
0833211063
ref: 4
E.RING
0833211063
€ 2.00
5
0211206253
ref: 5
SCREW
0211206253
€ 1.50
6
1652005202
ref: 6
STRAINER,ENGINE OIL
1652005202
€ 4.50
7
0211275123
ref: 7
SCREW
€ 2.50
8
1652305200
ref: 8
CAP,OIL STRAINER
1652305200
€ 9.00
9
0928060005
ref: 9
O RING(D:2.4,ID:60.5)
0928060005
€ 3.00
10
0154706203
ref: 10
SCREW
0154706203
€ 2.50
11
0924714001
ref: 11
~E.NO.423057
PLUG
0924714001
€ 5.00
11
0924714026
ref: 11
E.NO.423058~
PLUG(14X12)
0924714026
€ 3.50
11
0924714026
ref: 11
E30
PLUG(14X12)
0924714026
€ 3.50
11
0924714001
ref: 11
GN125V E1
PLUG
0924714001
€ 5.00
11
0924714026
ref: 11
GN125EV E1
PLUG(14X12)
0924714026
€ 3.50
12
0916814002
ref: 12
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
13
1651005240
ref: 13
FILTER ASSY,ENGINE OIL
1651005240
€ 8.50
14
0928013004
ref: 14
O RING(D:1.9,ID:13)
0928013004
€ 2.50
15
1651205212
ref: 15
CAP,OIL FILTER
1651205212
€ 15.00
16
0928054001
ref: 16
O RING(D:2.4,ID:52.6)
0928054001
€ 4.00
17
0944018002
ref: 17
SPRING
0944018002
€ 1.50
18
0142106128
ref: 18
STUD 6X12
0142106128
€ 1.50
19
0142106858
ref: 19
STUD BOLT, 6X8
€ 2.50
20
0831310067
ref: 20
NUT
0831310067
€ 2.00
