CARRIER

GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

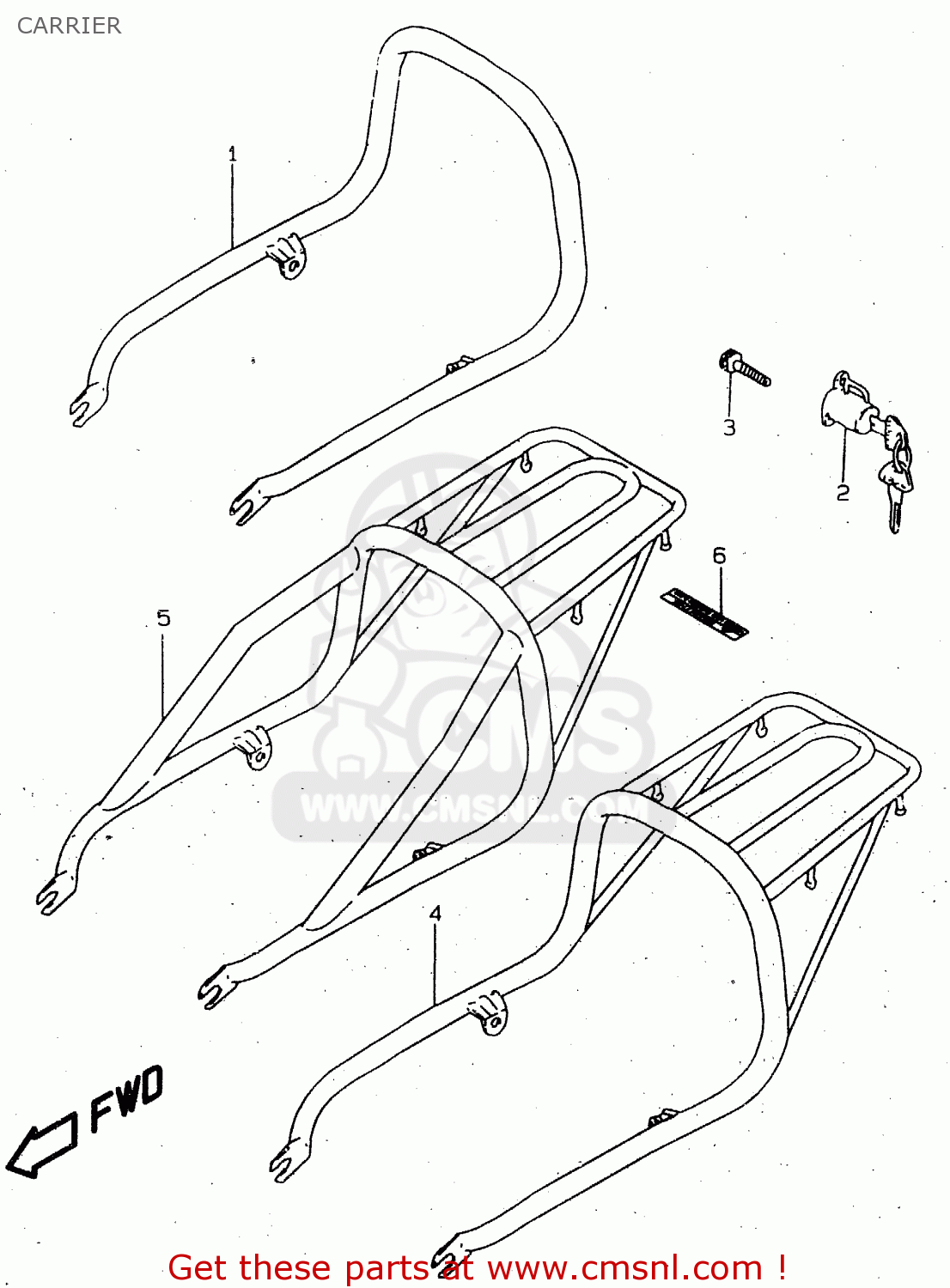

Carrier diagram GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

CARRIER GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

CARRIER GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

prices are in EUR

ref

part #

description

quantity

1

4621005300
ref: 1

HANDLE,PILLION RIDER

€ 686.00

2

9570037810
ref: 2

LOCK SET,HELMET

€ 36.00

3

0913906075
ref: 3

SCREW(6X12)

€ 3.00

4

4631005300
ref: 4
OPT

CARRIER

€ 161.50

5

4630005860
ref: 5
OPT E22

CARRIER SET,SUPPORT

€ 161.50

6

6839144AD0
ref: 6
OPT E22

LABEL,RR CARRIER

€ 4.50
