CARBURETOR

GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

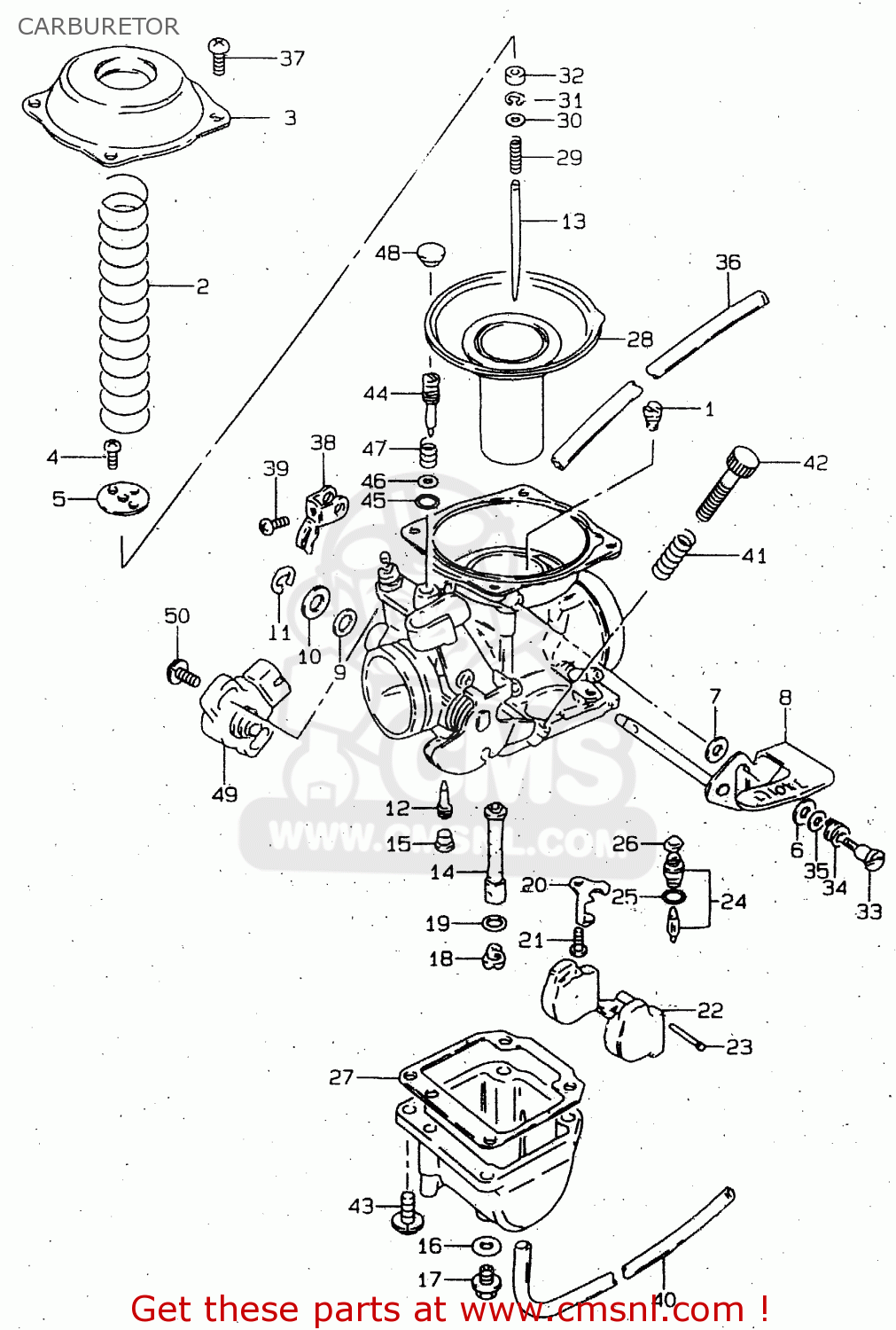

Carburetor diagram GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

CARBURETOR GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)
CARBURETOR GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)
CARBURETOR GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)
prices are in EUR
ref
part #
description
quantity
0
1320005313
ref: 0
GN125V E1
CARBURETOR ASSY
€ 332.50
0
1320005302
ref: 0
GN125EV E1
CARBURETOR ASSEMBLY
€ 144.50
0
1320005313
ref: 0
E2,E21,E71
CARBURETOR ASSY
€ 332.50
0
13200053D0
ref: 0
E18
CARBURETOR ASSY
€ 286.50
0
1320005302
ref: 0
E30
CARBURETOR ASSEMBLY
€ 144.50
0
1320005500
ref: 0
E4
CARBURETOR ASSY
€ 156.50
0
1320005510
ref: 0
E22
CARBURETOR ASSY
€ 116.50
0
1320005540
ref: 0
P9
CARBURETOR ASSY
€ 0.00
1
0949136005
ref: 1
JET,MAIN(180)
0949136005
€ 9.50
1
0949129010
ref: 1
E4,E22,P9, <-09491-2
JET,MAIN(147.5)
0949129010
€ 9.00
2
1350333200
ref: 2
SPRING
1350333200
€ 8.50
2
1350305350
ref: 2
E4,E22,P9
SPRING,THROTTLE VALVE
1350305350
€ 8.50
3
1350233210
ref: 3
COVER
€ 19.50
4
0211233083
ref: 4
SCREW
€ 2.00
4
0211203063
ref: 4
E4,E22,P9
SCREW
0211203063
€ 2.00
5
1338937400
ref: 5
PLATE
1338937400
€ 5.50
6
1343105300
ref: 6
PACKING (NAS)
1343105300
€ 5.50
7
0916004015
ref: 7
WASHER(4.1X12X0.8)
0916004015
€ 2.00
8
1341005300
ref: 8
SHAFT ASSY,STARTER
€ 19.00
8
1341005500
ref: 8
E4,E22,P9
SHAFT ASSY,STARTER
€ 0.00
9
1365151010
ref: 9
E18
SEAL
1365151010
€ 4.00
10
1355747070
ref: 10
E18
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
11
1361744080
ref: 11
E18
E RING
1361744080
€ 3.50
12
0949235008
ref: 12
JET,PILOT(35)
0949235008
€ 7.50
12
0949235010
ref: 12
E18
JET,PILOT(37.5)
0949235010
€ 10.50
12
0949217006
ref: 12
E4,E22,P9
JET,PILOT(17.5)
0949217006
€ 7.50
13
1338305310
ref: 13
NEEDLE,JET
1338305310
€ 15.00
13
1338305300
ref: 13
E30
NEEDLE,JET
€ 0.00
14
0949400370
ref: 14
JET,NEEDLE(P-2)
0949400370
€ 21.00
14
0949400725
ref: 14
E4,E22,P9
JET,NEEDLE(O-8)
0949400725
€ 26.00
15
1335744080
ref: 15
E1,E2,E18,E21,E30,E7
PLUG,NEEDLE JET
1335744080
€ 4.50
16
1324644080
ref: 16
GASKET (NAS)
1324644080
€ 3.50
17
1324744080
ref: 17
PLUG,DRAIN
1324744080
€ 9.50
18
0949120012
ref: 18
JET,MAIN(102.5)
0949120012
€ 8.50
18
0949197003
ref: 18
E4,E22,P9
JET,MAIN(97.5)
0949197003
€ 8.50
19
1338203110
ref: 19
<-13332-44080
WASHER
1338203110
€ 2.50
20
1337311400
ref: 20
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
20
1337339110
ref: 20
E18,E30
PLATE
1337339110
€ 6.50
20
1337311400
ref: 20
GN125V E1
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
20
1337339110
ref: 20
GN125EV E1
PLATE
1337339110
€ 6.50
21
0211204063
ref: 21
SCREW 4X6
0211204063
€ 2.00
22
1325005300
ref: 22
FLOAT
1325005300
€ 30.00
23
1325492311
ref: 23
PIN,FLOAT
1325492311
€ 2.00
24
1337044500
ref: 24
VALVE ASSY,NEEDLE
1337044500
€ 40.50
25
1337444080
ref: 25
O-RING,NEEDLE VALVE
1337444080
€ 6.00
26
1337684110
ref: 26
FILTER
€ 6.50
27
1325105400
ref: 27
GASKET,FLOAT CHAMBER (NAS)
1325105400
€ 12.00
28
13500053D0
ref: 28
DIAPHRAGM ASSY
13500053D0
€ 203.50
29
1338844030
ref: 29
SPRING
1338844030
€ 6.00
30
1338244030
ref: 30
WASHER
1338244030
€ 3.50
31
1339410010
ref: 31
CLIP
1339410010
€ 4.50
32
1338747010
ref: 32
RING
1338747010
€ 7.50
33
1343833110
ref: 33
SCREW
1343833110
€ 5.50
33
1343333110
ref: 33
E4,E22,P9
SCREW,STARTER LEVER
1343333110
€ 5.50
34
1342643010
ref: 34
SPRING
1342643010
€ 4.50
35
1361543010
ref: 35
WASHER,STARTER SHAFT
1361543010
€ 2.50
36
0935250823600
ref: 36
L:600->300
HOSE(5X8.2X600)
0935250823600
€ 13.00
37
0211205087
ref: 37
SCREW
0211205087
€ 2.00
38
1342205300
ref: 38
LEVER
€ 0.00
39
1360531210
ref: 39
SCREW
1360531210
€ 3.00
40
0935135653600
ref: 40
L:600->350
HOSE(3.5X6.5X600)
0935135653600
€ 5.50
41
1326837420
ref: 41
SPRING,THROTTLE SCREW
1326837420
€ 3.50
42
1326725D00
ref: 42
<-13267-37100
ADJUSTER
1326725D00
€ 9.00
43
1360104148
ref: 43
SCREW
1360104148
€ 2.50
43
1360145C00
ref: 43
E4,E22,P9
SCREW
1360145C00
€ 2.50
44
1327945400
ref: 44
E2,E4,E21,E22,E71
SCREW,PILOT
1327945400
€ 8.00
44
1327945400
ref: 44
E30
SCREW,PILOT
1327945400
€ 8.00
44
1327945400
ref: 44
P9
SCREW,PILOT
1327945400
€ 8.00
44
1327945400
ref: 44
GN125V E1
SCREW,PILOT
1327945400
€ 8.00
44
1327945400
ref: 44
GN125EV E1
SCREW,PILOT
1327945400
€ 8.00
45
1329529900
ref: 45
EXCEPT E18
O RING,PILOT AIR SCREW
1329529900
€ 4.00
46
1329129900
ref: 46
EXCEPT E18
WASHER
1329129900
€ 2.00
47
1326847070
ref: 47
EXCEPT E18
SPRING
1326847070
€ 5.00
48
1328105A00
ref: 48
E1,E2,E21,E30,E71
PLUG
1328105A00
€ 3.50
48
1335736A00
ref: 48
E4,E22,P9
PLUG
1335736A00
€ 4.50
49
1358005500
ref: 49
E4,E22
SENSOR ASSY
€ 104.00
50
1360255A00
ref: 50
E4,E22
SCREW, SENSOR
1360255A00
€ 3.00
