FOOTREST

GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

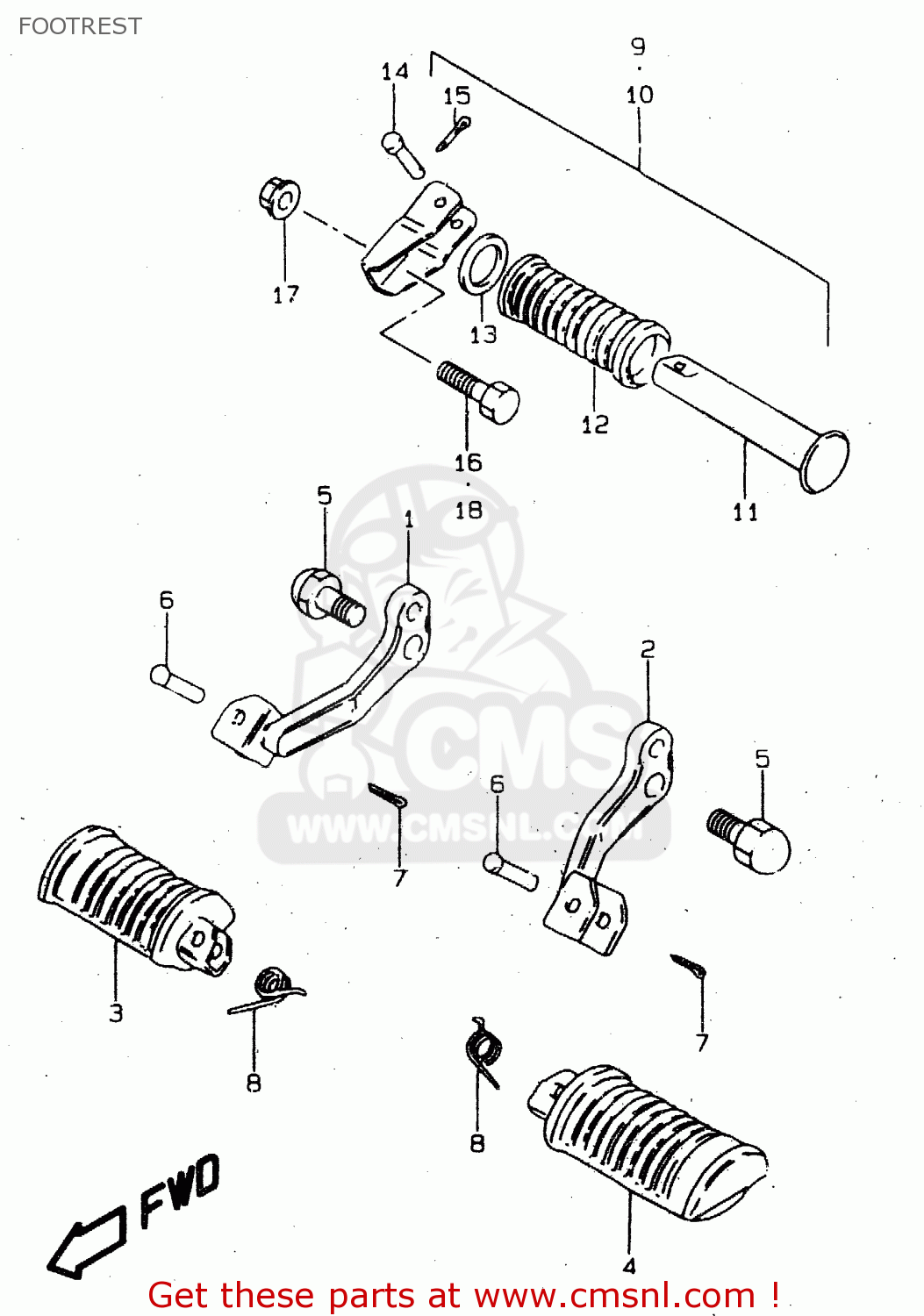

Footrest diagram GN125E 1997 (V) GENERAL EXPORT SINGAPORE (E01 E30)

prices are in EUR

ref

part #

description

quantity

4351005330
ref: 1

HOLDER,FR FOOTREST,R

€ 35.50

4352005330
ref: 2

HOLDER,FR FOOTREST,L

€ 35.50

4355037301
ref: 3

RUBBER,PILLION FOOTREST,R

€ 22.50

4356037301
ref: 4

RUBBER,PILLION FOOTREST,L

€ 22.50

0155012257
ref: 5

BOLT

€ 2.50

0920008002
ref: 6

PIN

€ 2.00

0411120208
ref: 7

PIN 20X20

€ 1.50

0944814012
ref: 8

SPRING

€ 3.00

4360005301
ref: 9

FOOTREST ASSY,PILLION,R

€ 21.00

4370005301
ref: 10

FOOTREST ASSY,PILLION,L

€ 21.00

4361003001
ref: 11

BAR,FOOTREST RUBBER

€ 5.50

4361233200
ref: 12

RUBBER,PILLION FOOTREST

€ 4.50

0916019006
ref: 13
MODEL V

WASHER (19.5X32X2)

€ 2.00

0916019023
ref: 13
MODEL W/X

WASHER

€ 2.00

0920006033
ref: 14

PIN

€ 2.00

0411120158
ref: 15

PIN

€ 1.50

0155010453
ref: 16

BOLT

€ 3.00

0831610103
ref: 17

NUT

€ 2.00

0155010253
ref: 18

BOLT

€ 3.00
