CARRIER

GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

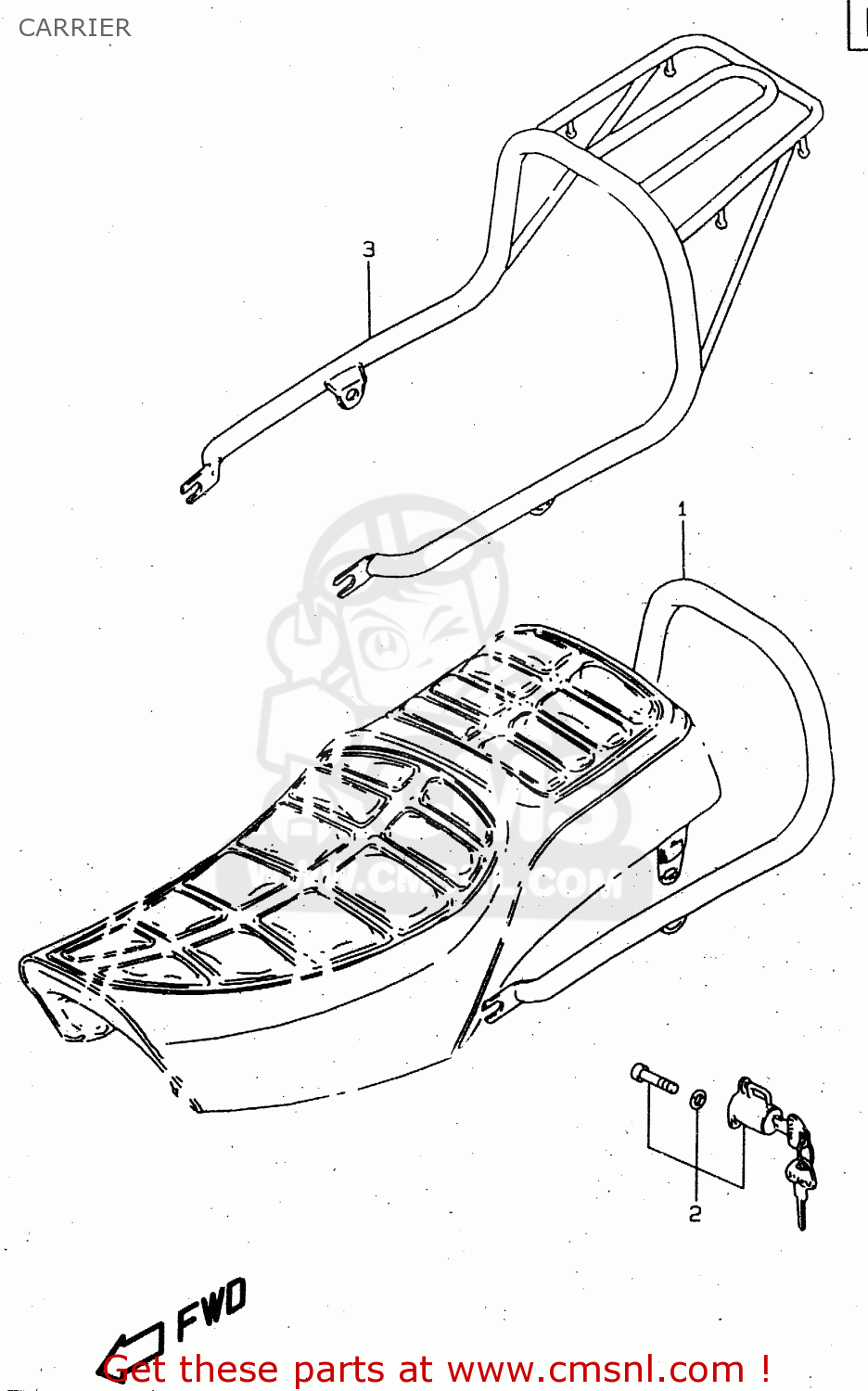

Carrier diagram GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

CARRIER GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

CARRIER GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

4621038301
ref: 1

HANDLE,PILLION RIDER

€ 87.50

2

9570038840
ref: 2

LOCK SET,HELMET

€ 44.50

3

4631038301
ref: 3
OPT

CARRIER,SPORT

€ 112.00

all assemblies
