HANDLE LEVER

GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

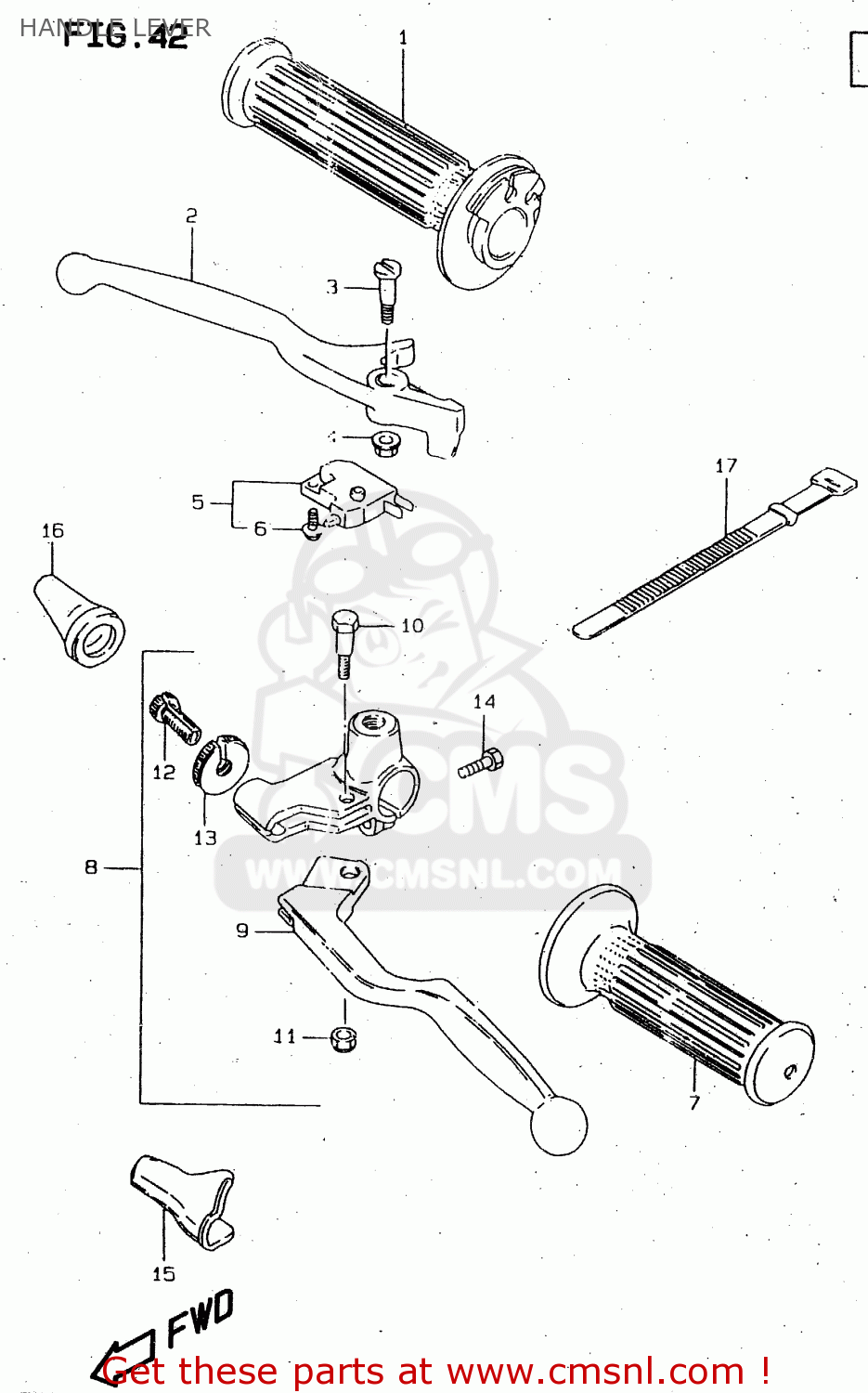

Handle lever diagram GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

5711045000
ref: 1

GRIP,THROTTLE

€ 25.50

5742001D00
ref: 2

LEVER,BRAKE

€ 25.00

5743117C00
ref: 3

BOLT,LEVER PIVOT

€ 8.00

0831610063
ref: 4

NUT

€ 2.50

5746017C00
ref: 5

SWITCH ASSEMBLY,STOP

€ 32.50

5746517C00
ref: 6

SCREW

€ 1.50

5721145020
ref: 7

GRIP,L

€ 9.00

5750037200
ref: 8

LEVER ASSY,CLUTCH

€ 49.50

5762049101
ref: 9

LEVER,CLUTCH

€ 28.50

5743149110
ref: 10

BOLT,LEVER PIVOT

€ 5.00

0831921068
ref: 11

NUT 6MM

€ 2.00

5744111010
ref: 12

ADJUSTER,CABLE

€ 8.00

5744211010
ref: 13

NUT,CABLE ADJUSTER

€ 4.00

5745149100
ref: 14

BOLT,CLUTCH LEVER HOLDER

€ 3.00

5766131000
ref: 15

COVER,CLUTCH LEVER

€ 5.50

5827331000
ref: 16

BOOT,CLUTCH CABLE

€ 2.50

0940712402
ref: 17

CLAMP(L:120)

€ 3.00

HANDLE LEVER

all assemblies
