CYLINDER

GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

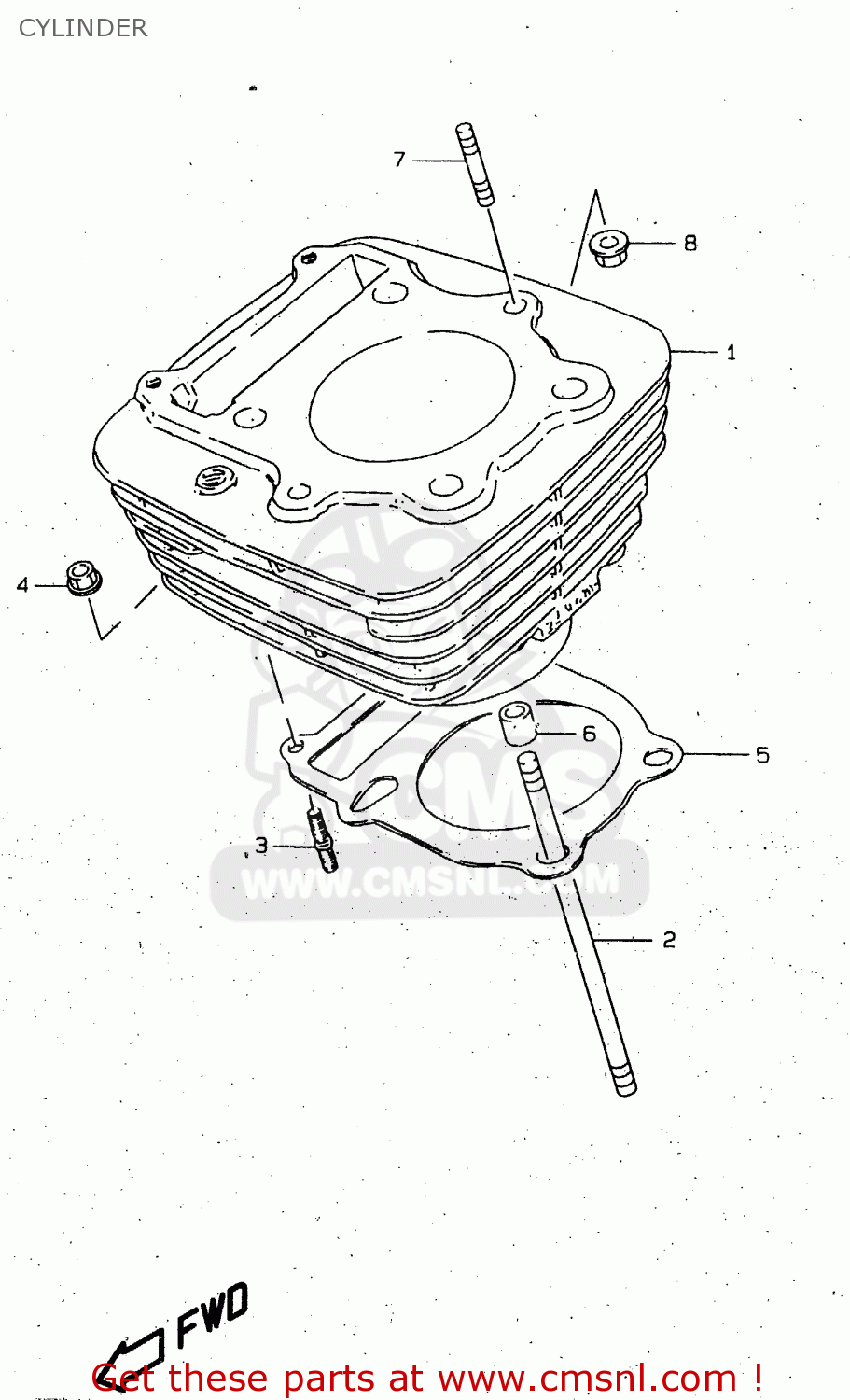

Cylinder diagram GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

CYLINDER GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

CYLINDER GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

1121038203
ref: 1

CYLINDER

€ 1,003.50

2

0910810030
ref: 2

BOLT,STUD

€ 7.50

3

0142106208
ref: 3

STUD 6X20

€ 2.50

4

0831610067
ref: 4

NUT

€ 2.00

5

1124138301
ref: 5

GASKET,CYLINDER (NAS)

€ 9.50

6

0421113189
ref: 6

PIN

€ 2.50

7

0142106307
ref: 7

BOLT,STUD

€ 2.50

8

0831610067
ref: 8

NUT

€ 2.00
