REAR COMBINATION LAMP (E1,E2,E4,E24,E34,P37,E71)

GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

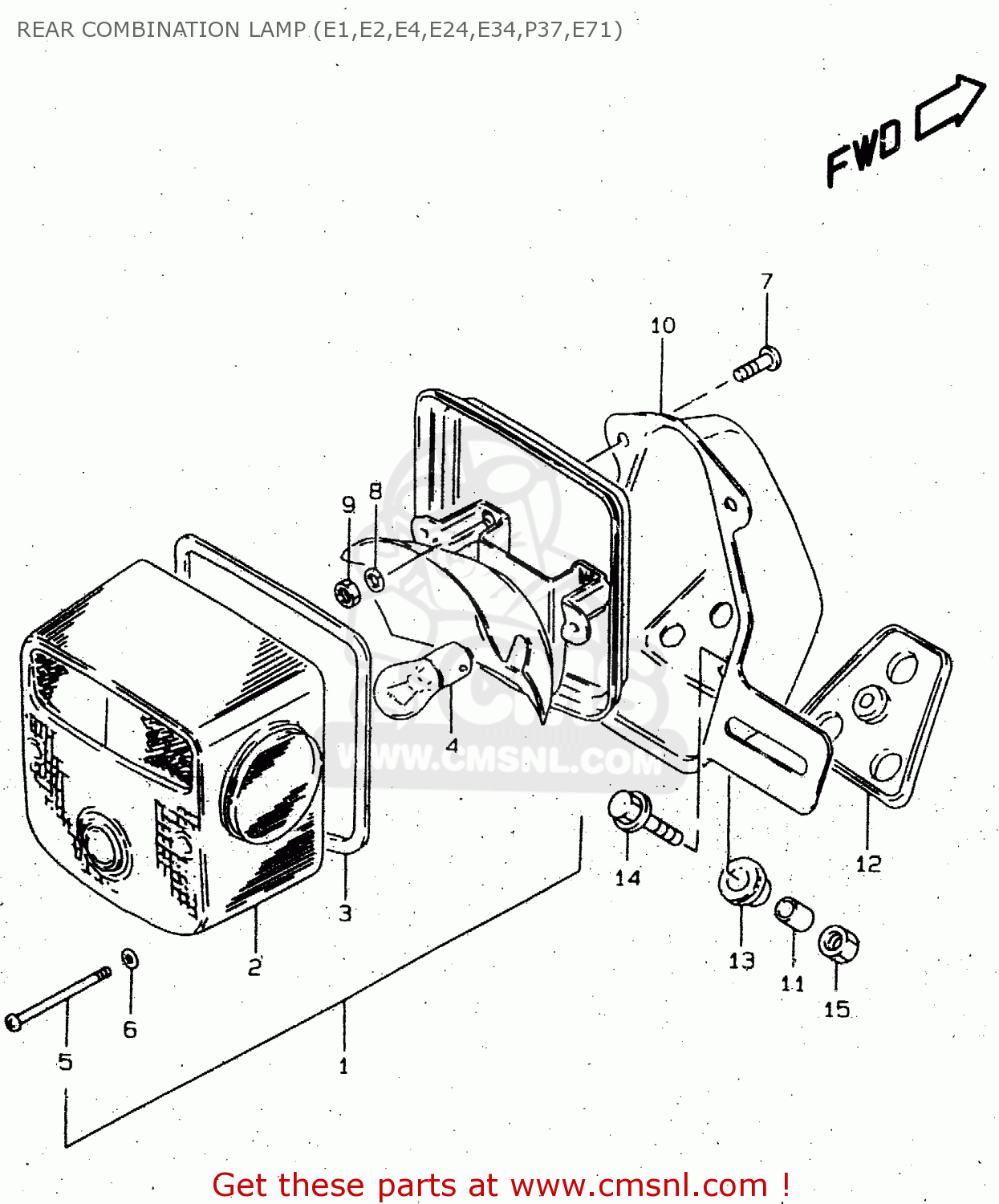

Rear combination lamp (e1,e2,e4,e24,e34,p37,e71) diagram GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

3572038350
ref: 1
E2,E4,E24,E34,E71

LAMP UNIT,RR COMBNATION

€ 138.00

3572005311999
ref: 1
E1,P37

LAMP UNIT, TAIL

€ 115.50

3571238350
ref: 2
E2,E4,E24,E34,E71

LENS

€ 66.00

3571248624
ref: 2
E1,P37

LENS,RR COMBIN

€ 66.00

3571330510
ref: 3

GASKET (NAS)

€ 6.00

0947112083
ref: 4
E2,E4,E24,E34,E71

BULB(12V21/5W)

€ 6.00

0947112035
ref: 4
E1,P37

BULB(12V23W)

€ 5.50

0912504002
ref: 5

SCREW (4X55)

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0211206127
ref: 7

SCREW

€ 2.00

0832101067
ref: 8

WASHER,LOCK

€ 2.50

0831000067
ref: 9

NUT

€ 2.50

3573038310
ref: 10

BRACKET UNIT,TAIL LAMP

€ 57.50

3576626470
ref: 11

SPACER

€ 2.00

3576526470
ref: 12

CUSHION

€ 10.00

3576426470
ref: 13

CUSHION

€ 2.50

0911606167
ref: 14

BOLT(6X20)

€ 2.00

0831000063
ref: 15

NUT 6MM

€ 2.00
