OIL PUMP

GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

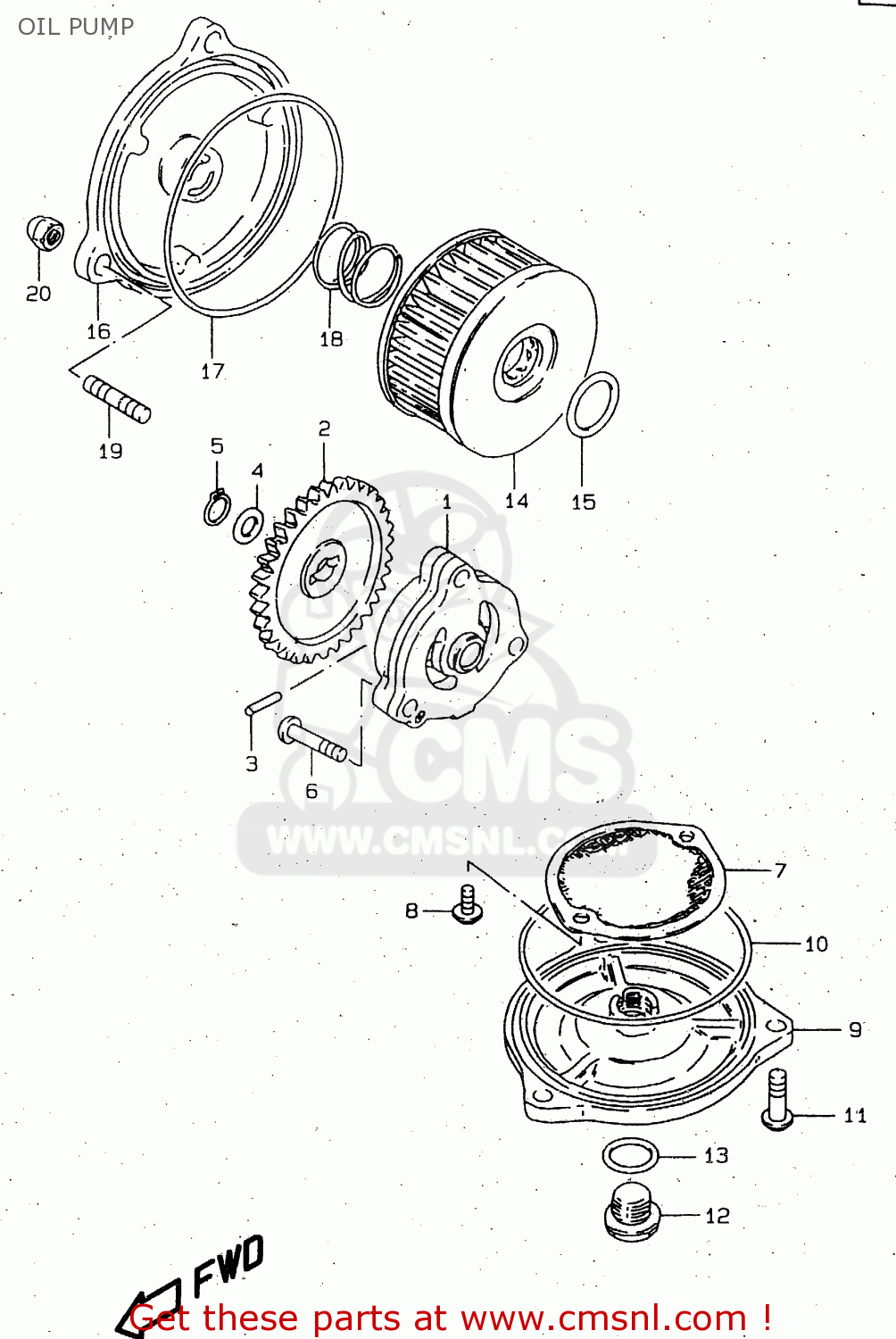

Oil pump diagram GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

OIL PUMP GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)
OIL PUMP GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)
OIL PUMP GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1840038200
ref: 1
PUMP, ENGINE OIL
€ 0.00
2
1633138200
ref: 2
GEAR,OIL PUMP DRIVEN(NT:33)
1633138200
€ 31.00
3
0926104009
ref: 3
PIN(4X15.8)
0926104009
€ 1.50
4
0822110185
ref: 4
MODEL T
SHIM
0822110185
€ 2.00
4
0918110158
ref: 4
MODEL W/X
SHIM(10X18X0.5)
0918110158
€ 2.50
5
0833131106
ref: 5
CIRCLIP,10MM
0833131106
€ 2.00
6
0211206253
ref: 6
SCREW
0211206253
€ 1.50
7
1652037400
ref: 7
STRAINER,ENGINE OIL
1652037400
€ 7.00
8
0211275123
ref: 8
SCREW
€ 2.50
9
1652338200
ref: 9
CAP,OIL STRAINER
1652338200
€ 36.00
10
0928082001
ref: 10
O RING(D:2.4,ID:85)
0928082001
€ 6.50
11
0154706203
ref: 11
SCREW
0154706203
€ 2.50
12
0924714001
ref: 12
MODEL T/W
PLUG
0924714001
€ 5.00
12
0924714026
ref: 12
MODEL X
PLUG(14X12)
0924714026
€ 3.50
13
0916814002
ref: 13
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
14
1651038240
ref: 14
FILTER ASSY,ENGINE OIL
1651038240
€ 7.50
15
0928015007
ref: 15
O RING(D:2.4,ID:15.8)
0928015007
€ 2.00
16
1651238220
ref: 16
CAP,OIL FILTER
1651238220
€ 30.00
17
0928072001
ref: 17
O RING(D:2.4,ID:73)
0928072001
€ 5.00
18
0944021006
ref: 18
SPRING
0944021006
€ 2.50
19
0142106128
ref: 19
STUD 6X12
0142106128
€ 1.50
20
0831310067
ref: 20
NUT
0831310067
€ 2.00
