HANDLE SWITCH

GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

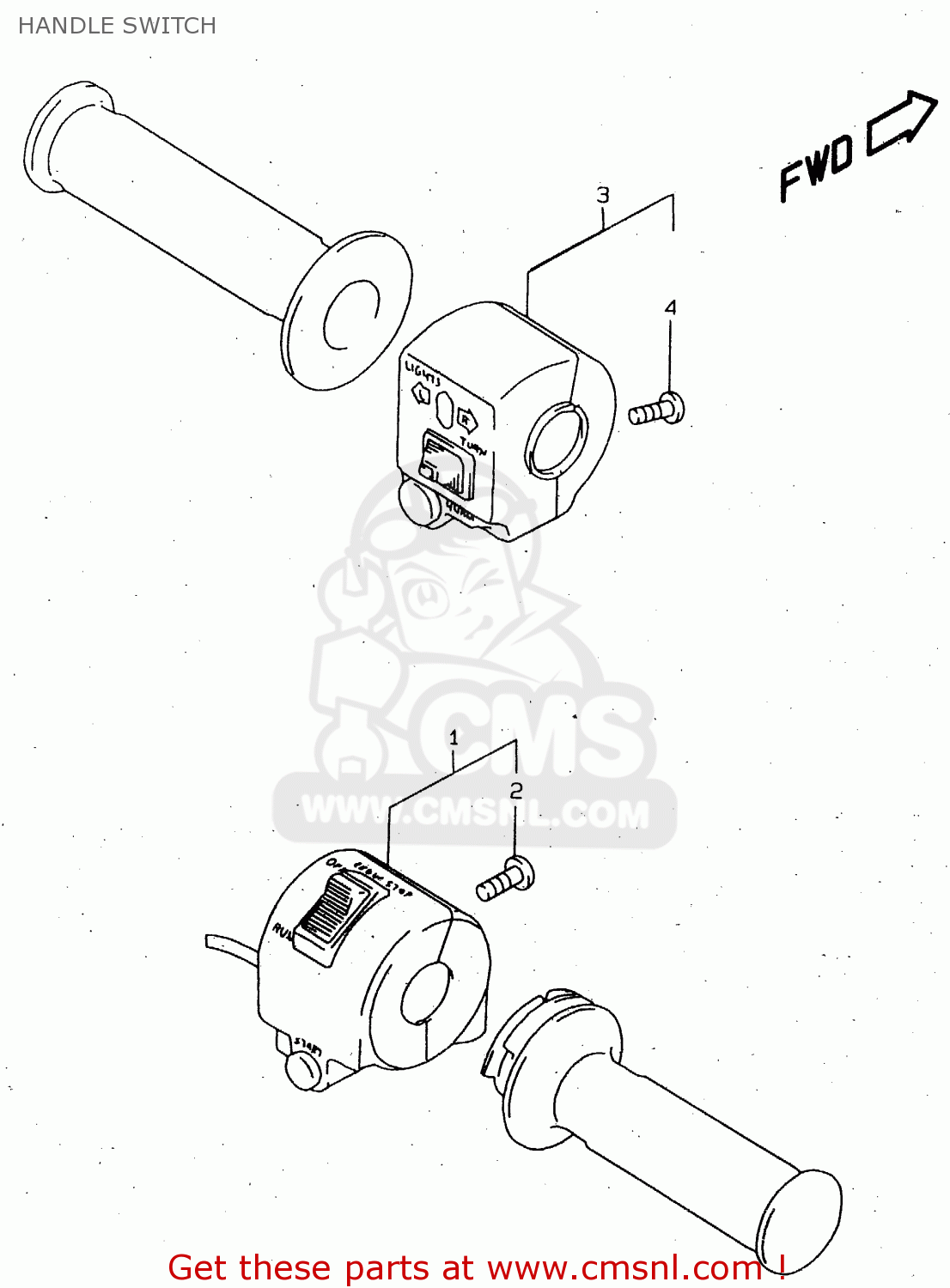

Handle switch diagram GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

HANDLE SWITCH GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

HANDLE SWITCH GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

3720049461
ref: 1
E2,E4,E22,E25,E34,E3

SWITCH ASSY,HANDLE,R

€ 124.00

1

3720049451
ref: 1
E1,P37

SWITCH ASSY,HANDLE,R

€ 107.00

1

3720049471
ref: 1
E24

SWITCH ASSY,HANDLE,R

€ 105.00

2

0912505102
ref: 2

SCREW(5X14)

€ 2.50

3

3740049113
ref: 3

SWITCH ASSY,HANDLE,L

€ 149.00

4

0211205167
ref: 4

SCREW

€ 2.50
