SEAT

GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

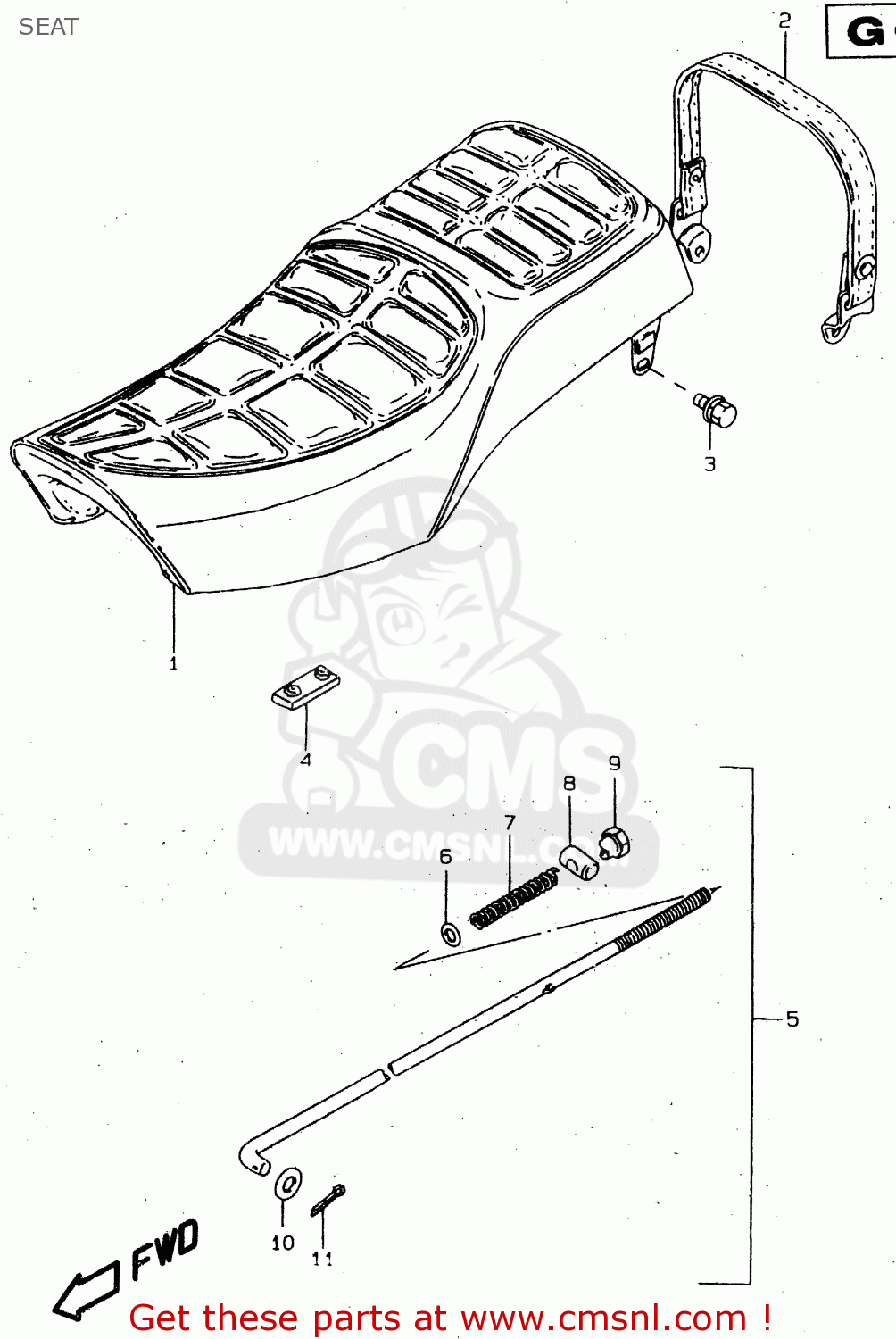

Seat diagram GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

SEAT GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

SEAT GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

451003831248H
ref: 1

SEAT ASSY

€ 288.50

2

451803831048H
ref: 2
E1,E2,E4,E24,E25,E34

BAND,SEAT GRIP

€ 27.50

3

0126408207
ref: 3

BOLT

€ 3.00

4

0932108009
ref: 4

CUSHION

€ 4.00

5

4330038300
ref: 5

ROD ASSY,RR BRAKE

€ 21.00

6

0832201063
ref: 6

WASHER

€ 2.00

7

0944009004
ref: 7

SPRING

€ 2.00

8

0920913018
ref: 8

PIN(13X18)

€ 3.50

9

0915006014
ref: 9

NUT

€ 3.50

10

0832201053
ref: 10

WASHER

€ 2.50

11

0411120208
ref: 11

PIN 20X20

€ 1.50
