REAR COMBINATION LAMP (E22)

GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

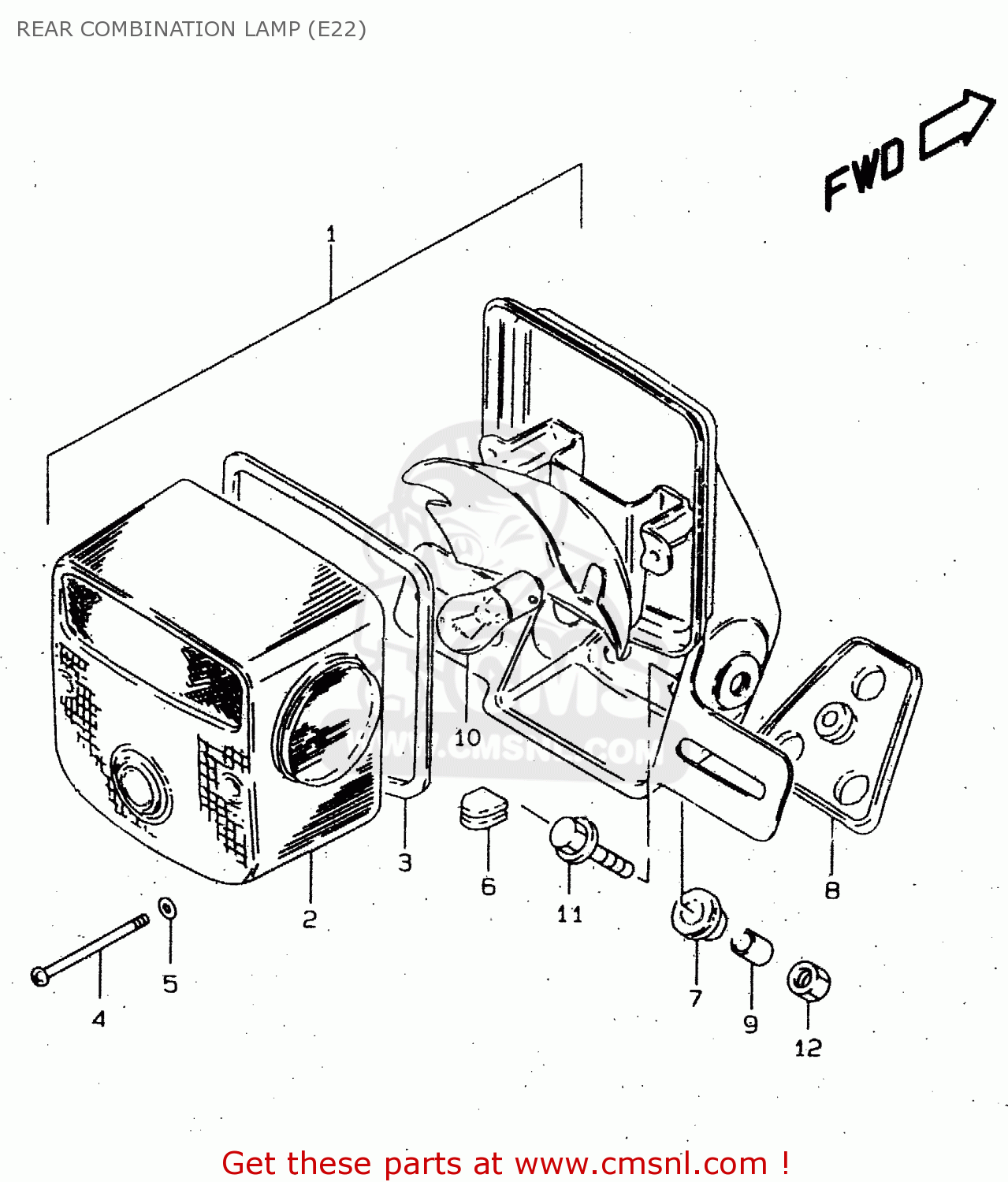

Rear combination lamp (e22) diagram GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

REAR COMBINATION LAMP (E22) GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

REAR COMBINATION LAMP (E22) GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

3571038300
ref: 1

LAMP ASSY,RR COMBINATION

€ 149.00

2

3571238350
ref: 2

LENS

€ 66.00

3

3571330510
ref: 3

GASKET (NAS)

€ 6.00

4

0912504002
ref: 4

SCREW (4X55)

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

3572830640
ref: 6

GROMMET,REAR COMBINATION LAMP

€ 3.00

7

3576426470
ref: 7

CUSHION

€ 2.50

8

3576526470
ref: 8

CUSHION

€ 10.00

9

3576626470
ref: 9

SPACER

€ 2.00

10

0947112083
ref: 10

BULB(12V21/5W)

€ 6.00

11

0911606167
ref: 11

BOLT(6X20)

€ 2.00

12

0831000063
ref: 12

NUT 6MM

€ 2.00
