FRONT WHEEL (GN250ET/EW/EX)

GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

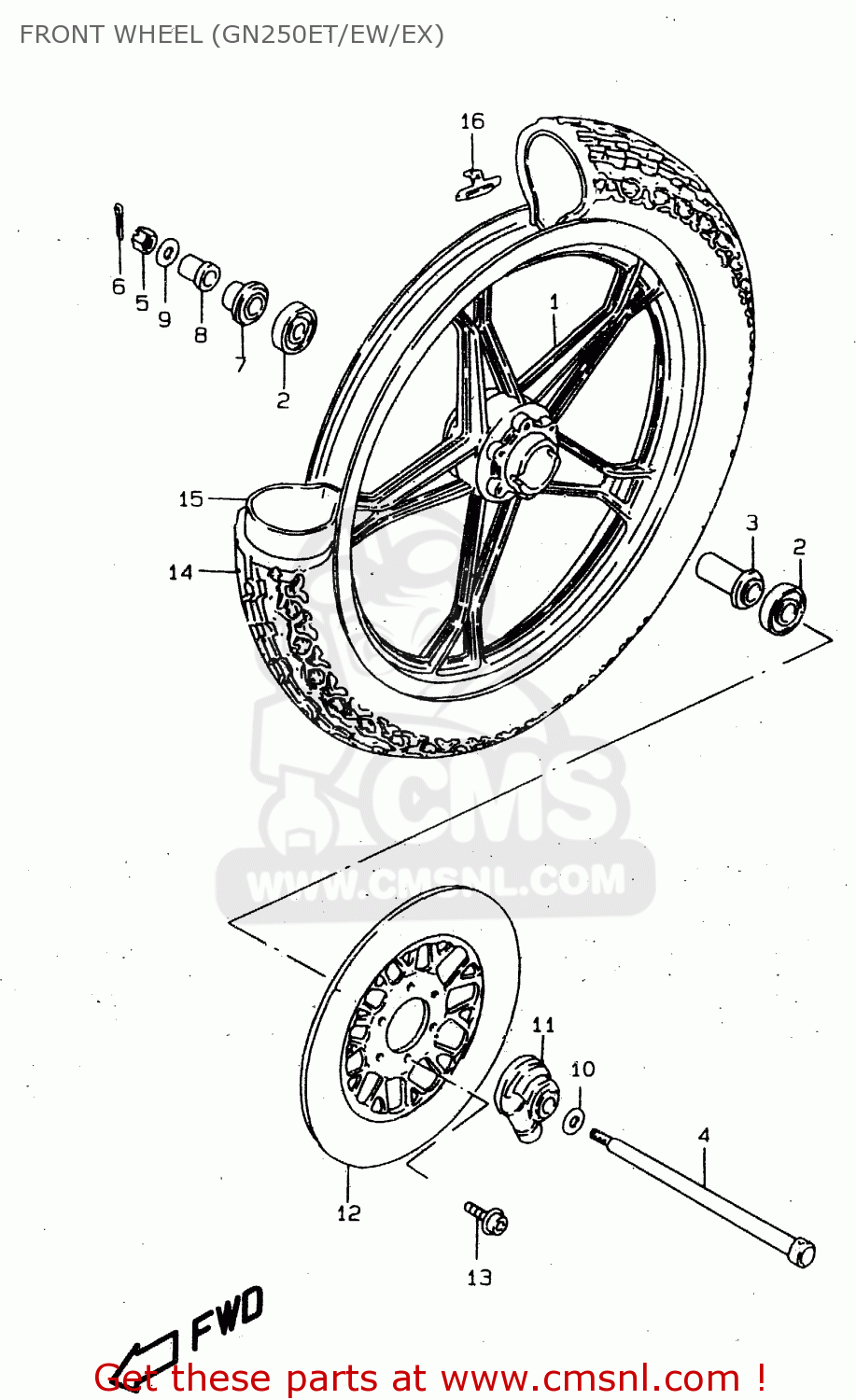

Front wheel (gn250et/ew/ex) diagram GN250 1998 (W) (E02 E04 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

5411111451291
ref: 1

WHEEL,FRONT (1.60X18)

€ 541.50

0812363027
ref: 2

BEARING

€ 19.00

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

5471149000
ref: 4

AXLE,FR

€ 79.50

0914112003
ref: 5

NUT

€ 4.50

0411130308
ref: 6

COTTER PIN

€ 1.50

5474018402
ref: 7

SPACER,FR AXLE,R

€ 18.50

5474149101
ref: 8

SPACER

€ 14.00

0832201127
ref: 9

WASHER

€ 2.00

0916015002
ref: 10

WASHER(15.5X26X2.3)

€ 2.00

5460037301
ref: 11

BOX ASSY,SPEEDOMETER GEAR

€ 90.00

5921145200
ref: 12

DISC,FR BRAKE

€ 144.00

0910608131
ref: 13

BOLT(8X30)

€ 3.50

5510044041
ref: 14

TIRE,FR(3.00-18 47S GS-11)

€ 0.00

5520011601
ref: 15

TUBE,INNER

€ 24.50

5541100A00
ref: 16

BALANCER,WHEEL (10G)

€ 6.50

5541200A01
ref: 16

BALANCER,WHEEL (20G)

€ 7.00
