CHAIN LOCK
GR650X TEMPTER 1983 (D) USA (E03)

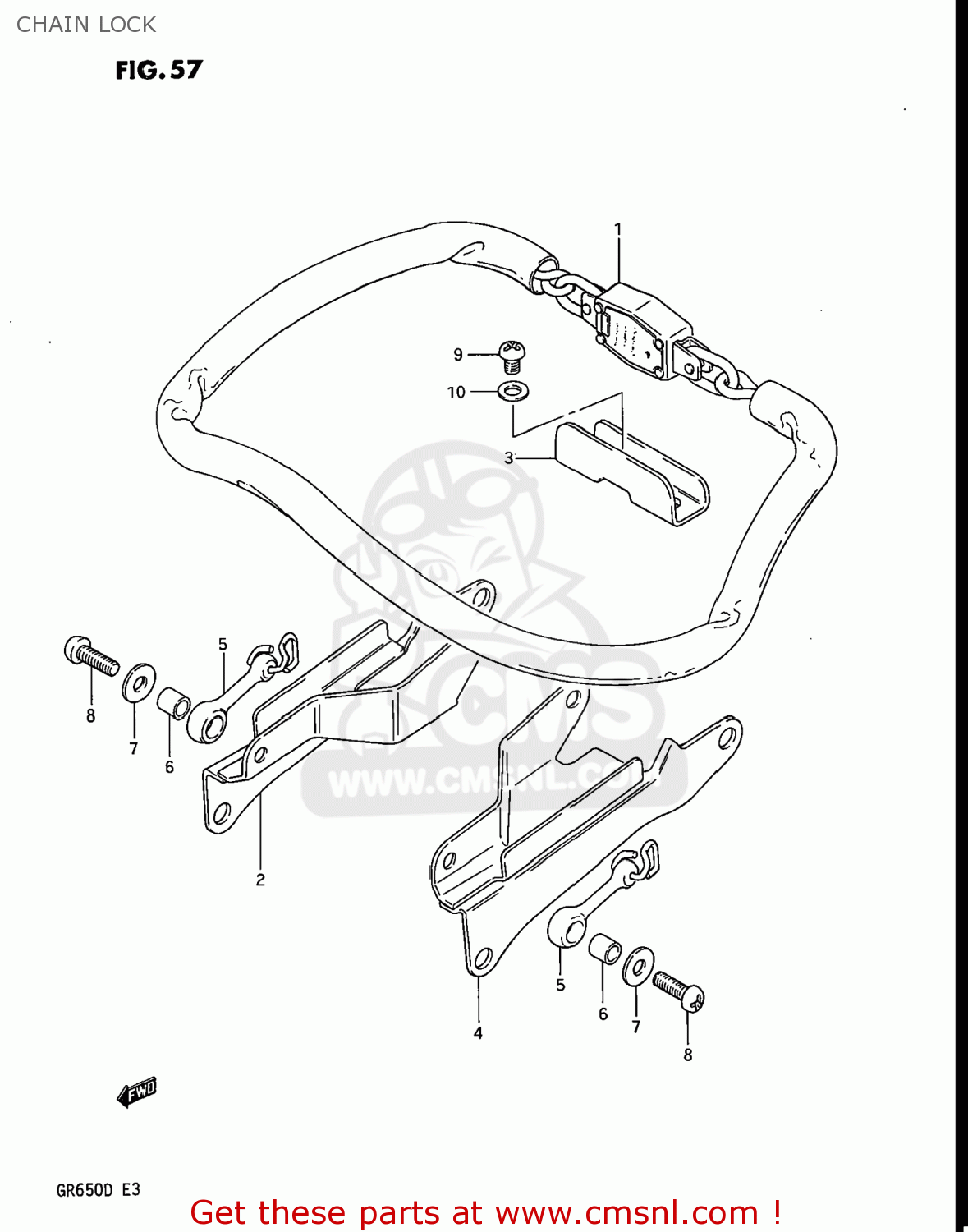

Chain lock diagram GR650X TEMPTER 1983 (D) USA (E03)
CHAIN LOCK GR650X TEMPTER 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
9414015505KEY
ref: 1
94100-27821
LOCK ASSY, CHAIN
€ 53.50
2
9416015500
ref: 2
94160-15501
HOLDER, RH
€ 4.50
3
9416615500
ref: 3
HOLDER, REAR
€ 0.00
4
9417015500
ref: 4
94170-15501
HOLDER, LH
€ 4.50
5
0946200080
ref: 5
BAND
€ 5.50
6
0918006011
ref: 6
09180-06263
SPACER (6.1X9X9)
€ 2.00
7
0916006007
ref: 7
09160-06084
WASHER
€ 2.00
8
0211206208
ref: 8
02112-06207
SCREW
€ 2.00
9
0211206108
ref: 9
02112-06107
SCREW
€ 1.50
10
0832221068
ref: 10
08322-01067
WASHER
€ 2.00
