STARTER CLUTCH

GR650X TEMPTER 1983 (D) USA (E03)

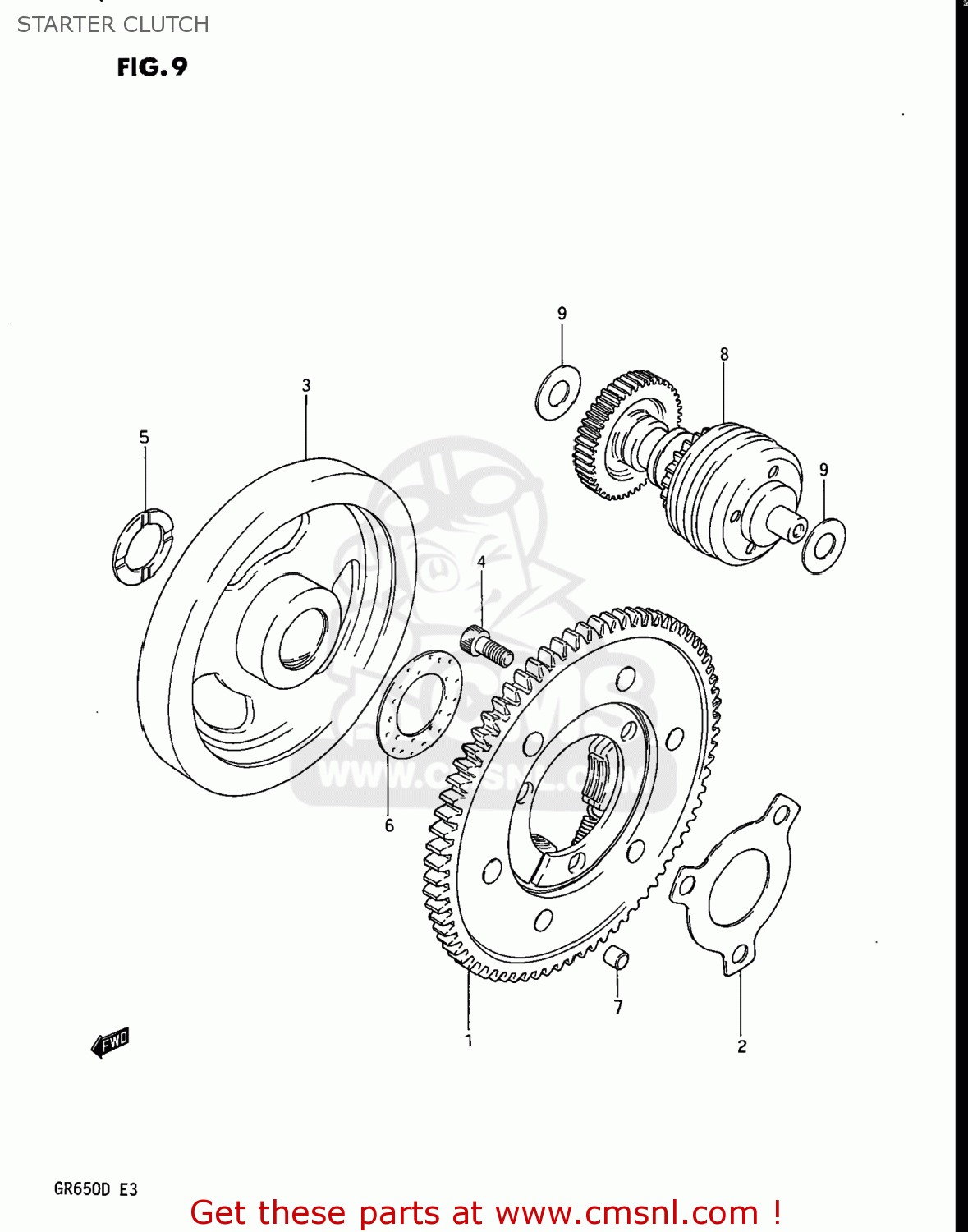

Starter clutch diagram GR650X TEMPTER 1983 (D) USA (E03)

STARTER CLUTCH GR650X TEMPTER 1983 (D) USA (E03)

STARTER CLUTCH GR650X TEMPTER 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1262515502
ref: 1
12625-15505

GEAR,STARTER

€ 181.00

2

1264815500
ref: 2

SHIM

€ 0.00

3

1265515501
ref: 3

FLYWHEEL,CLUTCH

€ 87.00

4

0910608006
ref: 4
07130-0816A

BOLT

€ 3.00

5

0916027005
ref: 5

WASHER(27X40X2.5)

€ 10.00

6

0916027006
ref: 6

WASHER (27X48X1)

€ 0.00

7

0926106004
ref: 7

PIN(6X8.8)

€ 1.50

8

3137015510
ref: 8

PINION GEAR ASSEMBLY,STARTER

€ 233.50

9

3137115510
ref: 9
08211-12241

SHIM

€ 2.00
