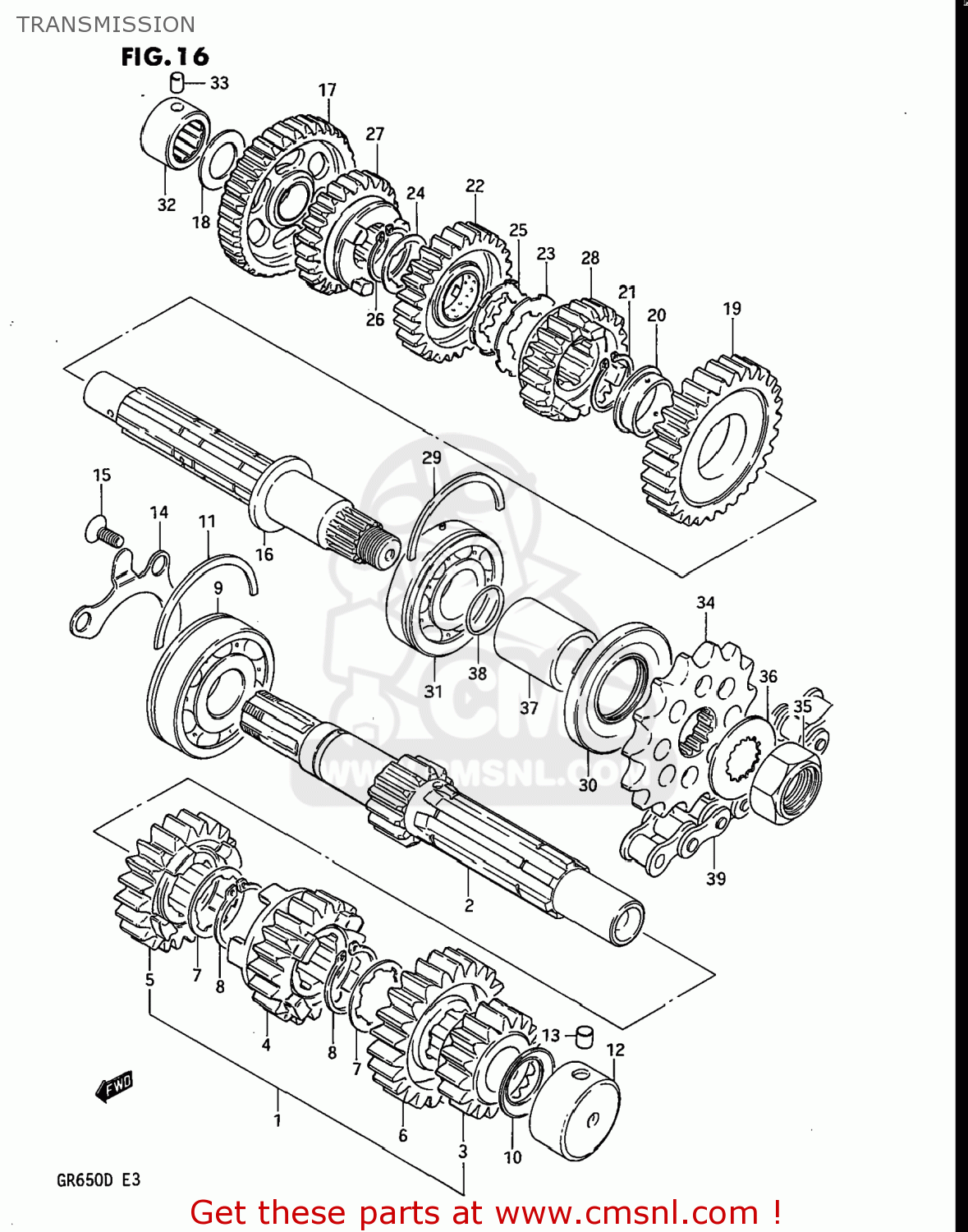

TRANSMISSION

ref

part #

description

quantity

1

2412015500
ref: 1

SHAFT,COUNTER

€ 0.00

2

2412115500
ref: 2

SHAFT,COUNTER

€ 162.50

3

2422115500
ref: 3

GEAR,SECOND DRIVE

€ 86.00

4

2423115501
ref: 4
24231-15502

GEAR,THIRD DRIVE

€ 91.00

5

2424015500
ref: 5

GEAR,FOURTH DRIVE

€ 73.50

6

2425115500
ref: 6

GEAR,FIFTH DRIVE

€ 106.00

7

0916725012
ref: 7

WASHER,LOCK

€ 3.50

8

0938025003
ref: 8

RING,SNAP

€ 3.00

9

0926225051
ref: 9
09262-25105

BEARING(25X62X17)

€ 59.50

10

0928520006
ref: 10

SEAL,OIL(20X31.2X2.7)

€ 7.00

11

0939062006
ref: 11
09390-62012

C-RING

€ 5.00

12

0926320049
ref: 12

BEARING(20X34X17.5)

€ 58.00

13

0422107129
ref: 13

PIN

€ 1.50

14

2474115500
ref: 14

RETAINER,BEARING

€ 0.00

15

0212206168
ref: 15
02122-06167

SCREW

€ 2.00

16

2413115500
ref: 16
24131-15501

SHAFT,DRIVE

€ 153.00

17

2431015500
ref: 17

GEAR,FIRST DRIVEN

€ 86.00

18

0821120341
ref: 18

WASHER

€ 2.00

19

2432115500
ref: 19

GEAR,SECOND DRIVEN

€ 0.00

20

0930125001
ref: 20
24322-19F00

BUSHING

€ 12.50

21

0938025003
ref: 21

RING,SNAP

€ 3.00

22

2433015500
ref: 22

GEAR,THIRD DRIVEN

€ 106.00

23

0916725013
ref: 23

WASHER,LOCK

€ 2.50

24

0916725012
ref: 24

WASHER,LOCK

€ 3.50

25

0916925001
ref: 25

WASHER

€ 2.00

26

0938025003
ref: 26

RING,SNAP

€ 3.00

27

2434115501
ref: 27
24341-15502

GEAR,FOURTH DRIVEN

€ 79.50

28

2435115500
ref: 28

GEAR,FIFTH DRIVEN

€ 91.00

29

0939062006
ref: 29
09390-62012

C-RING

€ 5.00

30

0928332024
ref: 30

SEAL,OIL(32X62X7)

€ 15.00

31

0926225051
ref: 31
09262-25105

BEARING(25X62X17)

€ 59.50

32

0926320040
ref: 32

BEARING(20X34X20)

€ 42.50

33

0422107129
ref: 33

PIN

€ 1.50

34

2751115500
ref: 34
27511-33200

SPROCKET,ENGINE

€ 24.50

35

0915918005
ref: 35

NUT

€ 9.50

36

0916722012
ref: 36

WASHER,LOCK

€ 1.50

37

0918025065
ref: 37

SPACER (25X32X33.7)

€ 0.00

38

0928025001
ref: 38

O RING(D:1,ID:24.5)

€ 2.50

39

2760015511
ref: 39
27600-17C20-106

CHAIN ASSEMBLY,DRIVE

€ 258.00
