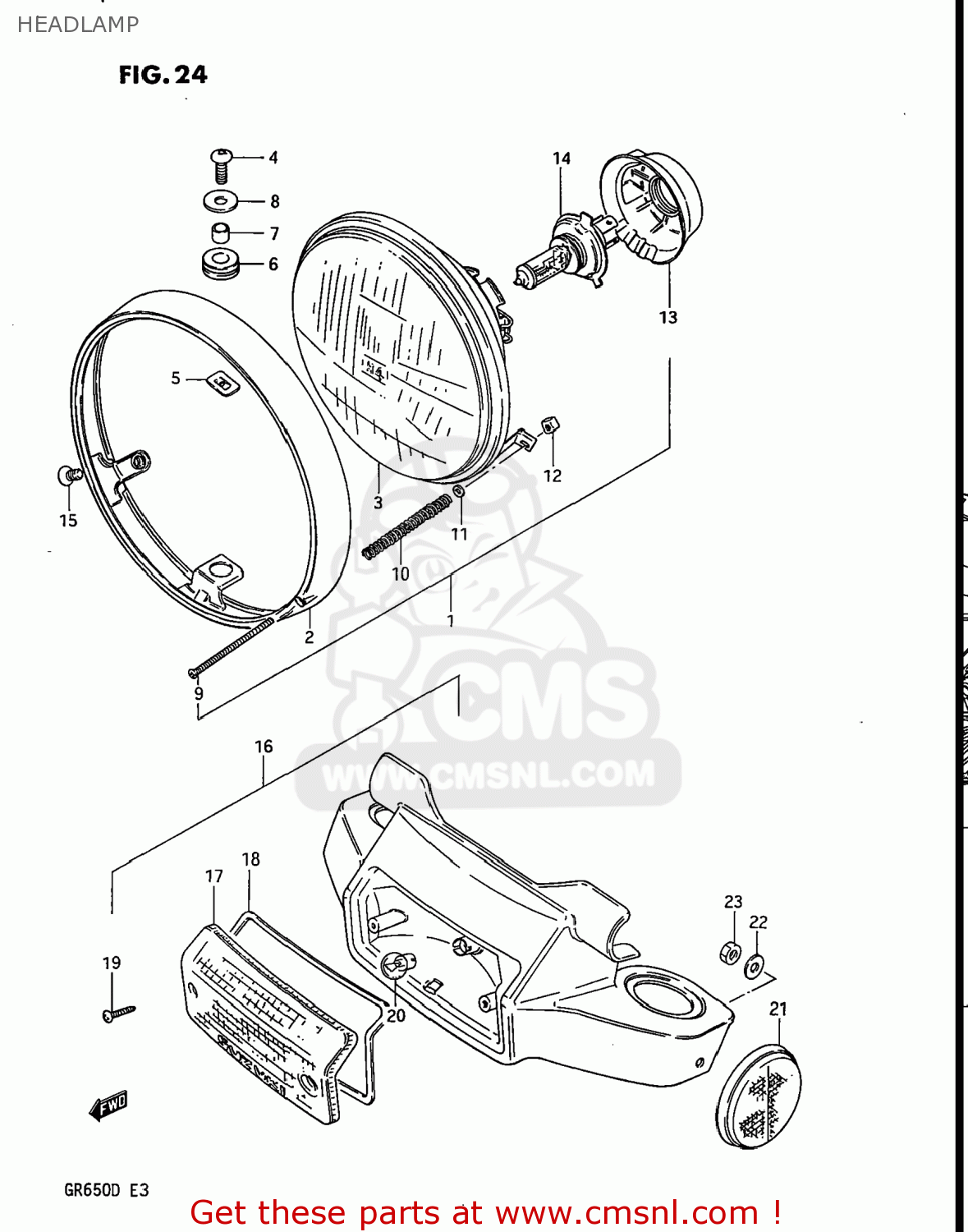

HEADLAMP

ref

part #

description

quantity

1

3510015530999
ref: 1
35100-05A30-999

LAMP ASSEMBLY,HEAD

€ 237.00

2

3511115530
ref: 2

RIM,HEAD LAMP

€ 56.50

3

3512115530
ref: 3
35121-05A30

LAMP UNIT

€ 205.50

4

0912505102
ref: 4

SCREW(5X14)

€ 2.50

5

3515548510
ref: 5

NUT

€ 2.00

6

3513945230
ref: 6

CUSHION

€ 1.50

7

3513345230
ref: 7

SPACER

€ 2.00

8

3513845230
ref: 8
09160-05045

WASHER

€ 2.00

9

3515115510
ref: 9
09125-04020

SCREW,HEADLAMP ADJUST

€ 3.00

10

3515427630
ref: 10

SPRING,HEADLAMP ADJUST

€ 3.50

11

3515727630
ref: 11

WASHER

€ 2.50

12

3513545600
ref: 12

NUT

€ 3.00

13

3517345200
ref: 13

COVER,SOCKET

€ 14.00

14

0947112060
ref: 14

BULB(12V60/55W,H4)

€ 8.00

15

0912705013
ref: 15

SCREW(5X12)

€ 2.50

16

3611015530
ref: 16
36110-15580-999

LAMP ASSEMBLY,FRONT POSITION

€ 130.00

17

3611215500
ref: 17
36112-15510

LENS

€ 15.50

18

3611315500
ref: 18

GASKET,POSITION LAMP

€ 0.00

19

3611715500
ref: 19

SCREW,POSITION LENS

€ 1.50

20

0947112032
ref: 20
09471-12063

BULB

€ 6.00

21

3595049080
ref: 21

REFLEX REFLECTOR,RR

€ 17.50

22

0832221058
ref: 22
08322-01057

WASHER

€ 2.50

23

0831011058
ref: 23
08310-00057

NUT

€ 2.50

all assemblies
