REAR BRAKE
GR650X TEMPTER 1983 (D) USA (E03)

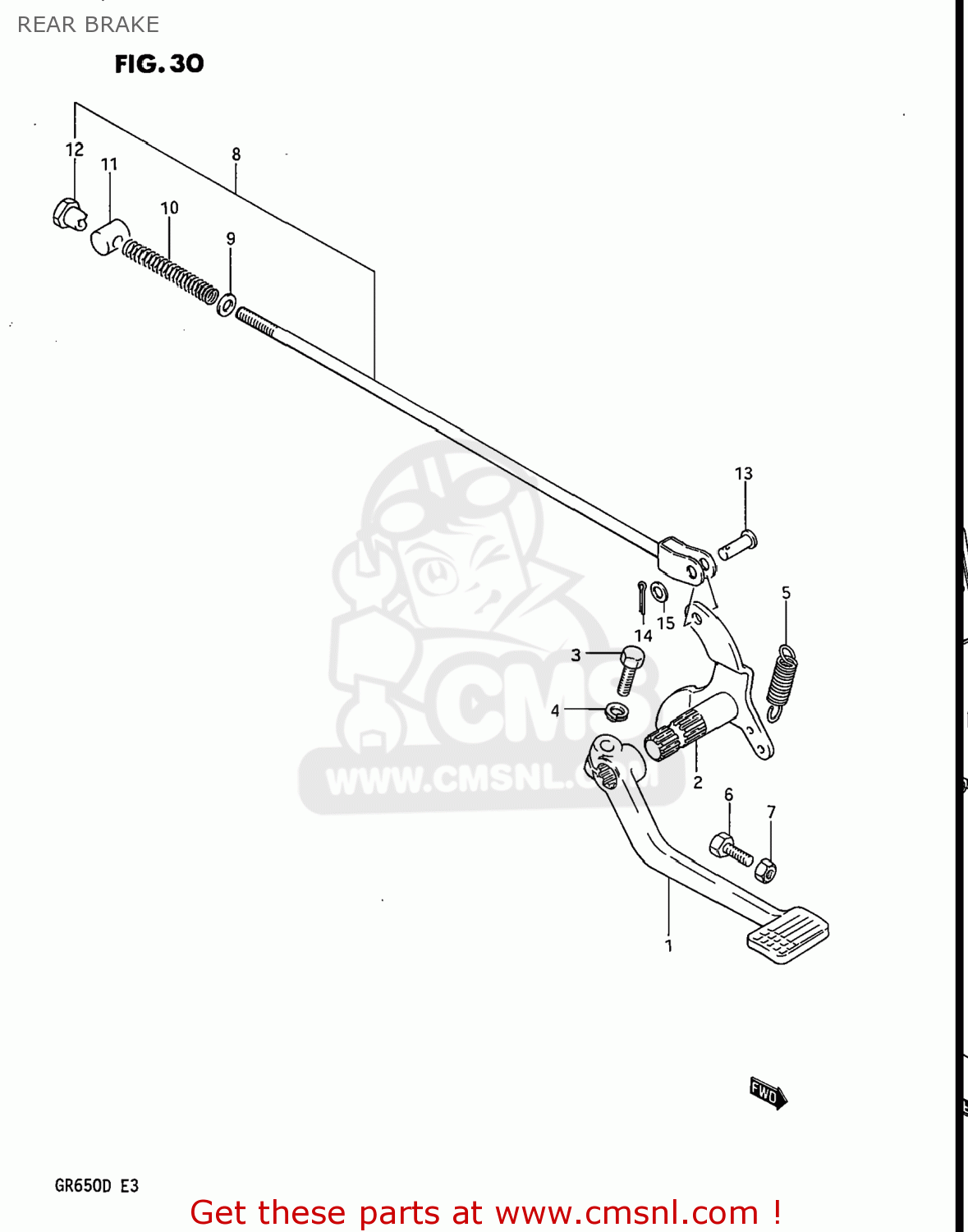

Rear brake diagram GR650X TEMPTER 1983 (D) USA (E03)
REAR BRAKE GR650X TEMPTER 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4311115500
ref: 1
PEDAL,BRAKE
€ 65.00
2
4312015500
ref: 2
ARM,BRAKE ROD
€ 25.50
3
0120408257
ref: 3
BOLT
€ 2.00
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
0944314013
ref: 5
SPRING
€ 21.50
6
0910006009
ref: 6
BOLT(6X23)
€ 1.50
7
0831011068
ref: 7
08310-00067
NUT
€ 2.50
8
4330015500
ref: 8
ROD ASSEMBLY,REAR BRAKE
€ 13.00
9
0832221068
ref: 9
08322-01067
WASHER
€ 2.00
10
0944009004
ref: 10
SPRING
€ 2.00
11
0920913005
ref: 11
09209-13018
PIN
€ 3.50
12
0915006009
ref: 12
09150-06010
NUT (6MM)
€ 3.50
13
0920006013
ref: 13
PIN(L:13.5)
€ 2.00
14
0411120208
ref: 14
04111-2020A
PIN 20X20
€ 1.50
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
