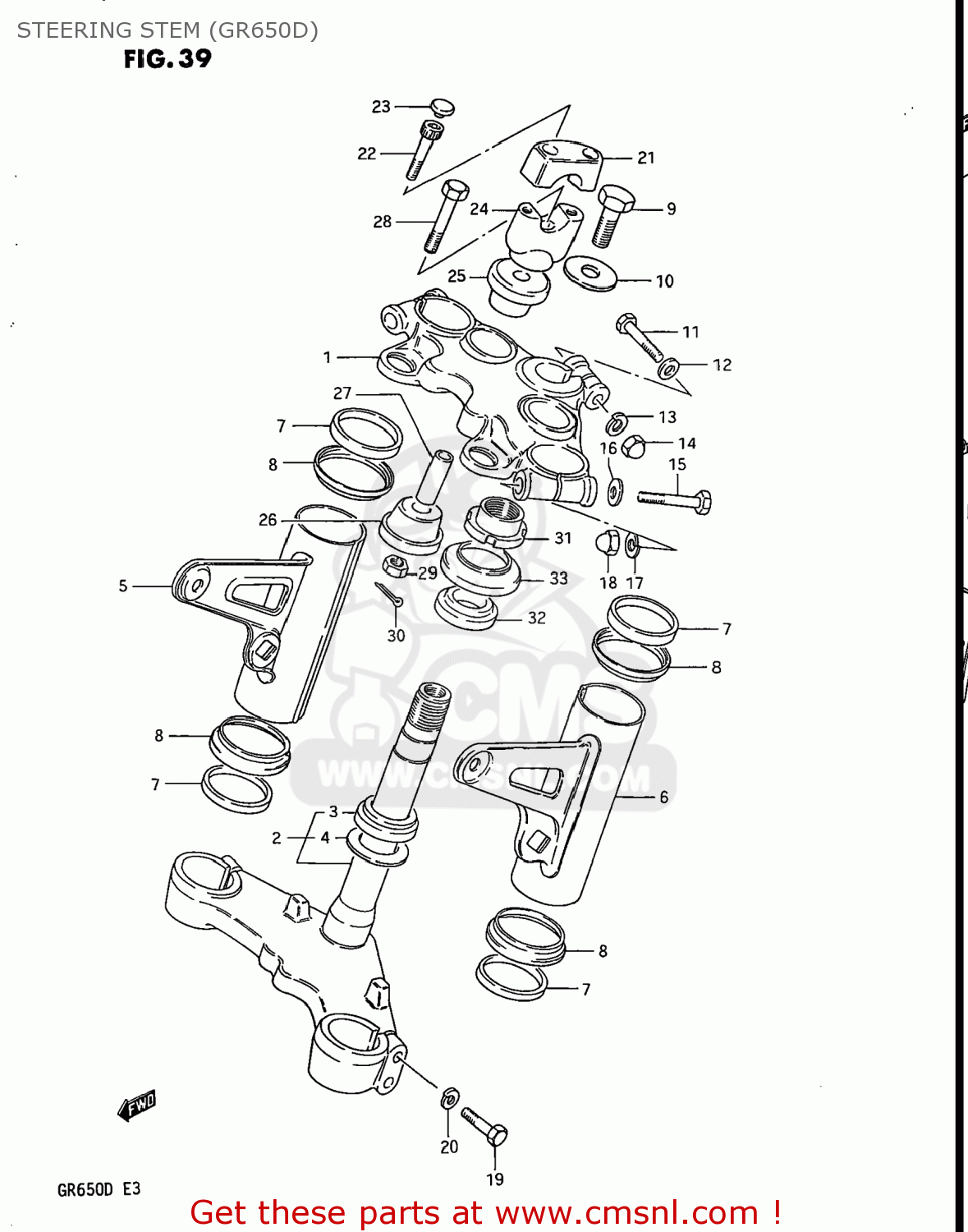

STEERING STEM (GR650D)

ref

part #

description

quantity

1

513111550015T
ref: 1

HEAD,STEERING STEM

€ 145.50

2

5141015500
ref: 2
51410-15520

STEM,STEERING

€ 259.00

3

0926530005
ref: 3
09265-30009

BEARING

€ 49.50

4

0821130402
ref: 4
09181-30184

WASHER,THRUST

€ 4.00

5

5153015500
ref: 5
51500-15840

BRACKET COMP,HEADLAMP

€ 89.00

6

5154015500
ref: 6

BRACKET,HEADLAMP,LEFT

€ 96.00

7

5155533300
ref: 7

CUSHION,HEADLAMP BRACKET

€ 4.00

8

5155633300
ref: 8

CAP,HEADLAMP BRACKET

€ 0.00

9

5135209300
ref: 9
51352-31305

BOLT,STEERING STEM HEAD

€ 11.50

10

5135609300
ref: 10
51356-43530

WASHER

€ 4.00

11

0110708508
ref: 11
01500-08507

BOLT 8X50

€ 3.00

12

0832221088
ref: 12
08322-01087

WASHER

€ 2.00

13

0832121088
ref: 13
08321-01087

LOCK WASHER

€ 2.00

14

0831311085
ref: 14
08313-10083

NUT,M8X1.25X12

€ 2.00

15

0110710555
ref: 15
01500-1055A

BOLT 10X55

€ 3.50

16

0832221105
ref: 16
08322-0110A

WASHER 10MM

€ 2.50

17

0832121105
ref: 17
08321-0110A

LOCK WASHER

€ 3.00

18

0914510002
ref: 18

NUT

€ 4.00

19

0110708405
ref: 19
01500-0840A

BOLT 8X40

€ 3.00

20

0832121085
ref: 20
08321-0108A

LOCK WASHER

€ 2.50

21

5621115500291
ref: 21

CLAMP,HANDLE BAR,UPPER

€ 9.50

22

0910608013
ref: 22
07130-0830A

BOLT

€ 3.00

23

0925006004
ref: 23

CAP(OD:14.5)

€ 1.50

24

562211550015T
ref: 24

CLAMP,HANDLE BAR,LOWER

€ 24.00

25

5624015500
ref: 25

CUSHION,LWR

€ 26.00

26

5624015500
ref: 26

CUSHION,LWR

€ 26.00

27

0918010065
ref: 27

SPACER(10.2X14X46)

€ 4.50

28

0910110025
ref: 28

BOLT(10X78)

€ 4.00

29

0831921108
ref: 29
09159-10027

NUT

€ 3.00

30

0411120308
ref: 30
04111-2030A

COTTER PIN

€ 1.00

31

5163134200
ref: 31

NUT,STEERING STEM

€ 23.00

32

0926525008
ref: 32
09265-25019

TAPER,ROLLER BEARING

€ 48.50

33

5164340502
ref: 33

DUST SEAL,STEERING UPR

€ 8.00

33

5164340502
ref: 33

DUST SEAL,STEERING UPR

€ 8.00
