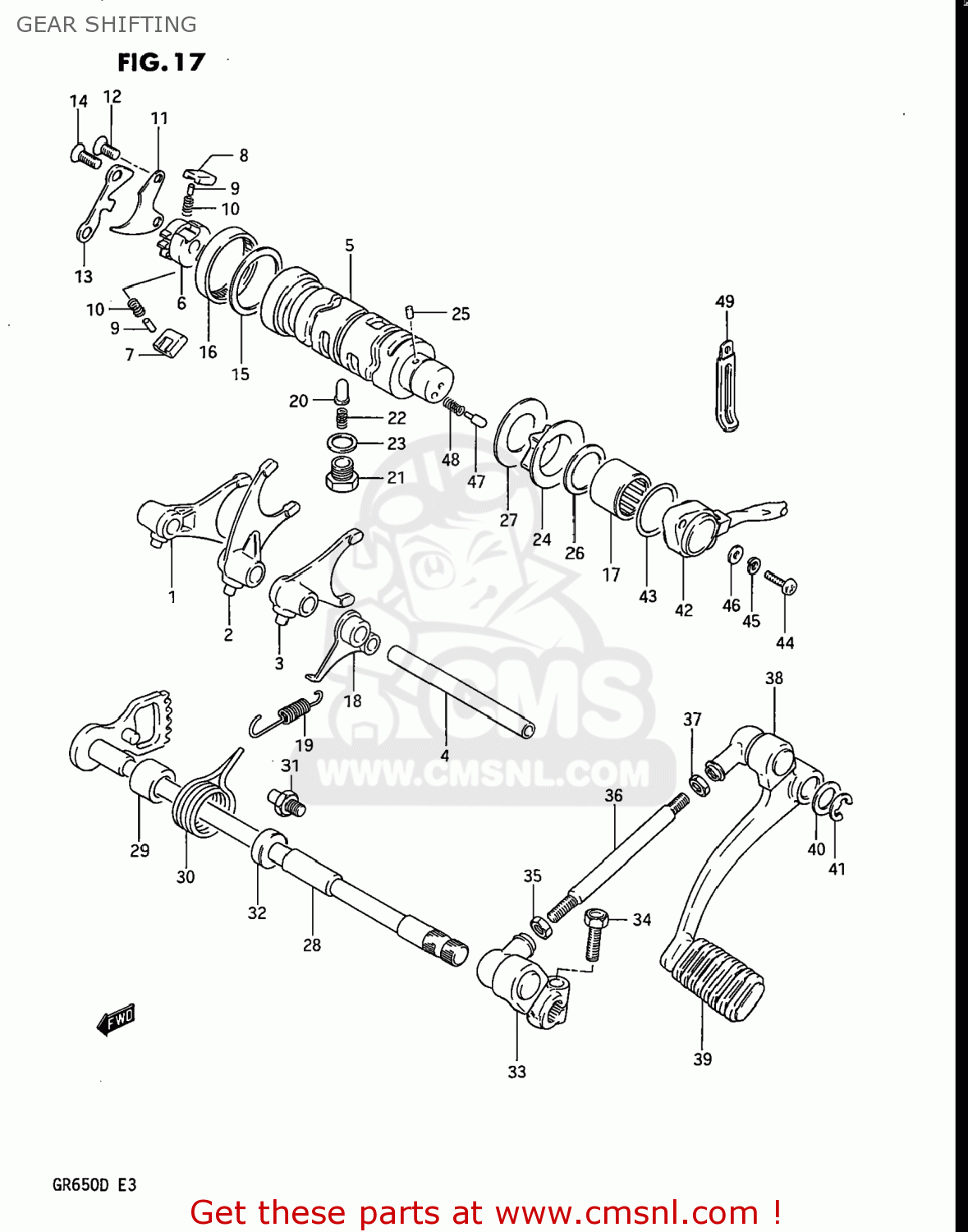

GEAR SHIFTING

ref

part #

description

quantity

1

2521115500
ref: 1

FORK,GEAR SHIFT NO.1

€ 49.00

2

2522115500
ref: 2
25221-15501

FORK,GEAR SHIFT NO.2

€ 35.00

3

2523115500
ref: 3

FORK,GEAR SHIFT NO.3

€ 41.50

4

2541115501
ref: 4
25411-15510

SHAFT,GEAR SHIFT FORK

€ 16.50

5

2531015500
ref: 5

CAM,GEAR SHIFT

€ 145.00

6

2532231300
ref: 6
25322-31310

RETAINER,GEAR SHIFT CAM

€ 14.50

7

2532311000
ref: 7
25323-34201

PAWL,GEAR SHIFT NO.1

€ 6.00

8

2532411000
ref: 8
25324-34201

PAWL,GEAR SHIFT NO.2

€ 6.00

9

0926105003
ref: 9

PIN(5X8)

€ 1.50

10

0944004003
ref: 10

SPRING

€ 1.50

11

2533115500
ref: 11
25331-15501

LIFTER,GEAR SHIFT PAWL

€ 3.00

12

0212206128
ref: 12
02122-06127

SCREW

€ 3.00

13

2534109300
ref: 13

GUIDE,GEAR SHIFT CAM

€ 6.00

14

0212206168
ref: 14
02122-06167

SCREW

€ 2.00

15

0916040006
ref: 15

WASHER (40X49X1)

€ 1.50

16

0926343001
ref: 16

BEARING(43X49X12)

€ 30.00

17

0926325018
ref: 17

BEARING(25X32X12)

€ 17.50

18

2535015500
ref: 18

STOPPER,GEAR SHIFTING

€ 9.50

19

0944308034
ref: 19

SPRING

€ 3.00

20

2535131300
ref: 20
25351-30010

STOPPER,GEAR SHIFTING

€ 6.50

21

2535430000
ref: 21

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

22

0944006027
ref: 22

SPRING

€ 3.00

23

0916814004
ref: 23

GASKET(14X19.2X2) (NAS)

€ 2.50

24

2538104700
ref: 24

PLATE,GEAR SHIFT CAM STOPPER

€ 13.00

25

0621104063
ref: 25
04221-04069

PIN 4X6

€ 2.00

26

0821125322
ref: 26

WASHER

€ 3.00

27

0916730007
ref: 27

WASHER,LOCK

€ 2.50

28

2551015500
ref: 28

SHAFT,GEAR SHIFT

€ 62.00

29

0918012068
ref: 29

SPACER(12X20X15.3)

€ 3.00

30

0944426017
ref: 30

SPRING

€ 5.00

31

2567101000
ref: 31
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.00

32

0928512002
ref: 32
09285-12006

OIL SEAL

€ 7.00

33

2552015501
ref: 33

ARM,GEAR SHIFT

€ 64.00

34

0110706208
ref: 34
01500-06207

BOLT

€ 2.00

35

0831011068
ref: 35
08310-00067

NUT

€ 2.50

36

2552534300
ref: 36
25525-12B00

ROD,GEAR SHIFT LINK

€ 12.00

37

0914006011
ref: 37

NUT

€ 1.50

38

2560015501
ref: 38

LEVER ASSEMBLY,GEAR SHIFTING

€ 57.50

39

2565249300
ref: 39

RUBBER,PEDAL

€ 5.50

40

0916012011
ref: 40

WASHER(12.5X20X1)

€ 1.50

41

0833131128
ref: 41
08331-3112A

CIRCLIP

€ 2.00

42

3772033200
ref: 42
37720-45100

BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL

€ 92.50

43

0928026003
ref: 43
09280-26005

O-RING (D:2.4 ID:26.2)

€ 2.50

44

0211205208
ref: 44
02112-05207

SCREW 5X20

€ 3.00

45

0832121058
ref: 45
08321-0105A

LOCK WASHER

€ 2.00

46

0832221058
ref: 46
08322-01057

WASHER

€ 2.50

47

0920905011
ref: 47

PIN(5X15.5)

€ 2.00

48

0944004010
ref: 48

SPRING

€ 1.50

49

0940406412
ref: 49
09404-06432

CLAMP

€ 2.50
