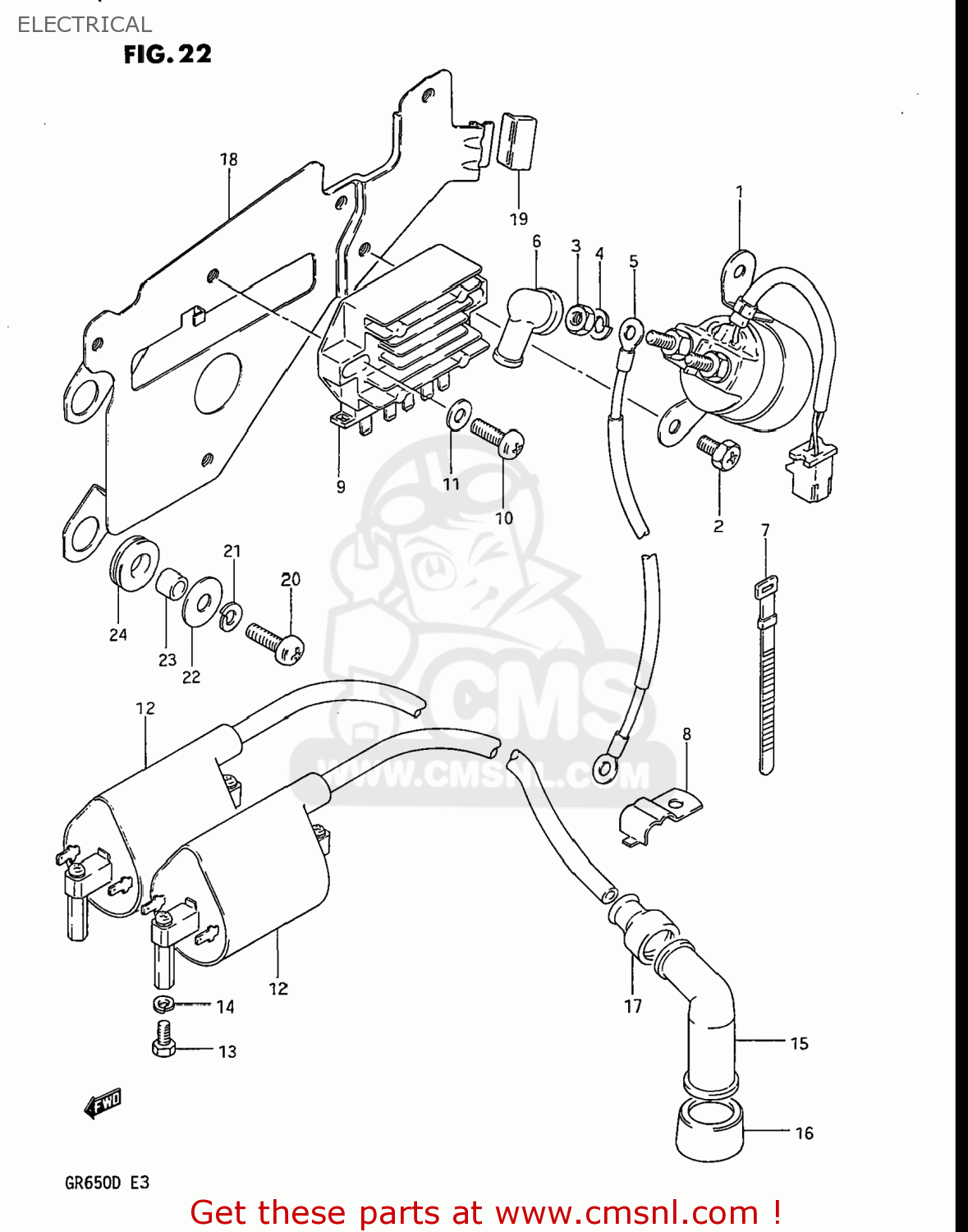

ELECTRICAL

ref

part #

description

quantity

1

3180031300
ref: 1
31800-15501

RELAY ASSEMBLY,STARTING MOTOR

€ 78.00

2

0912806004
ref: 2
09128-06044

SCREW(6X10)

€ 1.50

3

0831022068
ref: 3
08310-00067

NUT 6MM

€ 2.50

4

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

5

3385034301
ref: 5
33850-48B00

CABLE,STARTING MOTOR

€ 50.00

6

3186105300
ref: 6
31861-48B10

CAP,STARTER MOTOR TERMINAL

€ 4.50

7

0940708401
ref: 7
09407-14403

CLAMP(L:80)

€ 2.50

8

0940305301
ref: 8

CLAMP

€ 0.00

9

3280044130
ref: 9
32800-33401

RECTIFIER ASSEMBLY

€ 235.00

10

0211206208
ref: 10
02112-06207

SCREW

€ 2.00

11

0832221068
ref: 11
08322-01067

WASHER

€ 2.00

12

3341011911
ref: 12

COIL ASSY,IGNITION

€ 149.50

13

0110405108
ref: 13
01500-0510B

BOLT

€ 1.50

14

0832121058
ref: 14
08321-0105A

LOCK WASHER

€ 2.00

15

3351022010
ref: 15
33510-97313

CAP ASSY,SPARK PLUG

€ 16.50

16

3354138210
ref: 16

SEAL,SPARK PLUG

€ 7.00

17

3354298000
ref: 17
33542-38B00

SEAL,SPARK PLU

€ 4.50

18

4742015500
ref: 18

PLATE, PARTS HOLDER

€ 0.00

19

4711702400
ref: 19

CUSHION,FRAME COVER

€ 2.00

20

0211206168
ref: 20
02112-06167

SCREW

€ 2.50

21

0832121068
ref: 21
08321-01067

LOCK WASHER

€ 2.50

22

0916006007
ref: 22
09160-06084

WASHER

€ 2.00

23

0918006027
ref: 23
09180-06258

SPACER (6.3X9.1X6.7)

€ 3.00

24

0932008007
ref: 24
09320-08021

CUSHION

€ 4.00
