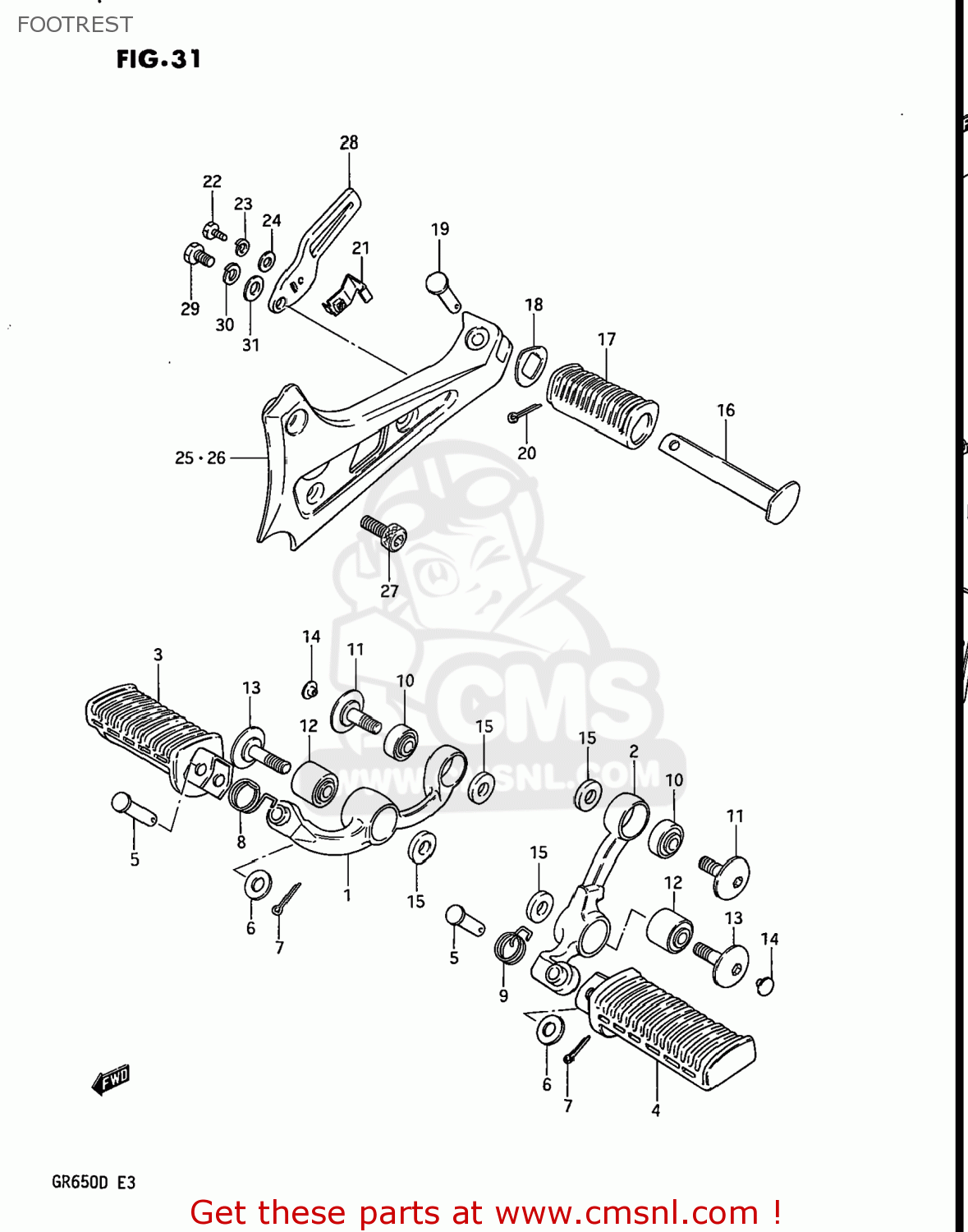

FOOTREST

ref

part #

description

quantity

1

4351015500
ref: 1

BAR,FRONT FOOTREST,RIGHT

€ 53.50

2

4352015500
ref: 2

BAR,FRONT FOOTREST,LEFT

€ 49.00

3

4355034500
ref: 3
43550-34501

RUBBER,FOOTREST

€ 36.00

4

4356034500
ref: 4
43560-34501

FOOTREST

€ 37.00

5

0920008002
ref: 5

PIN

€ 2.00

6

0832211088
ref: 6
08322-01087

WASHER

€ 2.00

7

0411120208
ref: 7
04111-2020A

PIN 20X20

€ 1.50

8

0944819014
ref: 8

SPRING

€ 6.00

9

0944819015
ref: 9

SPRING

€ 4.00

10

0931910036
ref: 10

BUSHING

€ 6.00

11

0910610016
ref: 11

BOLT 10X30

€ 0.00

12

0931910040
ref: 12

BUSHING

€ 9.00

13

0910610020
ref: 13

BOLT

€ 0.00

14

4357534500
ref: 14

CAP

€ 1.50

15

0916010075
ref: 15
09160-10125

WASHER (10.1X22X3.2)

€ 2.50

16-1

4361015500
ref: 16-1
43610-15502

BAR,REAR FOOTREST,RIGHT

€ 9.50

16-2

4362015500
ref: 16-2
43620-15502

BAR,REAR FOOTREST,LEFT

€ 10.00

17

4361215500
ref: 17
43612-15502

RUBBER,PILLION FOOTREST

€ 7.00

18

4363115500
ref: 18

WASHER,REAR FOOTREST RUBBER

€ 3.50

19

0920008029
ref: 19

PIN

€ 3.50

20

0411120208
ref: 20
04111-2020A

PIN 20X20

€ 1.50

21

4368015500
ref: 21

COVER, PILLION FOOTREST

€ 3.00

22

0110706168
ref: 22
01500-06167

BOLT, UPPER

€ 3.00

23

0832121068
ref: 23
08321-01067

LOCK WASHER

€ 2.50

24

0832221068
ref: 24
08322-01067

WASHER

€ 2.00

25

4381115500
ref: 25

BRACKET,MUFFLER,RIGHT

€ 0.00

26

4382115500
ref: 26

BRACKET,MUFFLER,LEFT

€ 0.00

27

0910610012
ref: 27
07130-1025B

BOLT

€ 3.50

28

4367115500
ref: 28

PLATE,FOOT GUIDE

€ 28.00

29

0110708168
ref: 29
01500-0816B

BOLT

€ 2.00

30

0832121088
ref: 30
08321-01087

LOCK WASHER

€ 2.00

31

0832211088
ref: 31
08322-01087

WASHER

€ 2.00

all assemblies
