AIR CLEANER (MODEL D)
GS1100ES 1983 (D) USA (E03)

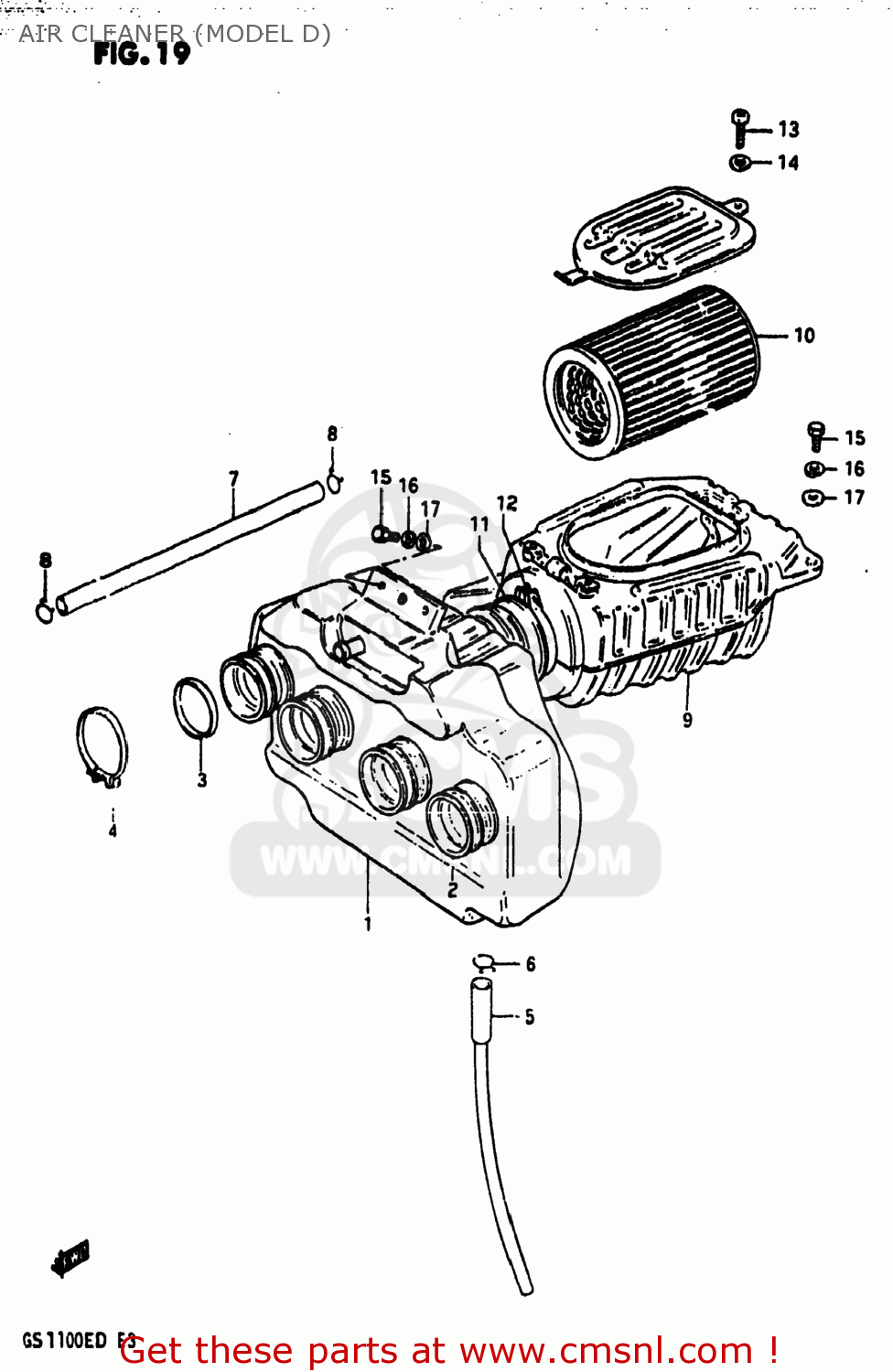

Air cleaner (model d) diagram GS1100ES 1983 (D) USA (E03)
AIR CLEANER (MODEL D) GS1100ES 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1371049330
ref: 1
CASE,AIR CHAMBER
€ 121.00
2
1388149020
ref: 2
13881-49021
TUBE,AIR CLEANER OUTLET
€ 16.00
3
1388547030
ref: 3
RING,CARBURETOR AIR INLET HOSE
€ 8.00
4
0940264306
ref: 4
09402-64203
CLAMP
€ 6.00
5
1387000010
ref: 5
13870-11458
DRAIN TUBE
€ 13.50
6
0940114301
ref: 6
CLIP
€ 2.00
7
0934311005
ref: 7
09352-11153-00B
HOSE
€ 30.00
8
0940114301
ref: 8
CLIP
€ 2.00
9
1370049860
ref: 9
CLEANER SET,RR AIR
€ 0.00
10
1378049310
ref: 10
FILTER ASSY
€ 29.50
11
1379549000
ref: 11
HOSE,AIR CLEANER
€ 34.50
12
1379649000
ref: 12
BAND
€ 6.00
13
0211205128
ref: 13
02112-05127
SCREW
€ 2.50
14
0832221058
ref: 14
08322-01057
WASHER
€ 2.50
15
0110706208
ref: 15
01500-06207
BOLT
€ 2.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
0832221068
ref: 17
08322-01067
WASHER
€ 2.00
