HEADLAMP (GS1100ESD)

GS1100ES 1983 (D) USA (E03)

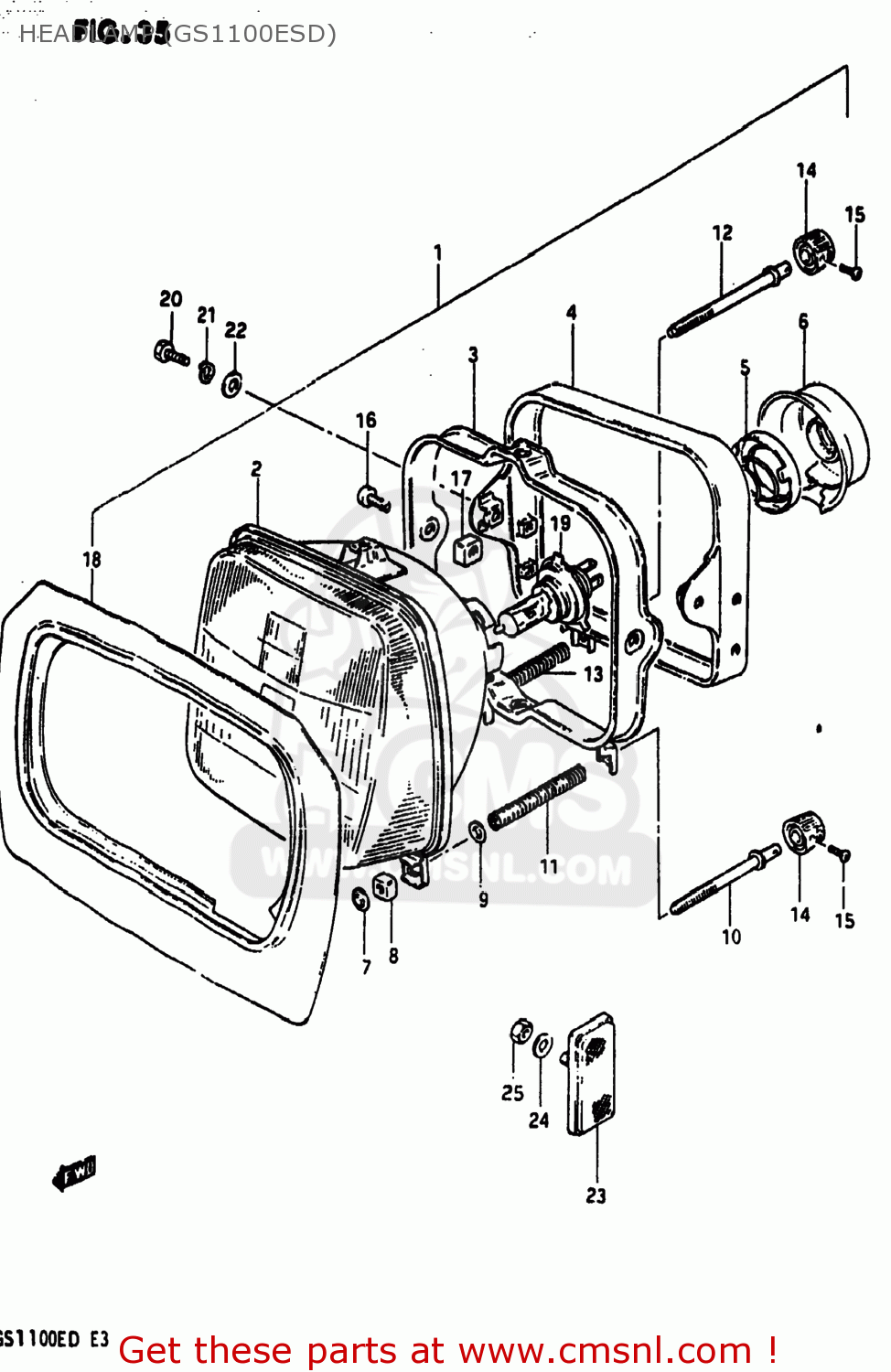

Headlamp (gs1100esd) diagram GS1100ES 1983 (D) USA (E03)

HEADLAMP (GS1100ESD) GS1100ES 1983 (D) USA (E03)

HEADLAMP (GS1100ESD) GS1100ES 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510049530999
ref: 1

LAMP ASSEMBLY,HEAD

€ 0.00

2

3512149530
ref: 2

LAMP UNIT

€ 0.00

3

3513049500
ref: 3

RING,MOUNTING

€ 30.00

4

3514149500
ref: 4

HOUSING,LAMP UNIT

€ 31.00

5

3513649200
ref: 5

HOLDER

€ 8.50

6

3517349200
ref: 6
35173-38A00

COVER,HEADLAMP SOCKET

€ 12.50

7

3515249330
ref: 7
09148-04010

NUT,HEADLAMP ADJUSTER

€ 2.00

8

3515249500
ref: 8

NUT,HEADLAMP ADJUSTER

€ 2.50

9

3515749320
ref: 9
09160-06073

WASHER

€ 2.00

10

3515149500
ref: 10
35151-49320

SCREW,HEADLAMP ADJUST

€ 16.50

11

3515449500
ref: 11

SPRING

€ 4.50

12

3515149320
ref: 12

SCREW,ADJUSTING

€ 16.50

13

3515449320
ref: 13

SPRING

€ 3.00

14

3516149320
ref: 14
35136-49331

KNOB,ADJUSTER

€ 6.00

15

0211203108
ref: 15
02112-03107

SCREW

€ 1.50

16

0211205128
ref: 16
02112-05127

SCREW

€ 2.50

17

3513545900
ref: 17

NUT

€ 2.50

18

3512949500
ref: 18

SHADE

€ 21.00

19

0947112060
ref: 19

BULB(12V60/55W,H4)

€ 8.00

20

0110706208
ref: 20
01500-06207

BOLT

€ 2.00

21

0832121068
ref: 21
08321-01067

LOCK WASHER

€ 2.50

22

0832221068
ref: 22
08322-01067

WASHER

€ 2.00

23

3595043430
ref: 23
35950-43431

REFLEX REFLECTOR ASSEMBLY

€ 12.00

24

0832221058
ref: 24
08322-01057

WASHER

€ 2.50

25

0831011058
ref: 25
08310-00057

NUT

€ 2.50
