CRANKCASE COVER (MODEL Z)
GS1100ES 1983 (D) USA (E03)

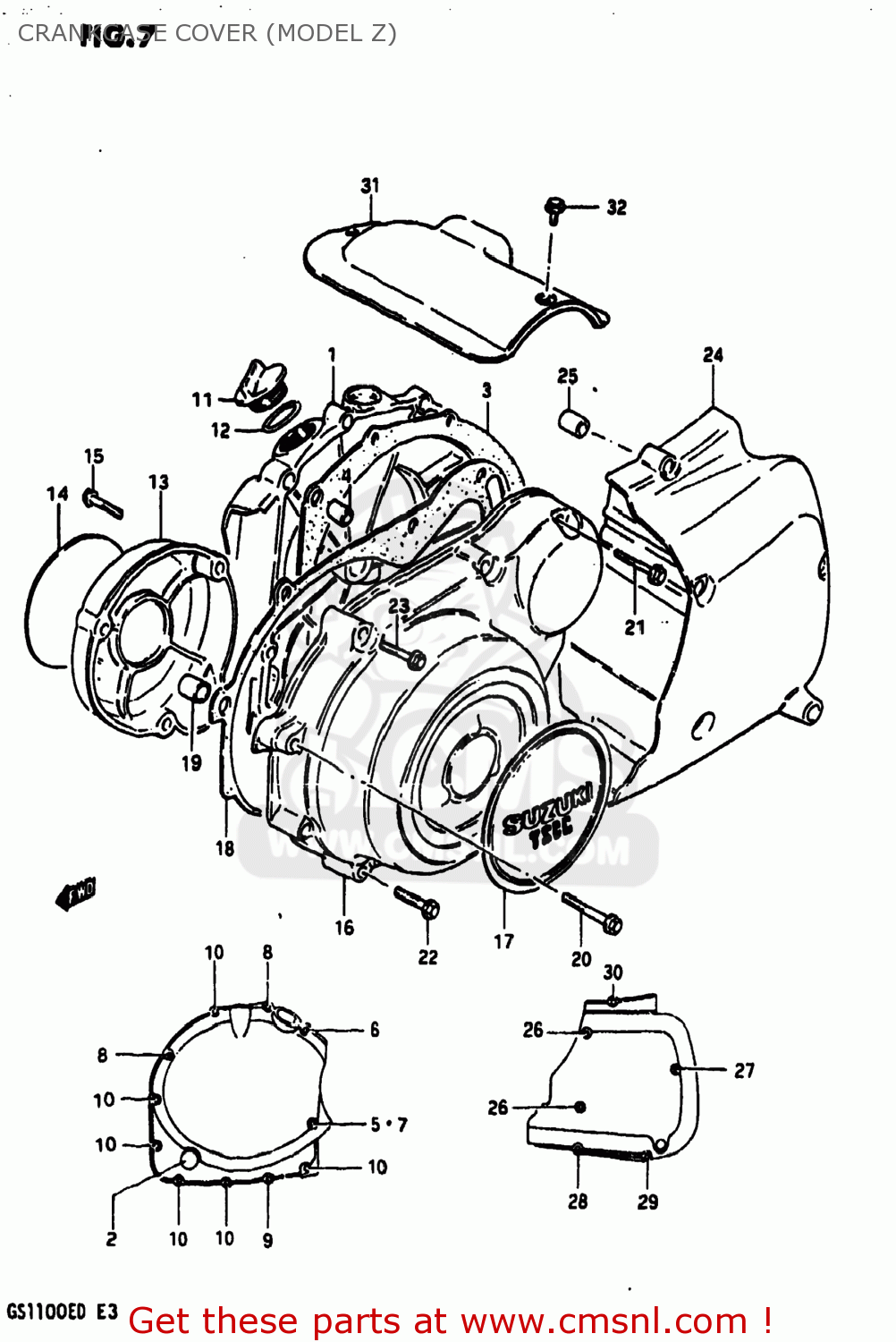

Crankcase cover (model z) diagram GS1100ES 1983 (D) USA (E03)
CRANKCASE COVER (MODEL Z) GS1100ES 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134049201
ref: 1
COVER,CLUTCH
€ 250.00
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
€ 13.00
3
1148249201
ref: 3
11482-49202-H17
GASKET,CLUTCH COVER (MCA)
€ 39.00
4
0421109129
ref: 4
PIN
€ 2.00
5
0916806009
ref: 5
09168-06023
GASKET (NAS)
€ 2.00
6
0154706408
ref: 6
01547-06407
BOLT (6X40)
€ 2.50
7
0154706358
ref: 7
01547-06357
BOLT (6X35)
€ 2.50
8
0154706308
ref: 8
01547-06307
BOLT (6X30)
€ 2.50
9
0154706258
ref: 9
01547-06257
BOLT
€ 2.50
10
0154706208
ref: 10
01547-06207
BOLT (6X20)
€ 2.50
11
0925930001
ref: 11
09200-30810
CAP
€ 8.50
12
0928032005
ref: 12
O RING(D:2.2,ID:32)
€ 2.00
13
1138149202
ref: 13
COVER,CONTACT BREAKER
€ 49.00
14
6823549500
ref: 14
EMBLEM
€ 21.50
15
0154705308
ref: 15
01547-05307
BOLT (5X30)
€ 2.00
16
1135149201
ref: 16
COVER,MAGNETO
€ 186.00
17
6823349500
ref: 17
EMBLEM,MAGNETO COVER
€ 23.50
18
1148349200
ref: 18
11483-49210
GASKET,MAGNETO COVER (MCA)
€ 13.00
19
0920613001
ref: 19
04211-13189
PIN
€ 2.50
20
0154706458
ref: 20
01547-06457
BOLT
€ 2.50
21
0154706408
ref: 21
01547-06407
BOLT (6X40)
€ 2.50
22
0154706358
ref: 22
01547-06357
BOLT (6X35)
€ 2.50
23
0154706308
ref: 23
01547-06307
BOLT (6X30)
€ 2.50
24
1136049201
ref: 24
COVER,ENGINE SPROCKET
€ 127.00
25
0421109129
ref: 25
PIN
€ 2.00
26
0154706958
ref: 26
01547-06957
BOLT 6X95
€ 4.00
27
0154706858
ref: 27
01547-06857
BOLT (6X85)
€ 2.50
28
0154706708
ref: 28
01547-06707
BOLT (6X70)
€ 2.50
29
0154706558
ref: 29
01547-06557
BOLT (6X55)
€ 2.50
30
0154706308
ref: 30
01547-06307
BOLT (6X30)
€ 2.50
31
1138249002
ref: 31
COVER,STARTER MOTOR
€ 43.00
32
0154705088
ref: 32
01547-05087
BOLT
€ 2.00
