TURN SIGNAL LAMP (GS1100ESD)
GS1100ES 1983 (D) USA (E03)

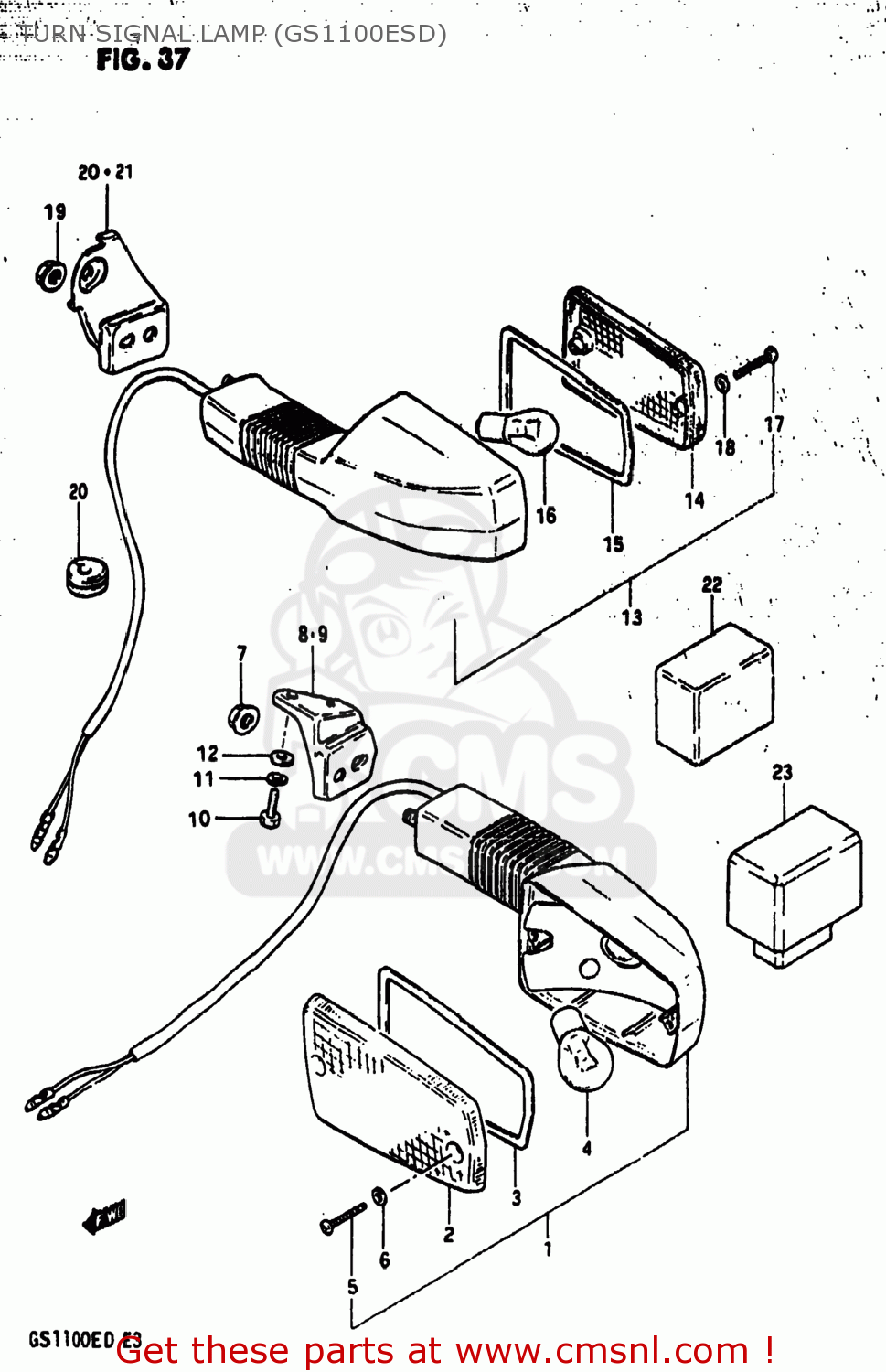

Turn signal lamp (gs1100esd) diagram GS1100ES 1983 (D) USA (E03)
TURN SIGNAL LAMP (GS1100ESD) GS1100ES 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560149510
ref: 1
35601-49511
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 83.50
2
3561249510
ref: 2
LENS,TURN SIGNAL LAMP
€ 9.00
3
3561343410
ref: 3
GASKET (NAS)
€ 3.50
4
0947112033
ref: 4
BULB 12V35/35W
€ 6.00
5
0321104208
ref: 5
03211-04207
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0831626088
ref: 7
08316-20087
NUT
€ 3.00
8
3567131300
ref: 8
BRACKET,FRONT TURN SIGNAL
€ 4.50
9
3568131300
ref: 9
BRACKET,FRONT TURN SIGNAL
€ 5.50
10
0110708168
ref: 10
01500-0816B
BOLT
€ 2.00
11
0832121088
ref: 11
08321-01087
LOCK WASHER
€ 2.00
12
0832211088
ref: 12
08322-01087
WASHER
€ 2.00
13
3560143430
ref: 13
35603-31331
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 82.50
14
3561243410
ref: 14
35612-00A80
LENS
€ 11.00
15
3561343410
ref: 15
GASKET (NAS)
€ 3.50
16
0947112006
ref: 16
BULB(12V23W,STANLEY,A4577A)
€ 4.00
17
0321104208
ref: 17
03211-04207
SCREW
€ 1.50
18
3562743010
ref: 18
GASKET (NAS)
€ 2.00
19
0831626088
ref: 19
08316-20087
NUT
€ 3.00
20
3562149500
ref: 20
BRACKET,REAR TURN SIGNAL
€ 7.00
21
3564149500
ref: 21
BRACKET,REAR TURN SIGNAL
€ 6.00
22
3861049231
ref: 22
RELAY ASSY,TURNSIGNAL
€ 71.00
23
3883049500
ref: 23
38830-49X00
UNIT,TURN SIGNAL CONTROL
€ 269.50
