SEAT TAIL COVER (MODEL Z)
GS1100ES 1983 (D) USA (E03)

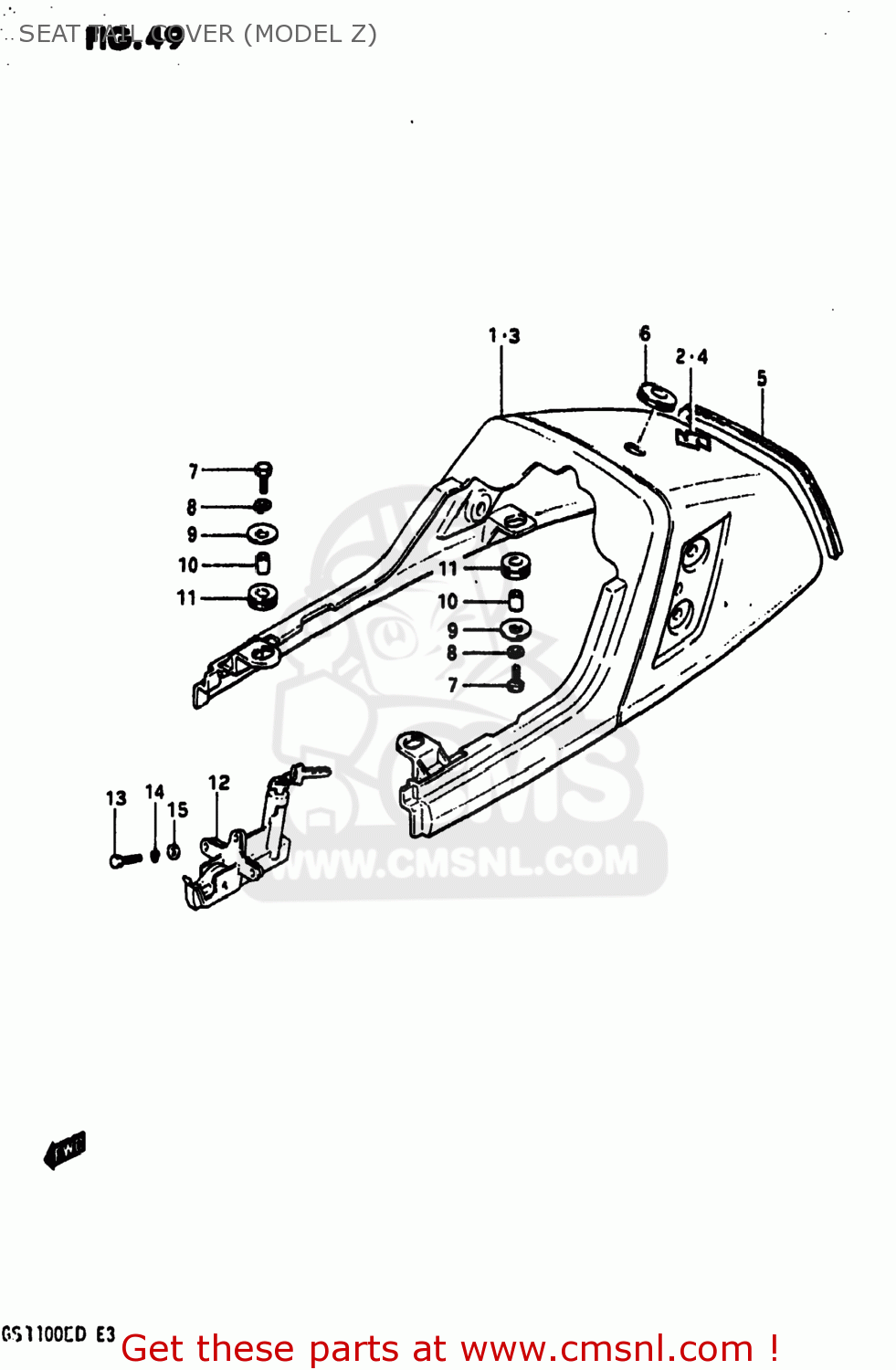

Seat tail cover (model z) diagram GS1100ES 1983 (D) USA (E03)
SEAT TAIL COVER (MODEL Z) GS1100ES 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
455114950014B
ref: 1
45511-49500
COVER,SEAT TAIL
€ 120.50
2
681664950067U
ref: 2
EMBLEM (S)
€ 4.50
3
455114950010S
ref: 3
45511-49500
COVER,SEAT TAIL
€ 120.50
4
681664950082Z
ref: 4
EMBLEM (S)
€ 4.00
5
4556249500
ref: 5
RUBBER,BLIND,SEAT TAIL COVER
€ 20.00
6
4552249200
ref: 6
GROMMET,SEAT LOCK HOLE
€ 5.50
7
0110706208
ref: 7
01500-06207
BOLT
€ 2.00
8
0832121068
ref: 8
08321-01067
LOCK WASHER
€ 2.50
9
0916006012
ref: 9
09160-06054
WASHER(6,5X22X1.6)
€ 2.00
10
0918007004
ref: 10
SPACER(6.5X10.5X12)
€ 2.50
11
0932010011
ref: 11
09320-10502
CUSHION
€ 5.50
12
9570049830
ref: 12
LOCK SET,SEAT
€ 81.50
13
0110706128
ref: 13
01500-06127
BOLT
€ 2.00
14
0832121068
ref: 14
08321-01067
LOCK WASHER
€ 2.50
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
