REAR WHEEL (MODEL D)
GS1100ES 1983 (D) USA (E03)

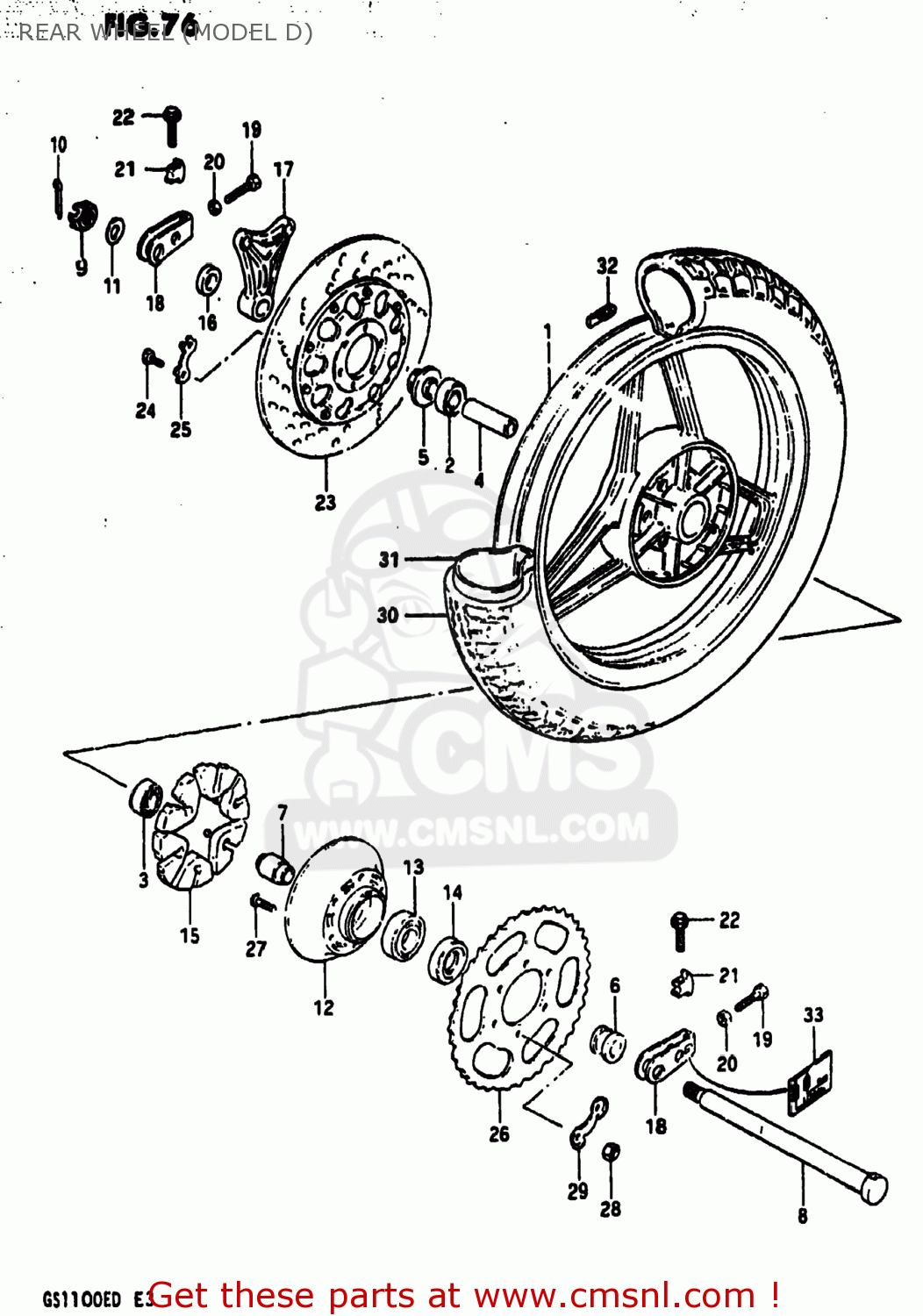

Rear wheel (model d) diagram GS1100ES 1983 (D) USA (E03)
REAR WHEEL (MODEL D) GS1100ES 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411149500291
ref: 1
CASTING WHEEL,REAR 2.50
€ 633.50
2
0813362047
ref: 2
BEARING WHEEL REAR(20X47X14)
€ 22.50
3
0815362047
ref: 3
09262-20042
BEARING, LH
€ 21.00
4
0918020062
ref: 4
SPACER(20.5X28X88)
€ 11.50
5
6474045001
ref: 5
64740-45002
SPACER,REAR AXLE
€ 15.00
6
0918020054
ref: 6
SPACER(20X33X28.3)
€ 13.00
7
6473331000
ref: 7
64733-3100V
SPACER,REAR HUB BEARING
€ 20.00
8
6471149000
ref: 8
64711-4900V
AXLE,REAR
€ 59.00
9
0831431188
ref: 9
08314-3118A
NUT 18MM
€ 5.00
10
0411140308
ref: 10
04111-4030A
PIN,COTTER
€ 1.50
11
0916019008
ref: 11
WASHER(19X34X4)
€ 3.00
12
6461131001
ref: 12
64611-31003
DRUM,REAR SPROCKET MOUNT
€ 140.00
13
0811363050
ref: 13
09262-25073
BEARING
€ 21.50
14
0928533001
ref: 14
SEAL,OIL(33X62X7)
€ 20.00
15
6465131000
ref: 15
64651-31001
ABSORBER,REAR HUB SHOCK
€ 9.50
16
0918020060
ref: 16
SPACER(20X38X12)
€ 6.50
17
6972147011
ref: 17
BRACKET,RR,CALIPER
€ 29.00
18
6141049500
ref: 18
ADJUSTER,CHAIN
€ 12.50
19
0910408023
ref: 19
BOLT 8X35
€ 2.00
20
0831012088
ref: 20
08310-00087
NUT
€ 2.00
21
6143331000
ref: 21
61433-3100V
SUPPORTER,CHAIN ADJUST
€ 22.50
22
0151708608
ref: 22
01550-08607
BOLT
€ 3.50
23
5921018450
ref: 23
DISC,RR BRAKE
€ 446.00
24
0910008094
ref: 24
BOLT(8X30)
€ 2.50
25
0916908016
ref: 25
WASHER
€ 3.50
26
6451149001
ref: 26
64511-49002
SPROCKET,REAR
€ 114.00
27
0911910002
ref: 27
09105-10001
BOLT
€ 3.50
28
0914010026
ref: 28
09140-10026-XC0
NUT
€ 2.00
29
0916910007
ref: 29
WASHER
€ 7.50
30-1
6510049230
ref: 30-1
TIRE 4.50V17
€ 258.00
30-2
6510049510
ref: 30-2
65100-49230
TIRE
€ 258.00
31
6520049010
ref: 31
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
32-1
5541149300
ref: 32-1
55412-17G00
BALANCER,WHEEL
€ 7.00
32-2
5541249300
ref: 32-2
BALANCER,WHEEL (30G)
€ 4.00
33
6837749000
ref: 33
LABEL,CHAIN WEAR INDICATOR
€ 3.50
