FRAME COVER (GS1100ESD)

GS1100ES 1983 (D) USA (E03)

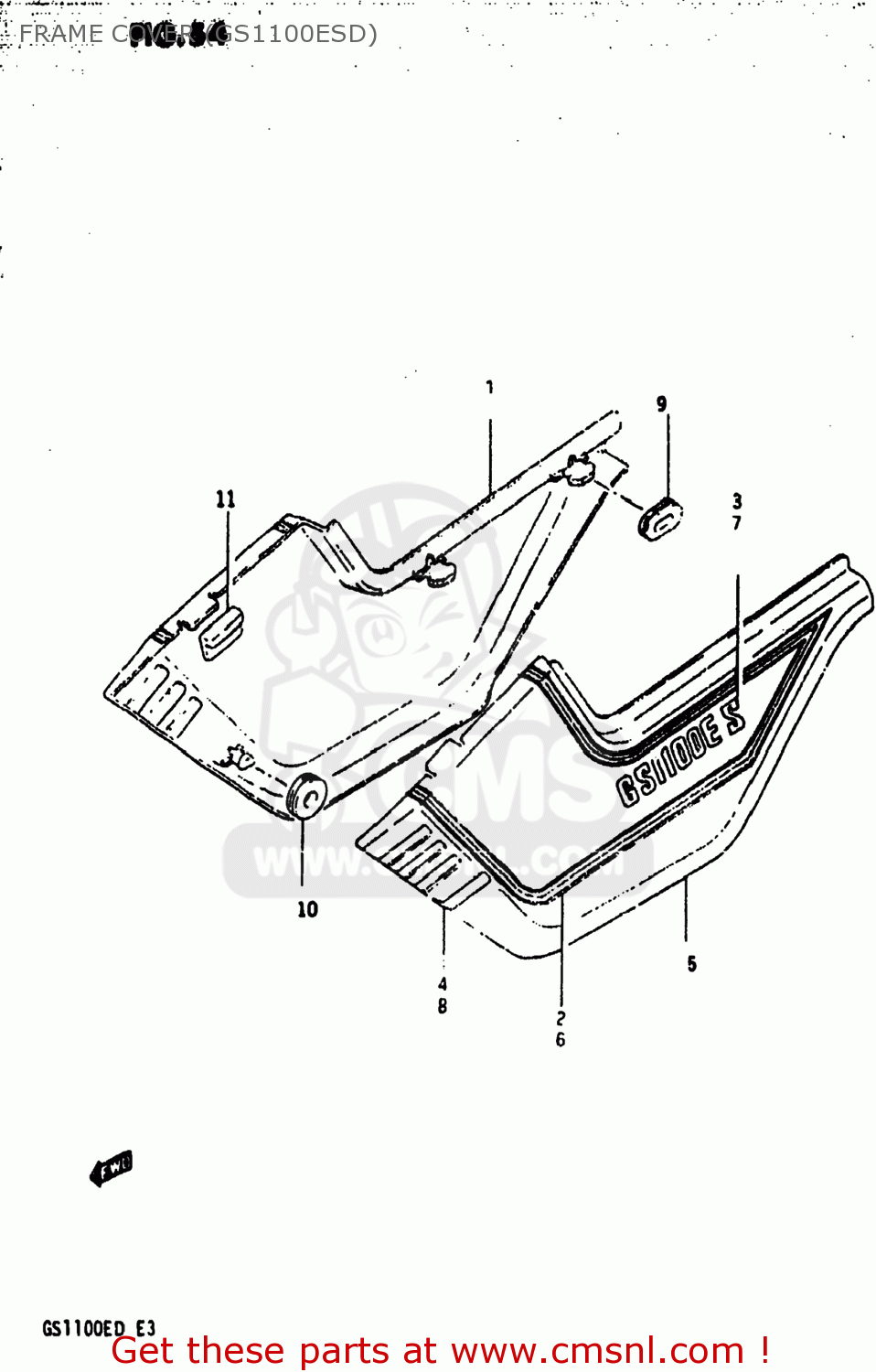

Frame cover (gs1100esd) diagram GS1100ES 1983 (D) USA (E03)

FRAME COVER (GS1100ESD) GS1100ES 1983 (D) USA (E03)
FRAME COVER (GS1100ESD) GS1100ES 1983 (D) USA (E03)
FRAME COVER (GS1100ESD) GS1100ES 1983 (D) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
471104958091J
ref: 1
47111-49500
COVER,FRAME,RIGHT
€ 77.00
2
681304951093K
ref: 2
TAPE SET,FRAME COVER,RIGHT
€ 23.50
3
681314953073H
ref: 3
EMBLEM,FRAME COVER
€ 9.50
4
6813449500
ref: 4
LABEL, DENT
€ 0.00
5
472104958091J
ref: 5
47211-49500
COVER,FRAME,LEFT
€ 72.50
6
681404951093K
ref: 6
TAPE SET,FRAME COVER
€ 0.00
7
681314953073H
ref: 7
EMBLEM,FRAME COVER
€ 9.50
8
6814449500
ref: 8
EMBLEM,FRAME COVER,CENTER
€ 3.00
9
0932003005
ref: 9
09320-03004
CUSHION
0932003005
€ 2.00
10
0932008018
ref: 10
CUSHION
0932008018
€ 4.00
11
4711745000
ref: 11
CUSHION,FRAME COVER
4711745000
€ 1.50
