STARTING MOTOR (GS1100 ESD)
GS1100ES 1983 (D) USA (E03)

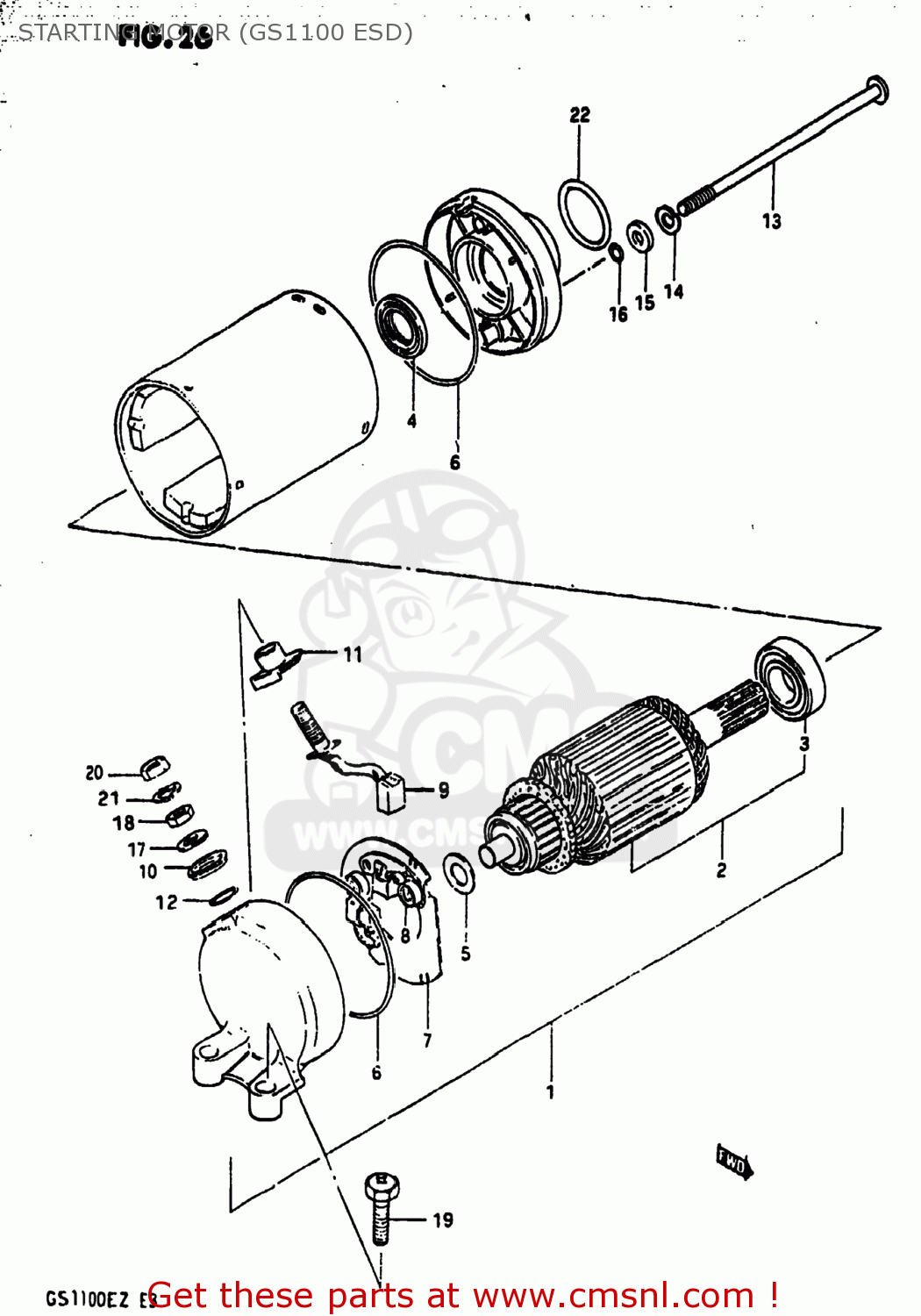

Starting motor (gs1100 esd) diagram GS1100ES 1983 (D) USA (E03)
STARTING MOTOR (GS1100 ESD) GS1100ES 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110049500
ref: 1
31100-49500-H17
MOTOR ASSEMBLY,STARTING
€ 704.50
2
3131049500
ref: 2
31310-49501-H17
ARMATURE
€ 76.00
3
3115545010
ref: 3
31155-45C00
BEARING
€ 21.00
4
3115349210
ref: 4
SEAL,OIL
€ 15.00
5
3136147010
ref: 5
31170-43400
SHIM,ARMATURE
€ 3.50
6
3126444110
ref: 6
O RING
€ 8.00
7
3113244110
ref: 7
31132-27A01
HOLDER,BRUSH
€ 47.00
8
3113565010
ref: 8
SPRING
€ 3.00
9
3113038300
ref: 9
BRUSH SUB ASSY,STARTING MOTOR
€ 12.50
10
3117238300
ref: 10
BUSHING
€ 4.00
11
3117138300
ref: 11
BUSH,B
€ 5.50
12
3114338300
ref: 12
O RING
€ 3.50
13
3128105300
ref: 13
31281-88C00
BOLT
€ 8.50
14
0832121058
ref: 14
08321-0105A
LOCK WASHER
€ 2.00
15
3116138300
ref: 15
WASHER
€ 2.50
16
3115638300
ref: 16
O RING
€ 3.00
17
0832221068
ref: 17
08322-01067
WASHER
€ 2.00
18
0831022068
ref: 18
08310-00067
NUT 6MM
€ 2.50
19
0912806024
ref: 19
09103-06212
SCREW (6X25)
€ 2.50
20
0831022068
ref: 20
08310-00067
NUT 6MM
€ 2.50
21
0832121068
ref: 21
08321-01067
LOCK WASHER
€ 2.50
22
0928024003
ref: 22
O RING(D:3,ID:24.5)
€ 2.00
