STEERING STEM (GS1100ESD)
GS1100ES 1983 (D) USA (E03)

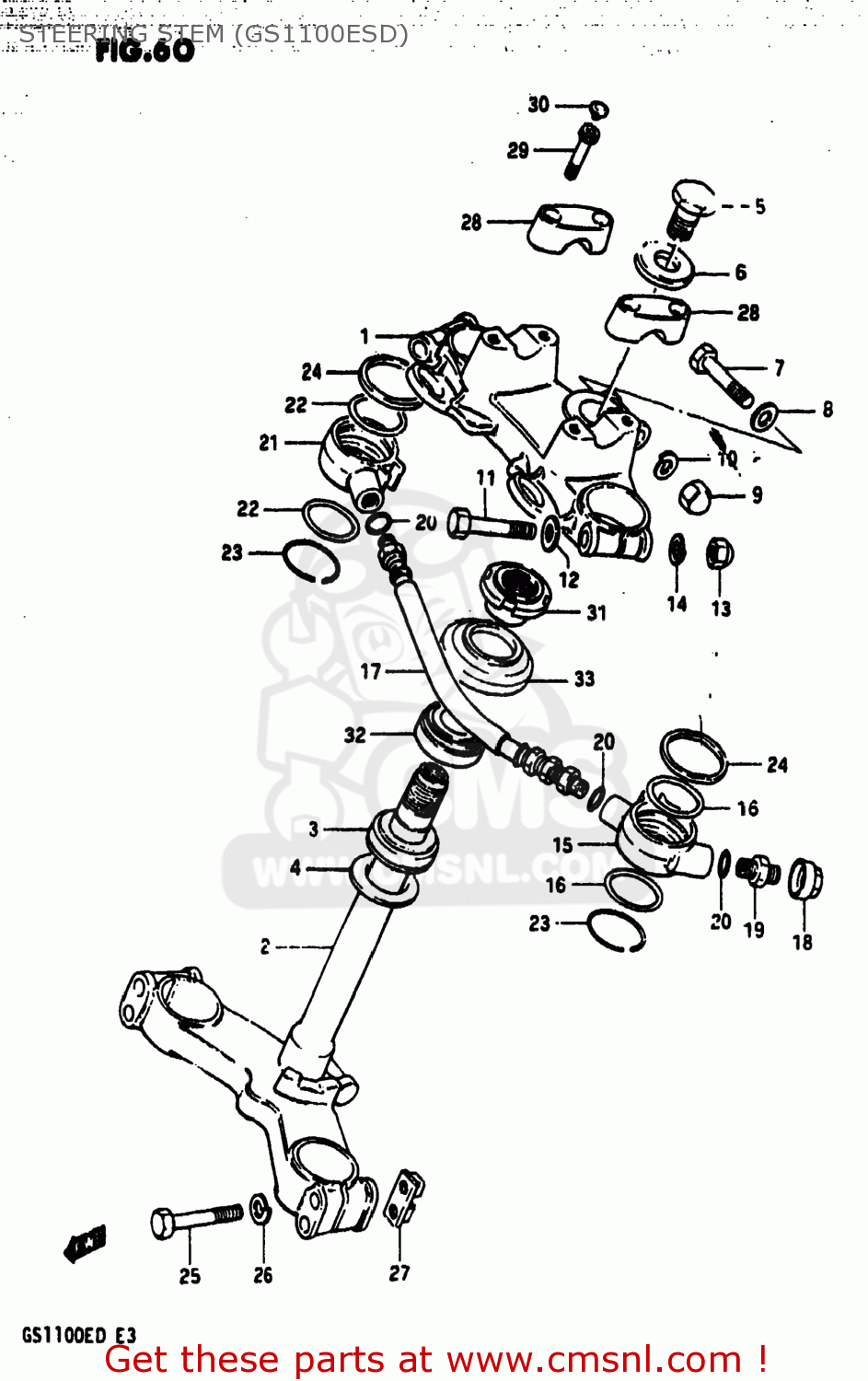

Steering stem (gs1100esd) diagram GS1100ES 1983 (D) USA (E03)
STEERING STEM (GS1100ESD) GS1100ES 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5131149500291
ref: 1
51311-49400-291
HEAD,STEERING STEM
€ 198.50
2
5141049520291
ref: 2
STEM,STEERING
€ 140.00
3
0926530005
ref: 3
09265-30009
BEARING
€ 49.50
4
0821130402
ref: 4
09181-30184
WASHER,THRUST
€ 4.00
5
5135349300
ref: 5
51352-31305
SUZUKI
€ 11.50
6
5135649300
ref: 6
51356-43530
SUZUKI
€ 3.50
7
0110708505
ref: 7
01500-0850B
BOLT
€ 3.00
8
0832221085
ref: 8
08322-0108A
WASHER
€ 1.50
9
0831311085
ref: 9
08313-10083
NUT,M8X1.25X12
€ 2.00
10
0832121085
ref: 10
08321-0108A
LOCK WASHER
€ 2.50
11
0110710555
ref: 11
01500-1055A
BOLT 10X55
€ 3.50
12
0832221105
ref: 12
08322-0110A
WASHER 10MM
€ 2.50
13
0831311105
ref: 13
08313-1010A
NUT 10MM
€ 2.00
14
0832121105
ref: 14
08321-0110A
LOCK WASHER
€ 3.00
15
5143249540
ref: 15
JOINT,AIR,LEFT
€ 29.50
16
5143649540
ref: 16
51356-34370
O RING
€ 5.00
17
5143349540
ref: 17
JOINT,AIR TUBE
€ 31.00
18
5129449000
ref: 18
CAP,VALVE
€ 22.50
19
5129349470
ref: 19
VALVE,FRONT FORK AIR
€ 8.50
20
5111714210
ref: 20
09280-06005
O-RING
€ 2.50
21
5143149540
ref: 21
JOINT,AIR,RIGHT
€ 22.50
22
5143649540
ref: 22
51356-34370
O RING
€ 5.00
23
5143849540
ref: 23
SNAP RING
€ 2.00
24
5155349540
ref: 24
CUSHION,HEADLAMP BRACKET
€ 3.00
25
0110708555
ref: 25
01500-0855B
BOLT 8X55
€ 3.00
26
0832121105
ref: 26
08321-0110A
LOCK WASHER
€ 3.00
27
5145849000
ref: 27
NUT,FR FORK INNER TUBE
€ 5.00
28
5621149500291
ref: 28
56211-26D00
HOLDER,HANDLEBAR
€ 26.00
29
0910608013
ref: 29
07130-0830A
BOLT
€ 3.00
30
0925006004
ref: 30
CAP(OD:14.5)
€ 1.50
31
5163134200
ref: 31
NUT,STEERING STEM
€ 23.00
32
0926525008
ref: 32
09265-25019
TAPER,ROLLER BEARING
€ 48.50
33
5164340502
ref: 33
DUST SEAL,STEERING UPR
€ 8.00
