CYLINDER
GS1100G 1983 (D) USA (E03)

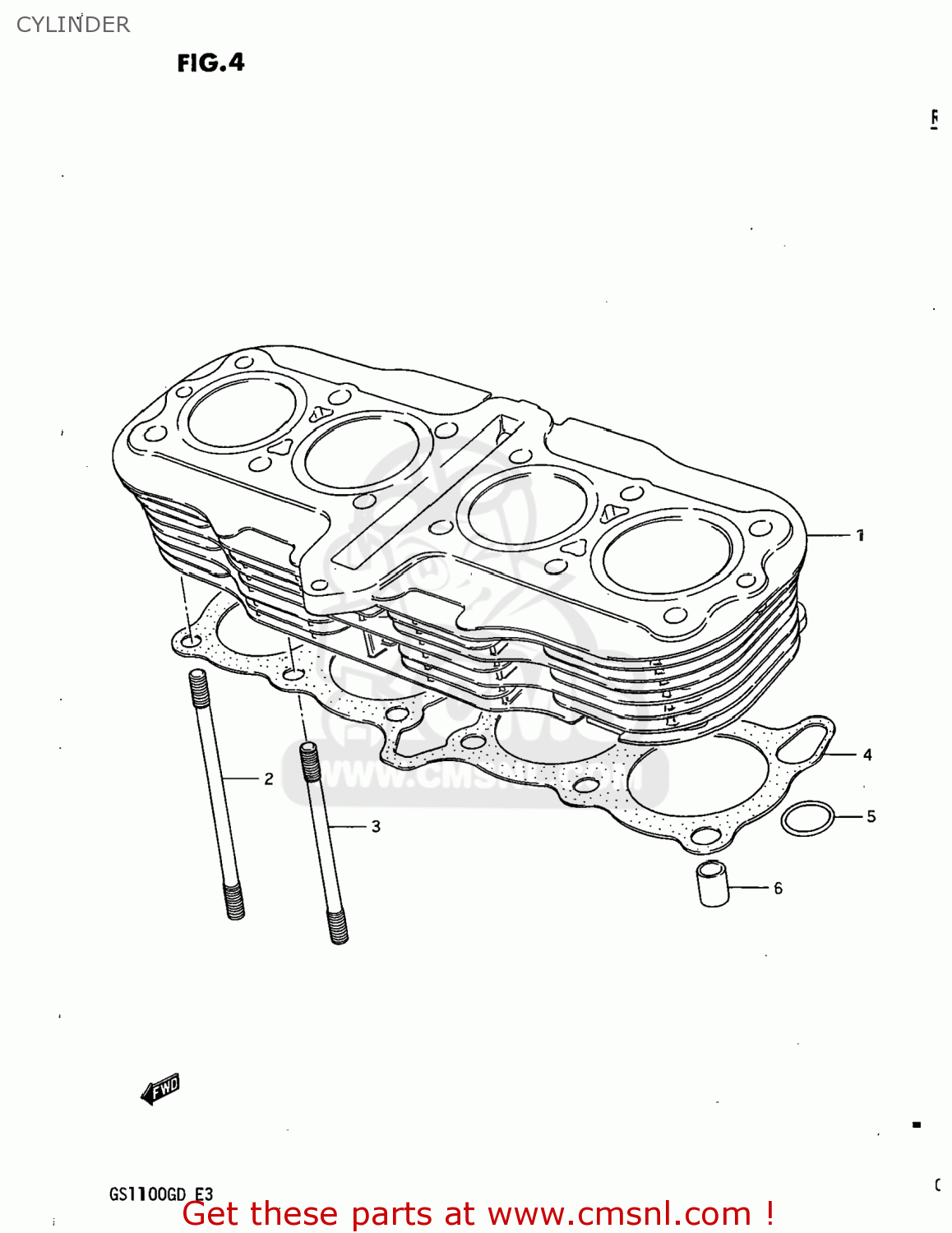

Cylinder diagram GS1100G 1983 (D) USA (E03)
CYLINDER GS1100G 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121049400
ref: 1-1
CYLINDER
€ 915.50
1-2
1121049410
ref: 1-2
CYLINDER
€ 0.00
2
0910810027
ref: 2
BOLT,STUD
€ 12.00
3
0910810028
ref: 3
09108-10112
STUD
€ 9.00
4-1
1124149400
ref: 4-1
11241-49401-H17
GASKET,CYLINDER (MCA)
€ 56.50
4-2
1124149401
ref: 4-2
11241-49401-H17
GASKET,CYLINDER (MCA)
€ 56.50
5-1
0928021004
ref: 5-1
O RING(D:3.05)
€ 4.00
5-2
0928021011
ref: 5-2
O RING(D:3.5)
€ 3.50
6
0920613001
ref: 6
04211-13189
PIN
€ 2.50
